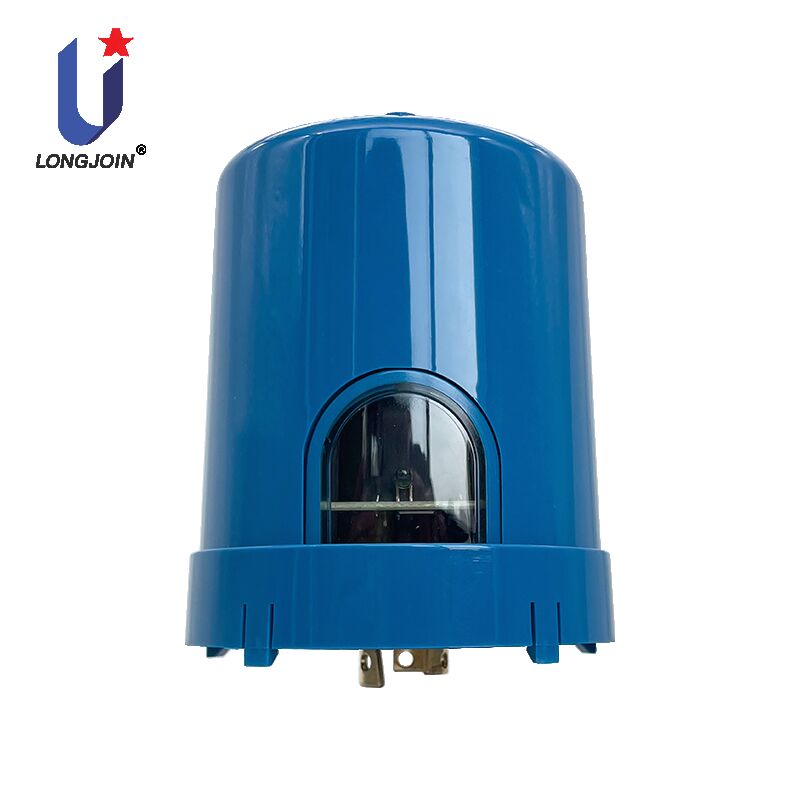

Smart IoT Dimming Photocontrol Zigbee 485 Master Gateway Collector OTA Firmware Update
|
Smart IoT Dimming Photocontrol Zigbee 485 Master Gateway Collector OTA Firmware Update
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-246CR |
Product Details
Rated Voltage:
120~277VAC
Dimming Output:
0~10VDC
Wireless Communication:
RS485(up) Zigbee(down)
Operate Levels:
Turn-On＜100Lx，Turn-Off＞150Lx / Per Client Request
Certifications:
RoHS,UL,CE
Real-world Scenarios:
Municipal Streetlight Networks
Highlight:
10VDC NEMA Controller
,Zigbee 485 NEMA Controller
,Gateway Dimming Photocontrol
Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description
Smart IoT Dimming Photocontrol Zigbee 485 Master Gateway Collector OTA Firmware Update
JL-246CR Smart IoT Dimming Photocontrol Zigbee-485 Master Gateway / Collector
Product Summary
JL-246CR photocontrol can apply to independent control application or system control application, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on. This product consists a ZigBee communication module as well as a RS485 communication module to allow its ZigBee group remoted with a smart IoT management system.
Product Dimensions
Product Features
- ANSI C136.41 Twist-lock
- 0~10V Dimming
- Surge protection level: 6KV/3KA differential mode
- Sandwich cover for Long Life
- Multi-Volts Application
- IR-fiRS485red Phototransistor
Technical Specifications
| Model No. | JL-246CR |
|---|---|
| Rated Voltage | 120~277VAC |
| Applicable Voltage Range | 105~305VAC |
| Rated Frequency | 50/60Hz |
| Dimming Output | 0~10VDC |
| Wireless Communication (up) | RS485 |
| Wireless Communication (down) | Zigbee |
| Spectral Acquisition Range | 350~1100nm; Peak wavelength 590nm |
| Rated Loading | 1000W Tungsten; 1000VA Ballast; 8A@120V 5A@208-277 e-Ballast |
| Operate Levels | Turn-On＜100Lx,Turn-Off＞150Lx / per client request |
| Power Consumption | 1.2W static,3.4W dynamic |
| Operating Temperature | -40℃~70℃ |
| Operating Humidity | 96% |
| Failure mode | Fail-On |
| Shell material | PC+PC |
| High protection | Double Shell |
| Surge protection level | 6KV/3KA differential mode |
| IP level | Default IP66 |
| Factory Settings | Remote control+Adaptive mode |
| FCC | ● |
| Certifications | |
| Criterion | IEC61000-4-5;IEC61000-4-2;IEC61000-4-3; IEC61000-4-6;GB/T 17743-2017;IEC61000-4-4; IEC61000-4-11;IEC61000-3-2;GB/T2423.10-2008; UL94-V0; |
Frequently Asked Questions
Q1: What is a Smart IoT Dimming Photocontrol with Zigbee 485 Master Gateway Collector and OTA Firmware Update?
A: It is an intelligent lighting control device that integrates Zigbee and RS485 communication, acts as a master gateway collector for networking multiple dimming photocontrols, and supports remote OTA firmware updates.
Q2: What is the function of the Zigbee & RS485 dual-mode master gateway?
A: It serves as a central coordinator to build a local wireless & wired hybrid network, connecting and managing a large number of photocontrols and dimming devices for stable data collection and unified control.
Q3: How does OTA firmware update benefit this gateway collector?
A: OTA allows wireless, remote firmware upgrades without on-site operation, improving device stability, adding new functions, and fixing bugs remotely to reduce maintenance cost.
Q4: What advantages does RS485 bring to the IoT dimming system?
A: RS485 supports long-distance wired transmission, strong anti-interference, and stable networking in industrial and outdoor environments, complementing the flexibility of Zigbee wireless.
Q5: In which lighting scenarios is this master gateway most suitable?
A: It is ideal for large-scale intelligent lighting projects such as urban roads, parks, campuses, industrial parks, and commercial complexes that require centralized control and networking.
