Twist Lock Intelligent Photocontrol DALI Constant Illumination Midnight Night OTA Firmware Update
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-253 |
Intelligent Twist Lock
,Midnight Night Twist Lock
,277V Twist Lock

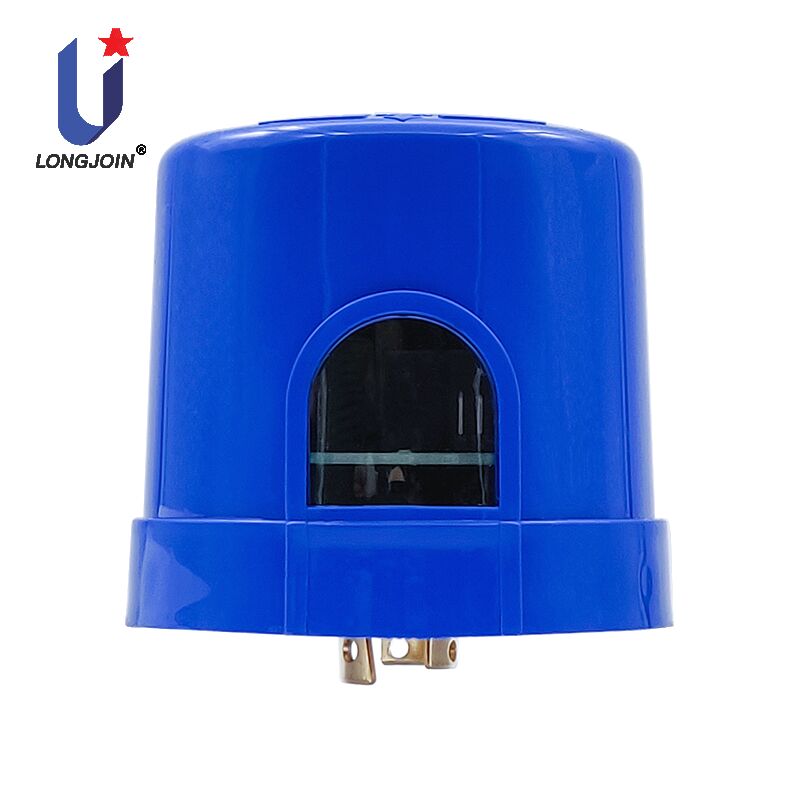

The JL-253 Twist-Lock Intelligent Photocontrol DALI is designed for automatic control of dimmable LED street lighting based on ambient natural lighting levels. Featuring microprocessor circuits with IR-filtered phototransistor and heavy-duty surge protection, this product ensures reliable performance in demanding outdoor environments.
- ANSI C136.41 Twist-lock compatibility
- DALI Dimming capability
- Built-in MOV 40kA Surge Arrester
- Optional sandwich cover for extended lifespan
- Multi-voltage application support
- IP65 Ready / IP67 Optional rating
- IR-filtered phototransistor for accurate sensing
- Constant On/Off Dimming functionality
- Midnight Dimming mode
- LED Decay Compensation technology
| Model No. | JL-253 |
|---|---|
| Rated Voltage | 120~277VAC |
| Applicable Voltage Range | 105~305VAC |
| Rated frequency | 50/60Hz |
| Dimming Output | DALI |
| Spectral Acquisition Range | 350~1100nm; Peak wavelength 590nm |
| Rated Loading | 1000W Tungsten, 1800VA Ballast, 8A e-Ballast @120VAC/5A e-Ballast @208-277VAC |
| Operate Levels | Turn-On＜100Lx, Turn-Off＞100Lx / per client request |
| Typical Time Delay | 5s |
| Ambient Temperature | -40°C ~ +70°C |
| Related Humidity | 96% |
| Fail Mode | Fail-On |
| Shell material | PC+PC |
| High protection | Double Shell |
| Lightning Protection | 4KV/2KA |
| Surge protection | MYL1-40K511 |
| IP level | IP67 |
| Factory Settings | Illuminance/Delayed/Reduction Duration Customizable |
| Certifications | |
It is an intelligent twist-lock photocontrol that supports DALI dimming and constant illumination control, equipped with a dedicated midnight night mode for intelligent street and outdoor lighting.
The twist lock design enables fast installation, stable electrical connection, good waterproof and anti-loosening performance, making it widely suitable for standard street light and garden light sockets.
It detects ambient brightness in real time via the photosensitive probe and automatically adjusts output brightness through DALI protocol to maintain stable and consistent illumination on the ground.
Midnight night mode automatically dims the lights to a lower brightness level during late night hours, which greatly reduces energy consumption while maintaining basic road safety and lighting demand.
It is mainly used in street lighting, road lamps, garden lighting, community lighting and other outdoor public lighting that requires intelligent dimming and energy-saving operation.
