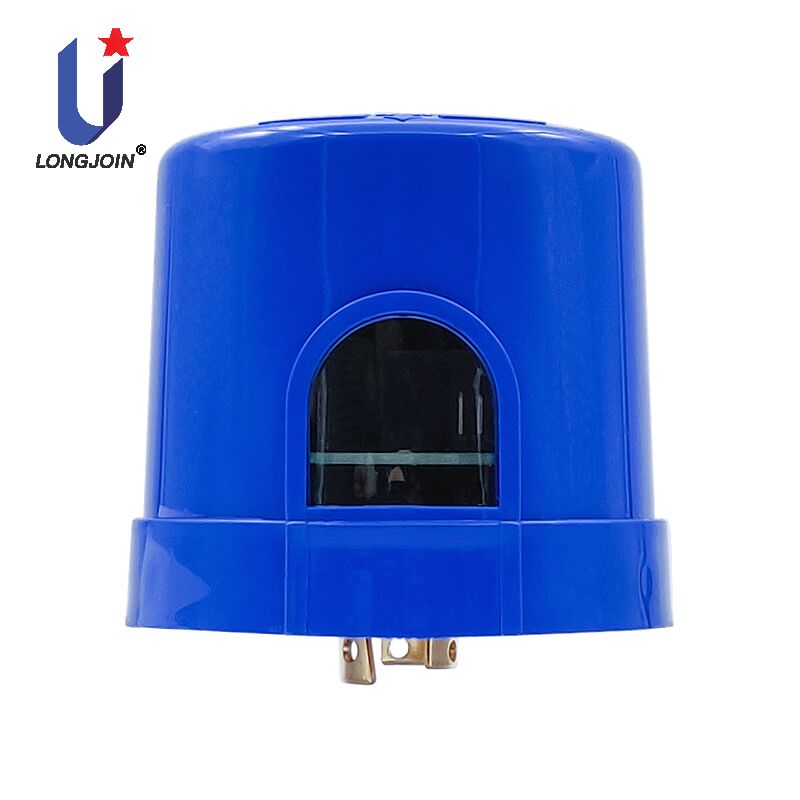

Twist Lock Intelligent Photocontrol DALI Constant Illumination Midnight Night Real-time Fault Alert

Twist Lock Intelligent Photocontrol DALI Constant Illumination Midnight Night Real-time Fault Alert

Place of Origin China
Brand Name LongJoin
Model Number JL-252
Product Details
Rated Voltage:
120~277VAC
Dimming Output:
DALI
Operate Levels:
Turn-On＜100Lx，Turn-Off＞100Lx / Per Client Request
Fail Mode:
Fail-On
Certifications:
RoHS,UL,CE
Real-world Scenarios:
Major Traffic Arteries
Highlight:

JL-252 NEMA Controller

,

Midnight Night NEMA Controller

,

Midnight Night twist lock

Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description

JL-252 Twist-Lock Intelligent Photocontrol DALI, Constant illumination, Midnight night

Product Summary

The dimming photocontrol JL-252 is applicable to control the dimmable LED street lighting (DALI) automatically in accordance with the ambient natural lighting level.

This product is designed with microprocessor circuits with IR-filtered phototransistor.

A heavy duty surge arrester (MOV) is provided to protect the lamp from inrush current as well as impulse by lightening.

Further, a preset 10 seconds time-delay prevents excessive operation due to spotlight or lightning during the night time.

It provides constant reliability as the relay has sufficient work life of over 10,000 cycles, and offers extra long work life when a sandwich cover option is applied together.

This product provides twist lock terminals meeting the requirements of ANSI C136.41 as well as being listed by UL under the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting ANSI/UL773.


Product size

Twist Lock Intelligent Photocontrol DALI Constant Illumination Midnight Night Real-time Fault Alert 0

Product Features

  • ANSI C136.41 Twist-lock

  • DALI Dimming

  • MOV 40kA Surge Arrester Built-in

  • Optional Sandwich cover for Long Life

  • Multi-Volts Application

  • IP65 Ready / IP67 Optional

  • IR-filtered Phototransistor

  • Constant On/Off Dimming

  • Midnight Dimming


Specifications


Model No.

JL-252

Rated Voltage

120~277VAC

Applicable Voltage Range

105~305VAC

Rated frequency

50/60Hz

Dimming Output

DALI

Spectral Acquisition Range

350~1100nm；Peak wavelength 590nm

Rated Loading

1000W Tungsten, 1800VA Ballast,

 8A e-Ballast @120VAC/

5A e-Ballast @208-277VAC

Operate Levels

Turn-On＜100Lx,Turn-Off＞100Lx  / per client request

Typical Time Delay

5s

Ambient Temperature

-40°C ~ +70 °C

Related Humidity

96%

Fail Mode

Fail-On

Shell material

PC+PC

High protection

Double Shell

Lightning Protection

4KV/2KA

Surge protection

MYL1-40K511

IP level

IP67

Factory Settings


Illuminance/Delayed/Reduction Duration

Customizable


Certifications

Twist Lock Intelligent Photocontrol DALI Constant Illumination Midnight Night Real-time Fault Alert 1


FAQs

Q1:What is a Twist Lock Intelligent Photocontrol with DALI Constant Illumination and Midnight Night Mode?

A:It is an intelligent twist-lock mounted photocontrol that supports DALI communication, provides constant illumination control, and features a dedicated midnight night dimming mode for intelligent outdoor lighting.

Q2:What is the function of DALI constant illumination in this photocontrol?

A:It automatically adjusts lamp brightness in real time according to ambient natural light to maintain a stable preset illumination level, ensuring uniform lighting and high energy efficiency.

Q3:What is the midnight night mode and how does it work?

A:Midnight night mode automatically dims the lighting to a lower brightness at preset late-night time periods, reducing power consumption while maintaining basic safety lighting.

Q4:What are the benefits of the twist lock installation design?

A:Twist lock enables quick, secure, waterproof and anti-loosening installation, compatible with standard photocontrol sockets for street lights and outdoor luminaires.

Q5:In which applications is this DALI intelligent photocontrol mainly used?

A:It is mainly used in street lighting, road lamps, garden lighting, community lighting and other public outdoor lighting systems requiring precise dimming and timed energy-saving control.
