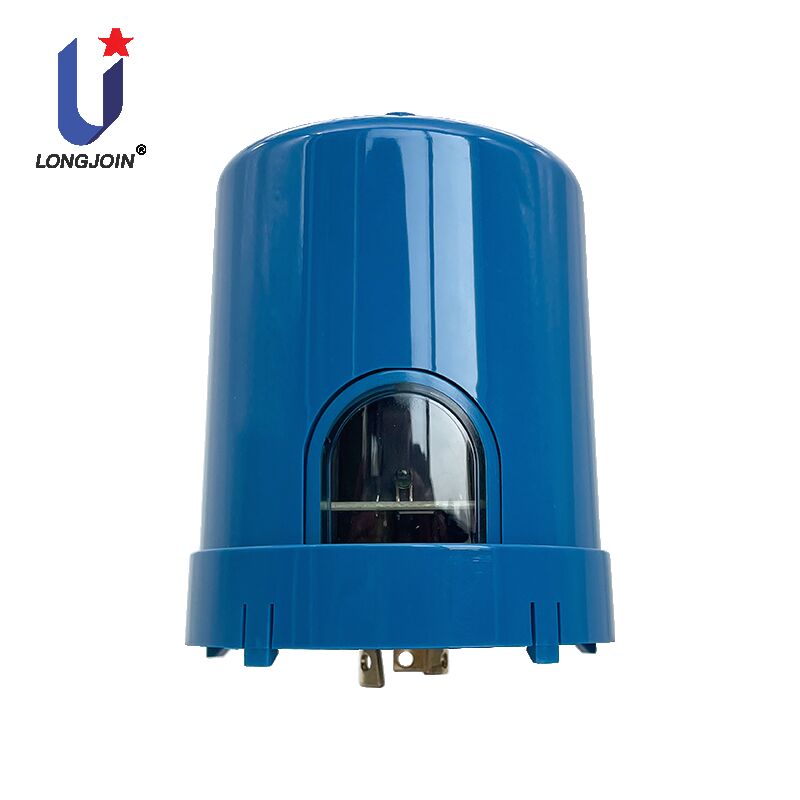

JL-246CR Smart IoT Dimming Photocontrol Zigbee 485 Master Gateway Collector
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-246CR |
JL-246CR NEMA Controller
,Zigbee 485 NEMA Controller
,Gateway Dimming Photocontrol
JL-246CR Smart IoT Dimming Photocontrol Zigbee-485 Master Gateway / Collector
Product Summary
JL-246CR photocontrol can apply to independent control application or system control application, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on.
This product consists a ZigBee communication module as well as a RS485 communication module to allow its ZigBee group remoted with a smart IoT management system.
Product size
Product Features
-
ANSI C136.41 Twist-lock
-
0~10V Dimming
-
Surge protection level: 6KV/3KA differential mode
-
Sandwich cover for Long Life
-
Multi-Volts Application
-
IR-fiRS485red Phototransistor
Specifications
|
Model No. |
JL-246CR |
|
Rated Voltage |
120~277VAC |
|
Applicable Voltage Range |
105~305VAC |
|
Rated Frequency |
50/60Hz |
|
Dimming Output |
0~10VDC |
|
Wireless Communication(up) |
RS485 |
|
Wireless Communicatio(down) |
Zigbee |
|
Spectral Acquisition Range |
350~1100nm；Peak wavelength 590nm |
|
Rated Loading |
1000W Tungsten ; 1000VA Ballast ; 8A@120V 5A@208-277 e-Ballast |
|
Operate Levels |
Turn-On＜100Lx,Turn-Off＞150Lx / per client request |
|
Power Consumption |
1.2W static,3.4W dynamic |
|
Operating Temperature |
-40℃~70℃ |
|
Operating Humidity |
96% |
|
Failure mode |
Fail-On |
|
Shell material |
PC+PC |
|
High protection |
Double Shell |
|
Surge protection level |
6KV/3KA differential mode |
|
IP level |
Default IP66 |
|
Factory Settings |
Remote control+Adaptive mode |
|
FCC |
● |
|
Certifications |
|
|
Criterion |
IEC61000-4-5;IEC61000-4-2;IEC61000-4-3; IEC61000-4-6;GB/T 17743-2017;IEC61000-4-4; IEC61000-4-11;IEC61000-3-2;GB/T2423.10-2008; UL94-V0; |
