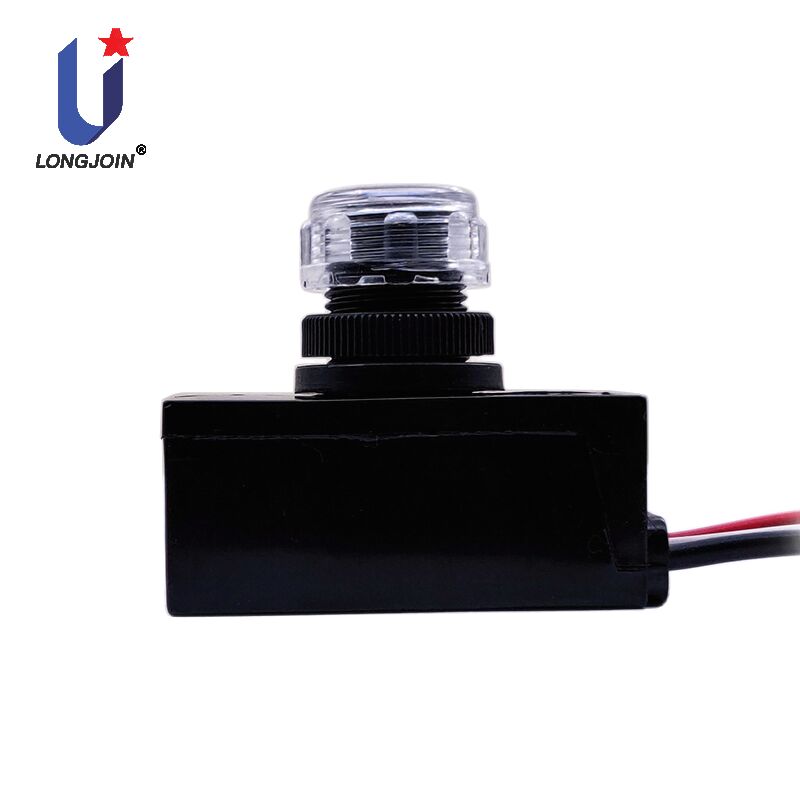

Improved Electronic Direct Wire In Photocontrol Passage Lighting Time Delay Feature

Name: Improved Electronic Direct Wire In Photocontrol Passage Lighting Time Delay Feature
Brand: Shanghai Long-Join Intelligent Technology Inc
SKU: JL-413C
Availability: InStock

Place of Origin	China
Brand Name	LongJoin
Model Number	JL-413C

Product Details

Rated Voltage:

120~277VAC

Available Voltage Range:

105~305VAC

Power Consumption:

0.5W Max.

Failure Mode:

Fail-Off

Certifications:

RoHS,CE,UL

Real-world Scenarios:

Security & Perimeter Lighting

Highlight:

JL-413C Light Controlled Switch

Passage Lighting Light Controlled Switch

Passage Lighting photoelectric switch

Payment & Shipping Terms

Price

negotiable

Packaging Details

Different packaging methods are adopted according to different modes of transport.

Payment Terms

Western Union,MoneyGram,T/T

Product Description

JL-413C Improved Electronic Direct Wire-In Photocontrol,passage lighting,

Product Summary

The photocontrol JL-413C is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

This product is designed with electronic circuits. Its quicker response with time delay of 3-10 seconds offers easy-to-test feature. Especially, model JL-413C provides a higher power factor performance.

Further, a preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.

Product size

Improved Electronic Direct Wire In Photocontrol Passage Lighting Time Delay Feature 0

Product Features

Improved Power Factor*
Wire outlets sealed for IP65+
Addional Clear Cap for raintight available
3~10s Time-delay preventing redundant turning-off caused by headlights or lightning

Note: *compared to JL-403C

Specifications

Model No.	JL-413C
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	1000W Tungsten 1200VA Ballast @120VAC 1800VA Ballast @208-277VAC 8A e-Ballast @120VAC 5A e-ballast @208-277VAC
Power Consumption	0.5W Max.
Operate Levels	10~20Lx Turn-On / 30~80Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads Length	AWG #16,AWM 1015 4" min
Failure Mode	Fail-Off
Rainproof Cap	Optional
Surge Protection	460Joule / 10000Amp (MOV)
Certifications

FAQs

Q1:What is an improved electronic direct wire in photocontrol with time delay for passage lighting?

A:It is an upgraded electronic light control sensor with direct wire installation, specially designed for passage lighting, and equipped with a time delay function to achieve more stable and energy-saving automatic lighting control.

Q2:What is the function of the time delay feature in this passage lighting photocontrol?

A:The time delay function keeps passage lights on for a set period after being activated, avoiding frequent switching, ensuring continuous illumination in corridors and walkways, and improving both safety and energy efficiency.

Q3:What makes this an improved electronic photocontrol?

A:Compared with traditional models, it provides higher stability, better anti-interference performance, longer service life, and more accurate light sensing, making it more reliable for long-term use in passage lighting systems.

Q4:Is this photocontrol designed for direct wire installation?

A:Yes, it supports direct wire-in connection, enabling simple, fast and firm wiring into various passage lighting fixtures without additional adapters or complex setup.

Q5:Where is this improved electronic photocontrol mainly applied?

A:It is mainly used in passage lighting scenarios such as corridors, hallways, walkways, stairwells and other public areas that require automatic lighting control with time delay.
