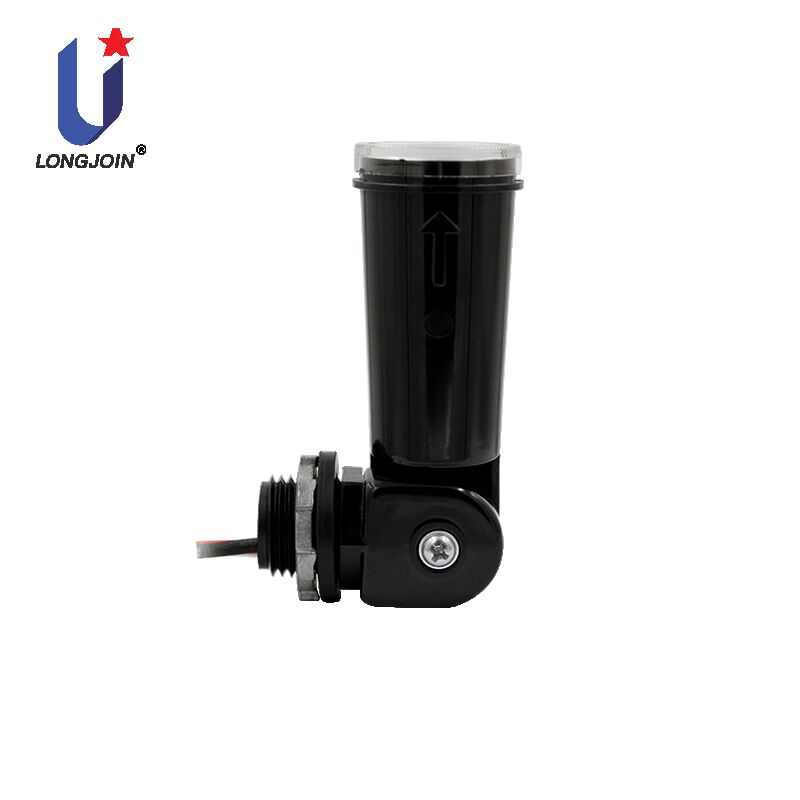

Direct Thermal Photocontrol Swivel Integrated Passage And Doorway Lighting Silicon Phototransistor
  • Direct Thermal Photocontrol Swivel Integrated Passage And Doorway Lighting Silicon Phototransistor
  • Direct Thermal Photocontrol Swivel Integrated Passage And Doorway Lighting Silicon Phototransistor
  • Direct Thermal Photocontrol Swivel Integrated Passage And Doorway Lighting Silicon Phototransistor
  • Direct Thermal Photocontrol Swivel Integrated Passage And Doorway Lighting Silicon Phototransistor
Direct Thermal Photocontrol Swivel Integrated Passage And Doorway Lighting Silicon Phototransistor

Direct Thermal Photocontrol Swivel Integrated Passage And Doorway Lighting Silicon Phototransistor

Place of Origin China
Brand Name LongJoin
Model Number JL-104
Product Details
Rated Voltage:
120VAC(204A) / 220~240VAC(204B) / 208~277VAC(204C) / 277VAC(204D) / 347VAC(204EE)
Power Consumption:
1.5W Max.
Operate Levels:
10~20Lx Turn-On / 30~60Lx Turn-Off
Fail Mode:
Fail-On
Certifications:
RoHS,UL,CE
Real-world Scenarios:
Residential Street Lighting
Highlight:

JL-104 thermal photocontrol

,

Doorway Lighting thermal photocontrol

,

Passage Lighting thermal photo control

Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description

JL-104 Direct Thermal Photocontrol Swivel integrated passage lighting and doorway lighting


Product Summary

The Photocontrol JL-104 is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

This product is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.

JL-104 has a gathered swivel with the sensor/switch body for convenient direction adjustment after installation.

This product is certified to the Standard for Non-industrial Photocontrol for Lighting Control UL773A and applicable Canadian Standards.


Product size

Direct Thermal Photocontrol Swivel Integrated Passage And Doorway Lighting Silicon Phototransistor 0


Product Features

  • Time Delay 20~120s

  • Ambient Temperature: -40℃ ~ +70℃

  • Swivel integrated

  • Screw Thread (NPT 1/2") & Zinc Alloy Nut

  • UV stabilized PC enclosure


Specifications

Model No.

JL-104A

JL-104B

JL-104C

JL-104D

JL-104EE

Rated Voltage

120VAC

220~240VAC

208~277VAC

277VAC

347VAC

Applicable Voltage Range

—

200~305VAC

—

Rated Frequency

50/60Hz

Rated Loading

1800W  Tungsten,1100VA Ballast

2000W Tungsten,

2000VA Ballast

Power Consumption

1.5W Max.

Operate Levels

10~20Lx   Turn-On / 30~60Lx   Turn-Off

Ambient Temperature

-40℃ ~ +70℃

Related Humidity

96%

Fail Mode

Fail-On

Lead Wire

AWG#16,AWM3321

4"min

Certifications

Direct Thermal Photocontrol Swivel Integrated Passage And Doorway Lighting Silicon Phototransistor 1


FAQs

Q1:What is a direct thermal photocontrol with swivel integrated design for passage and doorway lighting?

A:It is a direct thermal photocontrol with a swivel integrated structure, equipped with a silicon phototransistor, mainly used for automatic control of passage lighting and doorway lighting.

Q2:What is the advantage of the swivel integrated design in this photocontrol?

A:The swivel integrated design allows flexible angle adjustment of the sensor, enabling more accurate ambient light detection and easier installation in different positions.

Q3:What role does the silicon phototransistor play in this thermal photocontrol?

A:The silicon phototransistor provides high sensitivity and stable light sensing, ensuring accurate on/off control according to ambient brightness and reducing false triggering.

Q4:Where is this direct thermal photocontrol mainly applied?

A:It is mainly used in passage lighting, corridor lighting, doorway lighting, porch lamps and entrance area lighting that requires reliable automatic control.

Q5:How does this photocontrol improve the stability of passage and doorway lighting?

A:With high-precision sensing and a durable swivel structure, it ensures stable dusk-to-dawn operation, enhances safety, and reduces the need for manual control.
