Twist Lock Dimmable Receptacle 8P Rotatable ANSI C136.10 Receptacle
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-250G |
Product Details
Applicable Volt Range:
0~480VAC
Power Loading:
15A
Signal Control:
0-30 VDC, 1500 MA Max
Lead:
16AWG/14AWG 6" Min
Certifications:
ANSI C136.41-2013,RoHS,RU,CE,CB,UKCA
Real-world Scenarios:
Highway & Expressway Lighting
Highlight:
15A Twist Lock dimmable receptacle
,ANSI Twist Lock dimmable receptacle
,C136.10 nema socket street lighting
Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description

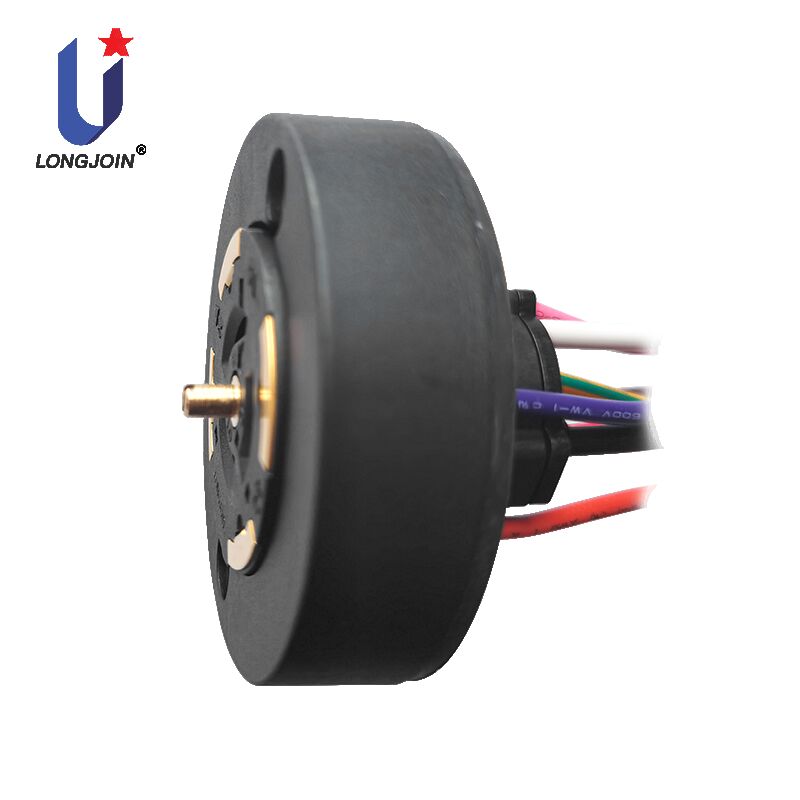

Twist Lock Dimmable Receptacle 8P Rotatable ANSI C136.10 Receptacle
JL-250G Twist-lock Dimming receptacle 8P rotatable ANSI C136.10 receptacle to fit a twist-lock photocontrol
Product Summary
All the JL-250GXA series photocontrol receptacles were designed for lanterns intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This series conforms to the newly published ANSI C136.41 standard to allow an LED lamp to be multi-controlled through the receptacle.
This series offers 4 gold-plated low voltage pads on the top surface to fit photocontrols with ANSI C136.41 conforming spring contacts, and provides 4 wiring leads at the rear side for signal connection.
In particular, the grounding terminal in the center of the socket works with the JL-250F**C* series to achieve common mode surge protection.
Product Size
Product Features
- Body made from polybutylene terephthalate
- Contacts made from phosphor bronze
- Gold pad made from Nickel plated phosphor bronze with gold plating per ASTM B 488
- Silicone gasket offered
- Center ground terminal, works with JL-250F**C* series to achieve common mode surge protection
- Loosen the screws to find the north, easy to install the optical controller (installation defaults to pointing north), to avoid decline of optical controller photosensitive components and extend service life
Specifications
| Model No. | JL-250G |
| Applicable Volt Range | 0~480VAC |
| Rated Frequency | 50/60Hz |
| Load Rating | 15A |
| Signal Control | 0-30 VDC, 1500 mA Max |
| Lead | 16AWG/14AWG 6" min |
| Ambient Temperature | -40°C ~ +70°C |
| Related Humidity | 96% |
| Certifications | ANSI C136.41-2013
|
Frequently Asked Questions
Q1: What is the Twist Lock Dimmable Receptacle 8P?
A: It is an 8-pin twist-lock type dimming receptacle designed for outdoor lighting control, providing secure connection and dimming signal transmission for intelligent lighting fixtures.
Q2: What is the benefit of the rotatable design of this receptacle?
A: The rotatable structure allows flexible angle adjustment during installation, adapting to different lamp arm positions and installation spaces, greatly improving construction convenience.
Q3: What standard does this receptacle comply with?
A: It fully complies with ANSI C136.10 standards, ensuring unified interface size, electrical performance and high compatibility with mainstream lighting control devices.
Q4: What are the advantages of the twist lock structure?
A: The twist lock design provides firm, anti-loosening and waterproof connection, ensuring stable operation in outdoor wind, rain and vibration environments.
Q5: In what lighting systems is this 8P dimmable receptacle mainly used?
A: It is widely used in road lighting, smart street lamps, landscape lighting and industrial outdoor lighting systems that require multi-signal dimming control.
