Photocontrol Receptacle Rotatable 3P Directional Locking High Waterproof
|
Photocontrol Receptacle Rotatable 3P Directional Locking High Waterproof
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-230F |
Product Details
Rated Voltage:
480VAC Max
Lead:
16AWG,14AWG 6" Min
Load Rating:
15 A
Contact:
H62 Brass
Certifications:
RoHS,RU,CE,CB,UKCA
Real-world Scenarios:
Industrial Park Management
Highlight:
H62 Brass Contact photocontrol receptacle
,Waterproof photocontrol receptacle
,15A photo control receptacle
Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description

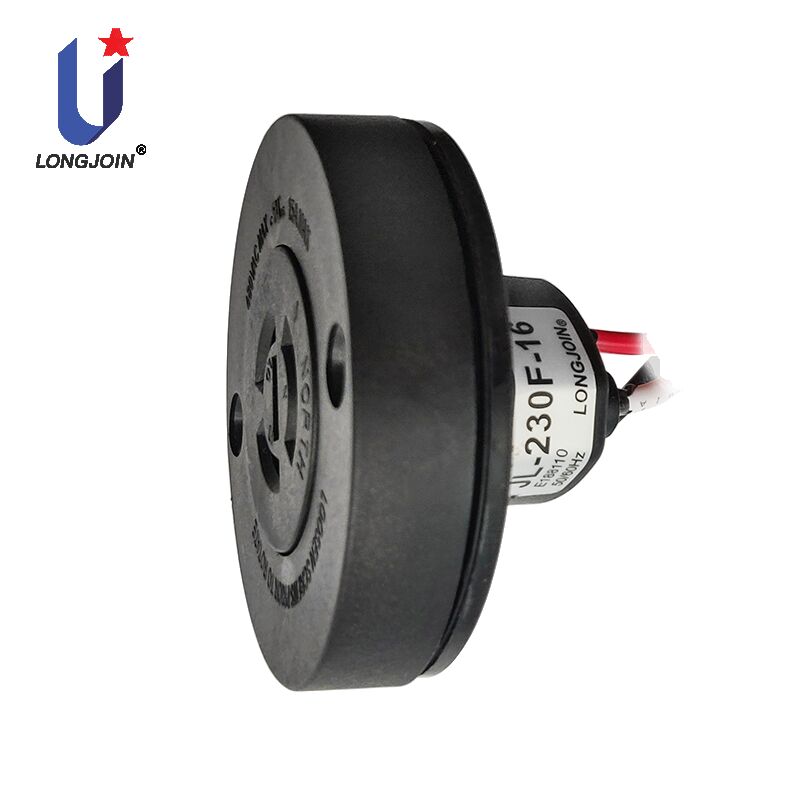

Photocontrol Receptacle Rotatable 3P Directional Locking High Waterproof
Product Overview
JL-230F Photocontrol Receptacle Rotatable 3P Directional Locking High Waterproof
All JL-230 series receptacles are designed to be pre-mounted onto lanterns that accommodate ANSI C136.10 twist-lock photocontrols. The JL-230F model specifically prevents water ingress through wire strands and features 360° rotation limiting to comply with ANSI C136.10 requirements.
All JL-230 series receptacles are designed to be pre-mounted onto lanterns that accommodate ANSI C136.10 twist-lock photocontrols. The JL-230F model specifically prevents water ingress through wire strands and features 360° rotation limiting to comply with ANSI C136.10 requirements.
Product Dimensions
Key Features
- Adjustable screw allows orientation to true north for optimal photocontrol installation, preventing light sensor degradation and extending controller lifespan
- Integrated waterproof ring enhances socket sealing and moisture protection
Technical Specifications
| Model No. | JL-230F |
|---|---|
| Rated Voltage | 480VAC Max |
| Rated Frequency | 50/60Hz |
| Lead | 16AWG, 14AWG 6" min |
| Ambient Temperature | -40°C ~ +70°C |
| Relative Humidity | 96% |
| Load Rating | 15 A |
| Holding Cover | PBT |
| Receptacle | PBT |
| Contact | H62 Brass |
| Gasket | Silicon Rubber |
| Cable Line | - |
| IP65 | ● |
| Certifications | |
Frequently Asked Questions
What is the Photocontrol Receptacle Rotatable 3P?
It is a 3-pin rotatable socket designed for photocontrol devices, used to connect photosensitive controllers for outdoor lighting fixtures with stable connection and reliable control.
What are the benefits of the rotatable design for this receptacle?
The rotatable structure allows flexible angle adjustment during installation, adapting to different lamp positions and installation spaces, making construction more convenient.
What is the function of the directional locking design?
Directional locking ensures accurate plug-in direction, avoids wrong connection, enhances connection firmness, and prevents loosening under outdoor vibration and wind conditions.
How does the high waterproof performance support outdoor use?
With high-level waterproof performance, it can operate stably in rain, snow, humidity and other harsh outdoor environments, ensuring long-term reliable operation of the lighting control system.
In which scenarios is this 3P photocontrol receptacle mainly applied?
It is mainly used in street lamps, road lighting, courtyard lights, park lighting and other outdoor public lighting systems requiring waterproof and directional locking control sockets.
