NEMA Interface Rotary Lock Optical Controller Socket RFID Version Without Wires Wireless Version
|
NEMA Interface Rotary Lock Optical Controller Socket RFID Version Without Wires Wireless Version
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-240VQ |
Product Details
Applicable Voltage Range:
0~480VAC
Power Load:
15A
Signal Control:
0-30 VDC, 250 MA Max
Rated Frequency:
50/60Hz
Authentication:
RoHS,RU,CE,CB,UKCA
Real-world Scenarios:
Highway & Expressway Lighting
Highlight:
Rotary Lock Optical controller socket
,NEMA controller socket
,15A nema 7 pin socket
Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description
NEMA Interface Rotary Lock Optical Controller Socket RFID Version Without Wires Wireless Version

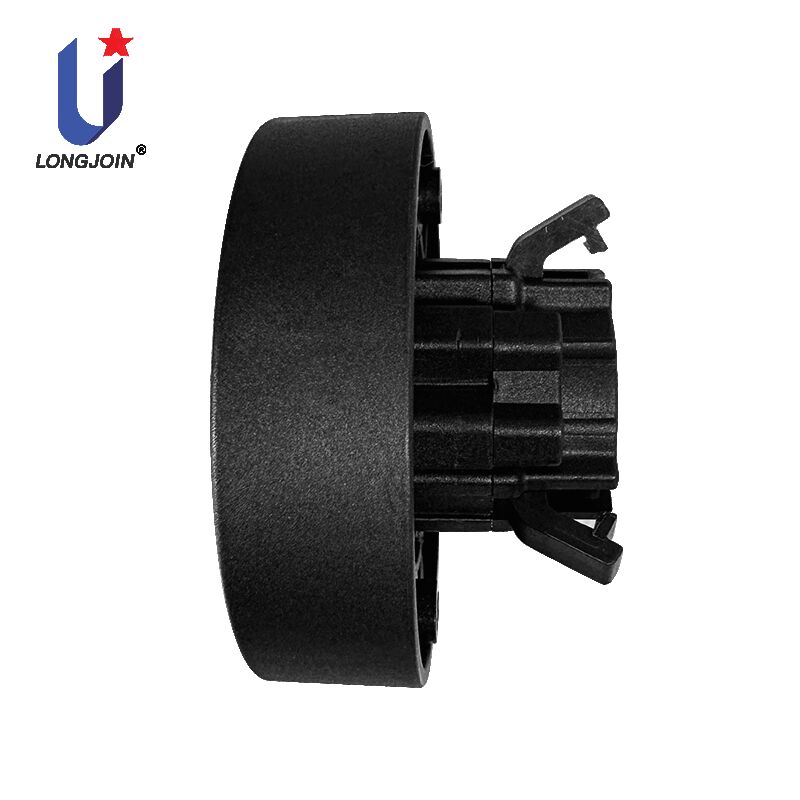

JL-240VQ NEMA Interface Rotary Lock Optical Controller Socket
The JL-240VQ rotary lock light controller socket is designed for outdoor lighting fixtures and is used to accept control of LED lighting fixtures by rotary lock light controllers. Embedding RFID (Radio Frequency Identification) module can upgrade the electronic labeling of street lights, making it easy to manage them.
This product provides 4 gold-plated contact pieces on the top surface, which are compatible with the spring contact pieces of the rotary lock light controller (ANSI C136.41). This product meets the requirements of ANSI C136.10, ANSI C136.41, and ANSI/UL773 area lighting standards for plug-in and rotary lock optical controllers.
Product Dimensions
Product Features
- RFID (Radio Frequency Identification) module
- V-shaped socket products do not provide wires, making it easy for lamp assembly factories to directly plug and connect them
- Patented card pin design, powerful locking wire and support for removing erroneous wiring
- Combination use can reach IP66 level (paired with JL-208-IP66)
- The main body is made of polybutylene terephthalate (PBT)
- Contact points made of phosphorus bronze
- The metal contact piece is made of nickel plated phosphorus bronze and gold-plated according to ASTM B 522
Technical Specifications
| Model No. | JL-240VQ |
| Applicable Volt Range | 0~480VAC |
| Rated Frequency | 50/60Hz |
| Load Rating | 15A |
| Signal Control | 0-30 VDC, 250 mA Max |
| Applicable cables | Power cord: 16AWG, signal wire 20AWG or 18AWG, stripped tin, power wire stripped 12-15mm, signal wire stripped 11-13mm |
| Ambient Temperature | -40°C ~ +70°C |
| Related Humidity | 96% |
| Certifications | |
Frequently Asked Questions
What is the NEMA Interface Rotary Lock Optical Controller Socket?
It is a lighting control socket adopting NEMA standard interface and rotary lock structure, specially designed for connecting optical control modules in outdoor lighting fixtures.
What is the RFID version feature of this socket?
The RFID version integrates radio frequency identification function, enabling intelligent identification, parameter configuration and management of lighting controllers without complicated wiring.
What are the advantages of the wireless version without wires?
The wire-free wireless design gets rid of traditional cable constraints, making installation simpler, reducing construction cost and improving adaptability to different lamp structures.
What is the function of the rotary lock structure?
The rotary lock structure ensures a firm and stable connection, is anti-loosening and waterproof, and can maintain reliable contact in outdoor vibration and bad weather.
In which scenarios is this RFID wireless socket mainly applied?
It is mainly used in intelligent street lamps, road lighting, landscape lighting and smart city public lighting systems needing wireless intelligent control.
