15A High Current Load Photocontrol Receptacle Rotatable ANSI C136.10 Twist Lock Photocontrol
|
15A High Current Load Photocontrol Receptacle Rotatable ANSI C136.10 Twist Lock Photocontrol
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-230 |
Product Details
Rated Voltage:
480VAC Max
Lead:
16AWG,14AWG 6" Min
Load Rating:
15 A
Contact:
H62 Brass
Certifications:
ANSI C136.10-2010,RoHS,RU,CE,CB,UKCA
Real-world Scenarios:
Industrial Park Management
Highlight:
High Current twist lock photocontrol
,ANSI twist lock photocontrol
,C136.10 twist lock photo control
Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description

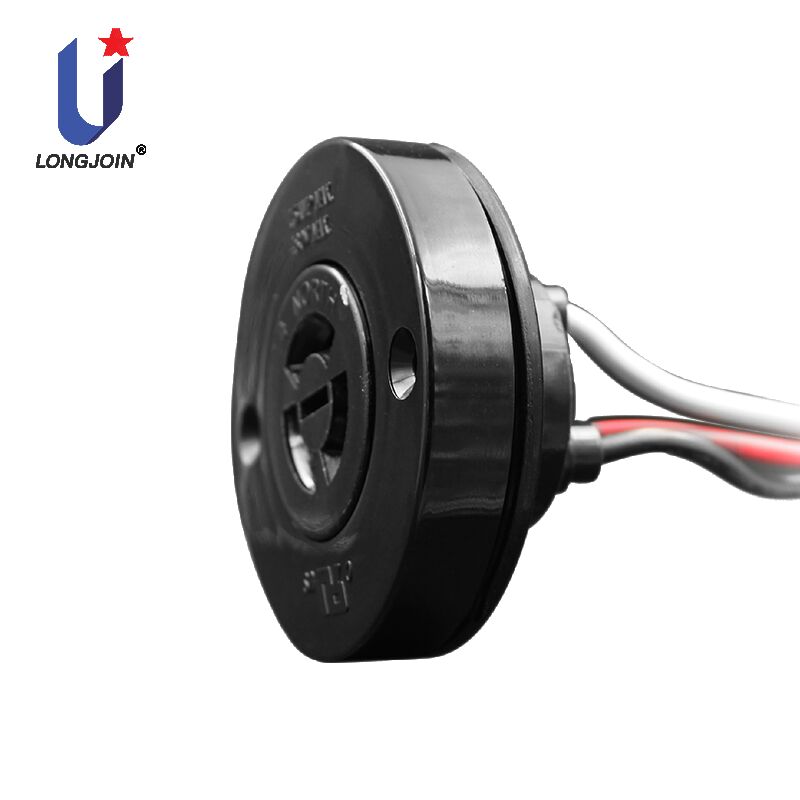

15A High Current Load Photocontrol Receptacle Rotatable ANSI C136.10 Twist Lock Photocontrol
JL-230 Photocontrol Receptacle
All JL-230 series receptacles are designed for pre-mounting onto lanterns that accommodate ANSI C136.10 twist-lock photocontrols. The JL-230F model specifically prevents water ingress through wire strands. This series features 360° rotation limiting to meet ANSI C136.10 requirements for rotatable applications.
Product Dimensions
Product Features
- Available with 2 or 4 screw hole configurations
- Bakelite body for extended service life
- Nylon holder prevents cracking
- Adjustable screw allows north orientation for optimal photocontrol installation, preventing light sensor degradation and extending controller lifespan
Technical Specifications
| Model No. | JL-230 |
|---|---|
| Rated Voltage | 480VAC Max |
| Rated Frequency | 50/60Hz |
| Lead | 16AWG, 14AWG 6" min |
| Ambient Temperature | -40°C ~ +70°C |
| Related Humidity | 96% |
| Load Rating | 15 A |
| Holding Cover | Nylon |
| Receptacle | Phenolic (Bakelite) |
| Contact | H62 Brass |
| Gasket | Silicon Rubber |
| Cable Line | ● |
| IP65 | ● |
| Certifications | ANSI C136.10-2010 |
Frequently Asked Questions
What is the 15A high current load photocontrol receptacle?
It is a high-power socket for photosensitive controllers, supporting a 15A high current load, primarily used for stable power supply and light control in outdoor lighting systems.
What is the advantage of the rotatable design of this receptacle?
The rotatable structure allows flexible angle adjustment during installation, adapting to different lamp arm positions and installation environments, greatly improving construction convenience.
Does this receptacle comply with ANSI C136.10 standards?
Yes, it fully complies with ANSI C136.10 standards, ensuring unified interface size, electrical performance and high compatibility with standard photocontrol devices.
What are the features of the twist lock structure?
The twist lock design provides a firm, anti-loosening and waterproof connection, ensuring stable operation in outdoor vibration, wind and rain environments.
In which applications is this high-current photocontrol receptacle mainly used?
It is mainly used in road lighting, street lamps, park lighting, industrial outdoor lighting and other high-power occasions requiring photocontrol and large current support.
