15A High Current Load Photocontrol Receptacle Plug In Connection NEMA 3P
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-200V |
15A High Current receptacle plug
,Photocontrol receptacle plug
,3P nema socket photocell

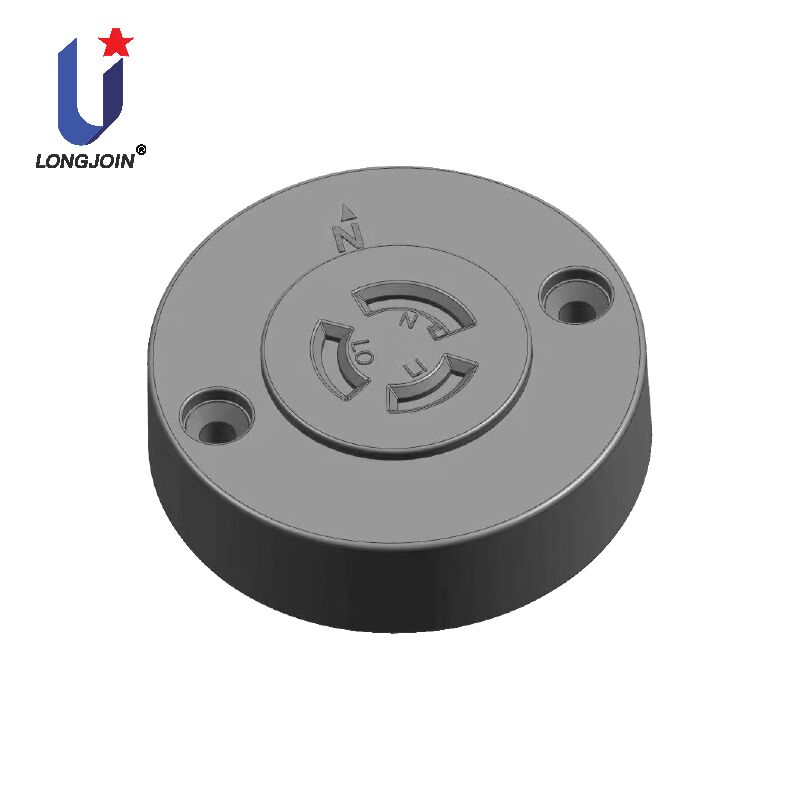

The JL-200V rotary lock type light control switch socket series products are specifically designed for outdoor lighting fixtures, providing power control for rotary lock type light controllers/switches on lighting fixtures.
This product features three locking terminals that comply with ANSI C136.10 and ANSI/UL773 area lighting standards for plug-in and rotary locking optical controllers.
- Bakelite body for long-life service
- Silicone gasket for superior waterproof performance
- V-shaped socket design eliminates electrical wires, enabling direct plug-and-connect installation for lamp assembly factories
- Eliminates intermediate wiring strips, reducing connection costs
- Patented card pin design provides strong wire locking and supports miswiring removal
- Combination use achieves IP66 protection level (when paired with JL-208-IP66)
- Contacts made of durable Phosphor bronze material
| Model No. | JL-200V |
|---|---|
| Power Volt Range | 0~480VAC |
| Rated Frequency | 50/60Hz |
| Load Rating | 15 A |
| Ambient Temperature | -40°C ~ +70°C |
| Related Humidity | 96% |
| Applicable cables | Power cord: 16AWG, double insulated 16AWG, peeled head with tin lining, power cord peeled head 12-15mm |
| Certifications | |
It is a plug-in type socket for photosensitive control devices, supporting 15A high current load, primarily used for outdoor lighting control systems.
It adopts the standard NEMA 3-pin (3P) interface, which offers excellent universality and compatibility with mainstream photocontrol products.
The plug-in structure enables quick and convenient installation and replacement, simplifies on-site wiring, and improves maintenance efficiency.
It can stably carry high-power lighting loads, ensuring safe and reliable operation in high-power street lamp and outdoor lighting systems.
It is primarily used in road lighting, street lamps, courtyard lights, park lighting and other public outdoor lighting applications with high-power requirements.
-
