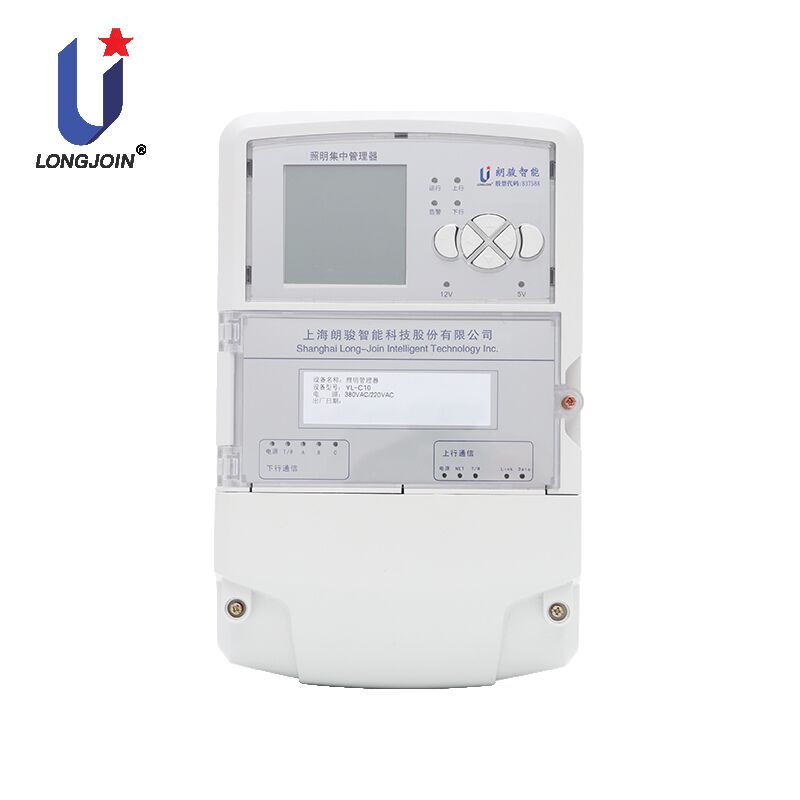

YL-C10 Lighting Centralized Manager Centralized Manager,HPLC

Product Summary

YL-C10 series lighting centralized manager is an indispensable part of intelligent road lighting solutions. The system consists of a centralized lighting manager and a platform control center, and communicates with each other through 4G, Ethernet or private networks of the three major operators. The centralized manager protocol refers to GB/T 34923.32017 for easy integration with other systems. When the YL-C10 series lighting centralized manager is used with the JL-461CP series single light controller, the city can achieve a 30% reduction in energy consumption and a 20% savings in operating costs through the wide lighting system. Through the centralized manager and single light controller, we can achieve dynamic, intelligent and flexible lighting control for every road section and every street lamp in the city, improving urban safety and beautifying the city.

Product size

Product Features

• System performance: industrial 32 bit ARM chip with Cortex-M3 core and measurement equipment system performance: special chip, high speed, high precision and strong function.

• Data collection function: Obtains various data from the single-lamp terminal, including voltage, current, active power, power factor, fault information, power, on duration and off duration. It can collect the three-phase voltage supply current, power factor, total power and total electricity of the distribution box.

• Support for external equipment: support for external illuminance, vehicle flow detection sensor, PM2,5 sensing support for external equipment, weather sensor, smart meter, multi-loop power collector and cable anti-theft equipment.

• Multiple strategy combination: Support a variety of control modes, built-in dimming mode, timing mode/latitude and longitude mode/illuminance mode/light + timing combination mode/light + longitude and latitude + timing complex mode.

• Device status alert: centralized manager built-in sound and light reminder function, the device online beeping prompt.

• Remote device upgrade: Using the embedded operating system, the centralized manager can realize the remote firmware update of the device through the remote upgrade function.

• Number of control loops: 6-loop configuration, optional 8 or 16 loop expansion control module

• Independent operation: the device can turn on and off automatically when the communication between the device and the platform is lost. Internal storage control policy, data is not lost after power failure.

• Communication functions: Uplink communication: compatible with 4G various public network communication modes of the three major operators and the cloud platform;

• Downlink communication :HPLC broadband power carrier communication

• Fault alarm: active alarm for major faults such as abnormal on/off of lights, failure of lamps, abnormal opening of door, etc., and have a log of turning on and off lights.

• Control function: It can independently control each loop of the distribution box, and carry out single lamp switch control and group control of the single lamp controller terminal within the jurisdiction of the centralized manager.

• Visualization function: Centralized manager standard LCD text display, local view and modify parameters and operation control.

• Communication ports: two groups of RS-485 ports.

• remote debugging: strong remote debugging technical strength, products with the installation and adjustment, users do not need to wait

Specifications
