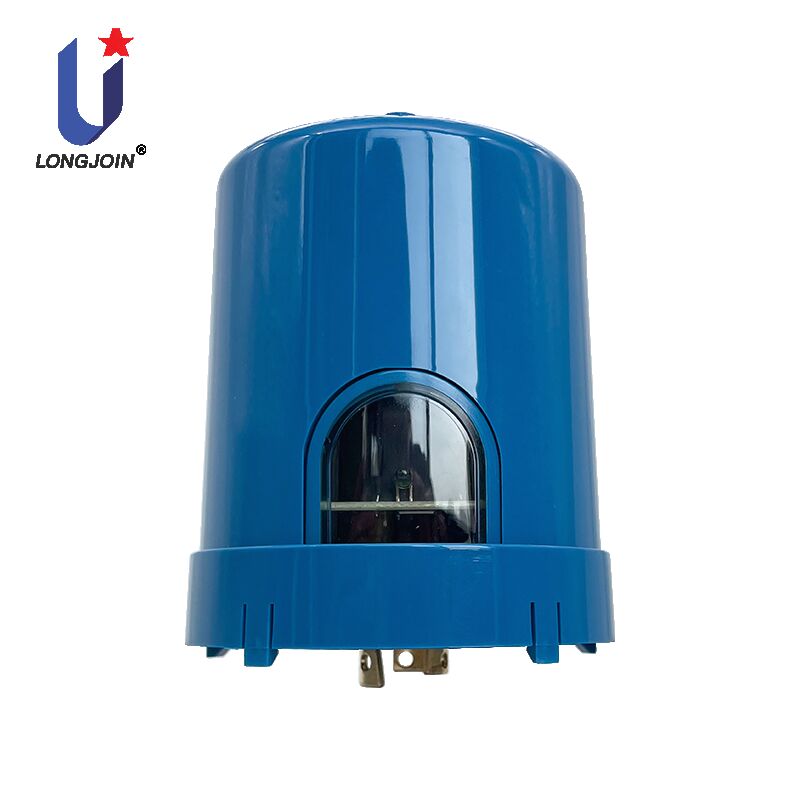

JL-246CG Smart IoT Dimming Photocontrol Zigbee Master With LTE Gateway Collector
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-246CG |
JL-246CG dimming photocontrol
,Smart IoT dimming photocontrol
,10V zigbee master
JL-246CG Smart IoT Dimming Photocontrol Zigbee-Master With LTE Gateway / Collector
Product Summary
JL-246CG photocontrol can apply to independent control application or system control application, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on.
This product consists a Zigbee communication module as well as a LTE communication module to allow its Zigbee group remoted with a smart IoT management system.
Product size
Product Features
-
ANSI C136.41 Twist-lock
-
0~10V Dimming
-
Surge protection level: 6KV/3KA differential mode
-
Sandwich cover for Long Life
-
Multi-Volts Application
-
IR-filtered Phototransistor
Specifications
|
Model No. |
JL-246CG |
|
Rated Voltage |
120~277VAC |
|
Applicable Voltage Range |
105~305VAC |
|
Rated Frequency |
50/60Hz |
|
Dimming Output |
0~10VDC |
|
Wireless Communication(up) |
LTE-Cat1 |
|
Wireless Communication(down) |
Zigbee |
|
Spectral Acquisition Range |
350~1100nm；Peak wavelength 590nm |
|
Rated Loading |
1000W Tungsten,1000VA Ballast,8A@120VAC/5A@208-277VAC e-Ballast |
|
Operate Levels |
Turn-On＜100Lx,Turn-Off＞150Lx / per client request |
|
Power Consumption |
1.2W static,10W dynamic |
|
Ambient Temperature |
-40℃~70℃ |
|
Related Humidity |
96% |
|
Fail Mode |
Fail-On |
|
Shell material |
PC+PC |
|
High protection |
Double Shell |
|
Surge protection level |
6KV/3KA differential mode |
|
IP level |
Default IP66 |
|
Factory Settings |
Remote control+Adaptive mode |
|
FCC |
● |
|
Certifications |
|
|
Criterion |
IEC61000-4-5；IEC61000-4-2；IEC61000-4-3, IEC61000-4-6；GB/T 17743-2017；IEC61000-4-4； IEC61000-4-11；IEC61000-3-2；GB/T2423.10-2008； UL94-V0； |
