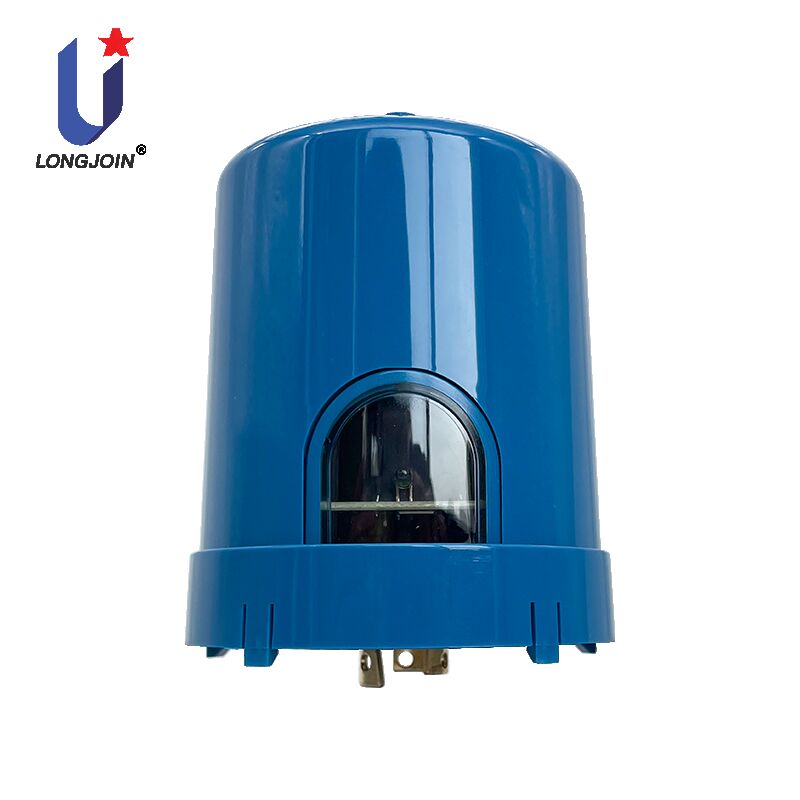

JL-245CG Smart IoT Dimming Photocontrol LTE-Cat.1 External SIM Card

Rated Voltage

120~277VAC

Applicable Voltage Range

105~305VAC

Rated Frequency

50/60Hz

Dimming Output

0~10VDC

Wireless Communication(up)

LTE-Cat1

Wireless Communicatio(down)

LTE-Cat1

Spectral Acquisition Range

350~1100nm；Peak wavelength 590nm

Rated Loading

1000W Tungsten ,1000VA Ballast , 8A@120VAC/5A@208-277VAC e-Ballast

Operate Levels

Turn-On＜100Lx,Turn-Off＞150Lx  / per client request

Power Consumption

1.2W static,2.4W dynamic

Ambient Temperature

-40℃~70℃

Related Humidity

96%

Fail Mode

Fail-On

Shell material

PC

Surge protection level

6KV/3KA differential mode

IP level

Default IP66

Factory Settings

Remote control+Adaptive mode

Certifications

Criterion

IEC61000-4-5;IEC61000-4-2;IEC61000-4-3;

IEC61000-4-6;GB/T 17743-2017;IEC61000-4-4;

IEC61000-4-11;IEC61000-3-2;GB/T2423.10-2008;UL94-V0;
