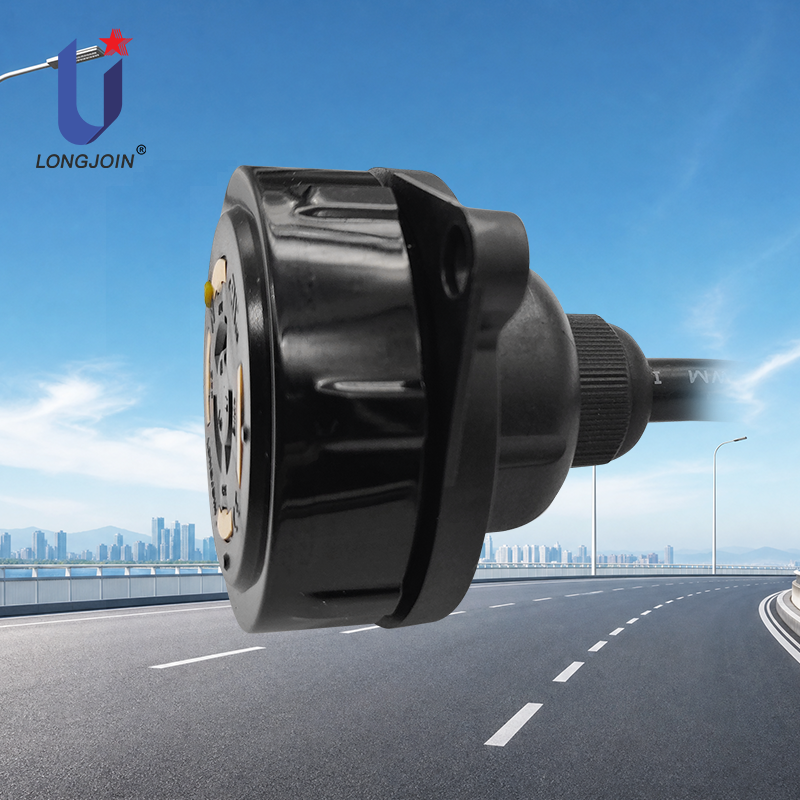

External Mounting Dimming Receptacle Waterproof Directional 7P Highway & Expressway Lighting
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-260C |
- Body constructed from durable polycarbonate material
- Contacts made from high-quality phosphor bronze
- Gold pads manufactured from nickel-plated phosphor bronze with gold plating per ASTM B 488 standard
- High visibility North pointer for orientation
- Includes lamp stand arm bonding kit
| Model No. | JL-260C |
| Applicable Volt Range | 0~480VAC |
| Rated Frequency | 50/60Hz |
| Power Loading | 15A |
| Signal Control | 0-30 VDC, 250 mA Max |
| Lead | 16AWG (Power) + 18AWG (Signal) 20" min |
| Ambient Temperature | -40°C ~ +70°C |
| Related Humidity | 96% |
| Certifications | ANSI C136.41-2013 |
Q1: What are the core characteristics of this external mounting dimming receptacle?
A1: This receptacle adopts external mounting structure, supports directional adjustment, comes with a 7-pin interface and integrated waterproof design, and reserves dimming control capability for outdoor lighting systems.
Q2: What projects is the 7P waterproof directional dimming receptacle mainly applied to?
A2: It is specially developed for highway and expressway lighting, applicable to new road light installation and intelligent upgrade projects along major traffic routes.
Q3: What advantages does the directional design offer during on-site installation?
A3: The directional design lets technicians adjust the receptacle angle flexibly, optimize cable routing, and avoid stress on wiring while preserving the waterproof sealing performance.
Q4: How does the waterproof design cope with harsh roadside working conditions?
A4: The waterproof sealing structure blocks rainwater, dust and road grime. It maintains stable power and dimming signal transmission under wide temperature changes for long-term outdoor use.
Q5: What functions can the 7-pin connector of this external mounting receptacle achieve?
A5: The 7P connector transmits power and dimming signals at the same time, supporting remote brightness tuning and intelligent monitoring for highway and expressway lighting fixtures.
