JL-241 Smart Dimming Photocontrol 0-10V,Constant illumination version

Product Summary

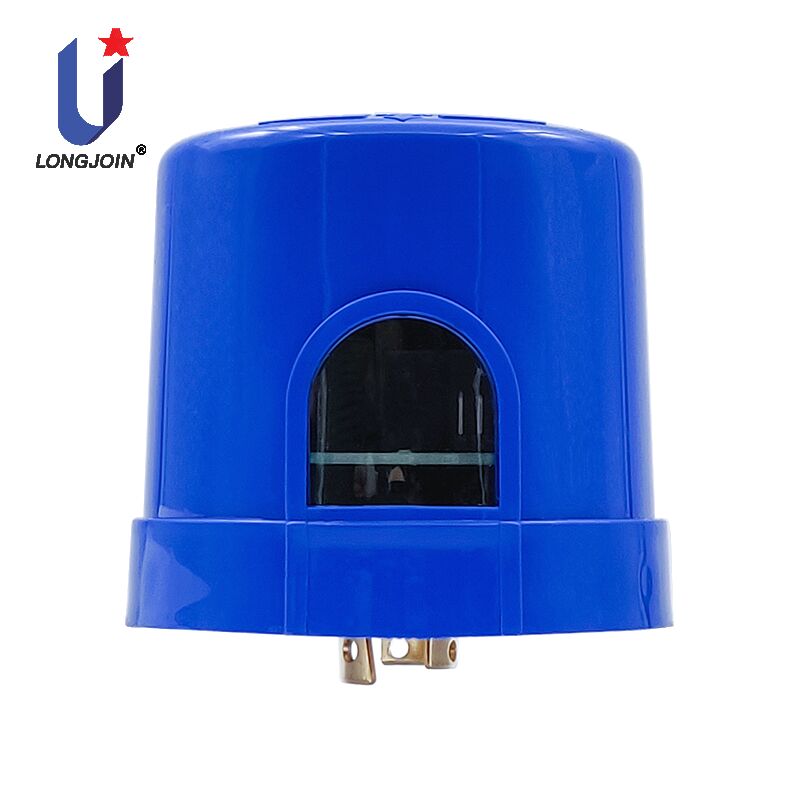

The dimming photocontrol JL-241 is applicable to control the dimmable LED street lighting (0~10V) automatically in accordance with the ambient natural lighting level.

This product is designed with microprocessor circuits with IR-filtered phototransistor.

A heavy duty surge arrester (MOV) is provided to protect the lamp from inrush current as well as impulse by lightening.

Further, a preset 10 seconds time-delay prevents excessive operation due to spotlight or lightning during the night time.

It provides constant reliability as the relay has sufficient work life of over 10,000 cycles, and offers extra long work life when a sandwich cover option is applied together.

This product provides twist lock terminals meeting the requirements of ANSI C136.41 as well as being listed by UL under the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting ANSI/UL773.

Product size

Product Features

• ANSI C136.41 Twist-lock

• 0~10V Dimming

• Surge protection level: 6KV/3KA differential mode

• Optional Sandwich cover for Long Life

• Multi-Volts Application

• IP65 Ready / IP67 Optional

• IR-filtered Phototransistor

• Constant On/Off Dimming

Specifications

Model No.	JL-241C				JL-241E	JL-241F
Rated Voltage	120~277VAC				347VAC	480VAC
Applicable Voltage Range	105~305VAC				105~382VAC	105~528VAC
Rated Frequency	50/60Hz
Dimming Output	0~10V DC
Spectral Acquisition Range	350~1100nm ; Peak wavelength:590nm
Rated Loading	1000W Tungsten, 1800VA Ballast, 8A@120VAC/5A@208-277VAC e-Ballast			1800W Tungsten, 1800VA Ballast, 5A@208-277VAC    e-Ballast		1800W Tungsten, 1800VA Ballast
Operate Levels	Turn-On＜100Lx,Turn-Off＞100Lx  / per client request
Typical Time Delay	5s
Ambient Temperature	-40°C ~ +70 °C
Related Humidity	96%
Fail Mode	Fail-On
Shell material	PC+PC
High protection	Sandwich cover(optional)
Surge protection	640 Joule / 40kA Amp MYL1-40K511		640 Joule / 40kA Amp MYL1-40K911
IP level	IP65/IP67
Factory settings	Illuminance/Delayed Customizable	Illuminance/Delayed/Reduction Duration Customizable
