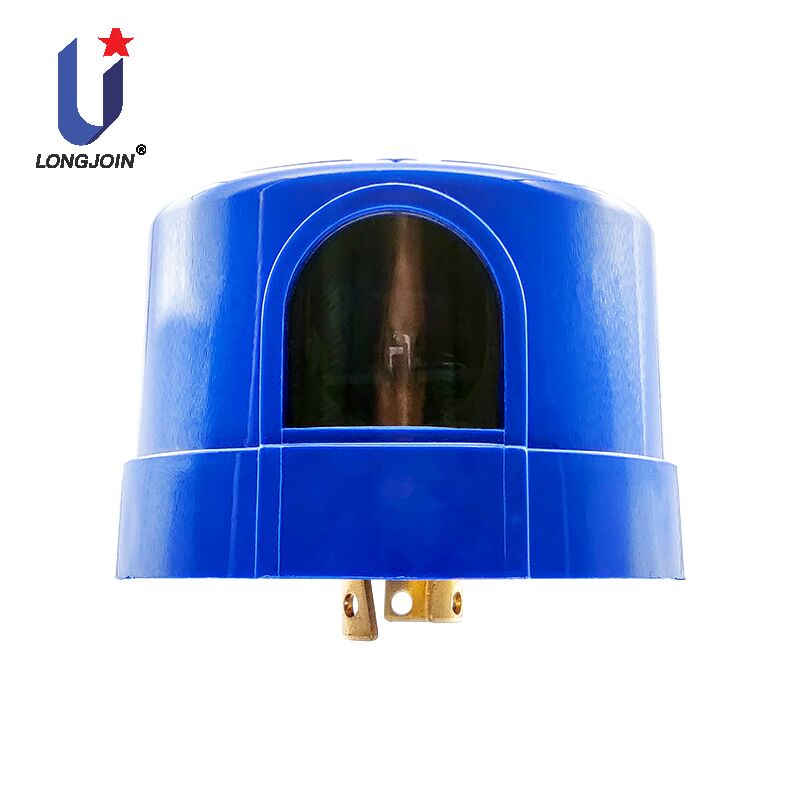

JL-206 Digital Electronic Photocontrol Inverse example street lighting, garden lighting, passage lighting and doorway lighting

Product Summary

The photocontrol JL-206 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level, with saving energy feature at dawn.

This product is designed with microprocessor circuits with IR-filtered phototransistor and a surge arrester (MOV) is provided.

Further, a preset 5-20 seconds time-delay might avoid redundancy operation due to spotlight or lightning during the night time.

The long-life version can maintain constant and reliable characteristics. The relay can have more than 10000 working life cycles. When the double-layer protective shell is installed, it can provide a longer working life for JL-206.The HP version provides a higher load.

This product provides Twist-lock terminals meeting the requirements of ANSI C136.10 and

the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting ANSI/UL773.

Product size

Product Features

• ANSI C136.10 Twist-lock

• Multi-Volts Application

• Inverse proportional illuminance

• Fully Customization Available

• Surge Arrester Built-in

• IR filtered Phototransistor

• Midnight Sleeping Available

• Zero-Cross  technology inside

• Fail-On / Fail-Off Modes Available

• UV stabilized enclosure

• Supports FCC class A

Specifications
