Pre Installed Waterproof Version ZHAGA Book 18 Receptacle 4-Pin Interface
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-700 |
Product Details
Related Humidity:
96%
Ambient Temperature:
-40°C ~ +70 °C
Wires:
AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C 6" Min
IP:
IP66
Certifications:
RoHS,RU,CE,CB,UKCA,Zhaga,REACH
Real-world Scenarios:
Parking Lot Automation
Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description

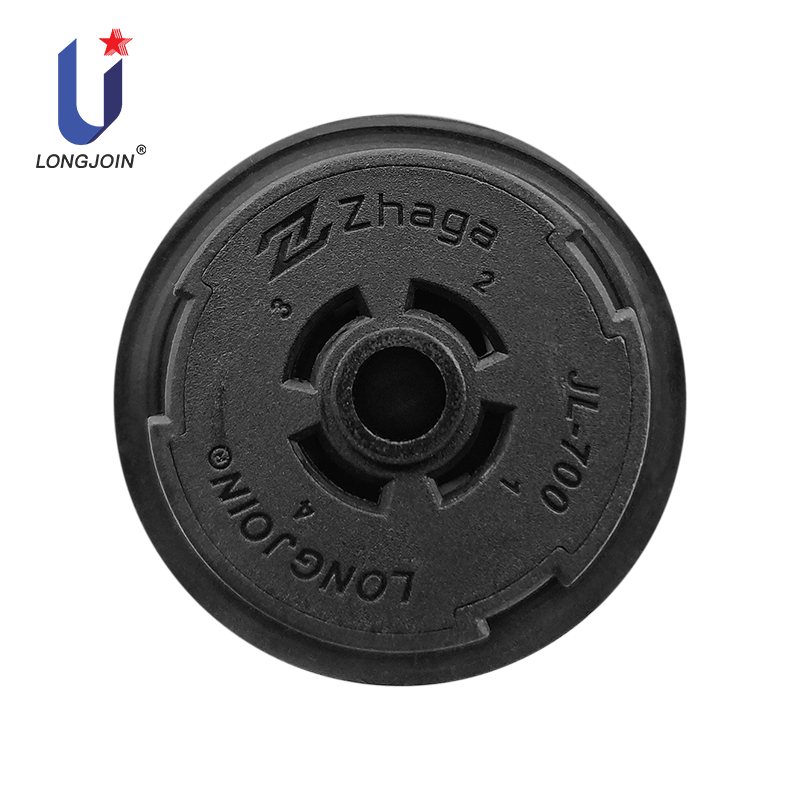

Pre Installed Waterproof Version ZHAGA Book 18 Receptacle 4P LEX-R 4-Pin Interface
The JL-700 is a factory pre-installed waterproof locking receptacle fully compliant with ZHAGA Book 18 official standards (Z-LEX-R, Z-LEX-C) and equipped with complete industry certifications. Featuring a standard 4-pin LEX-R interface, this pre-sealed socket is purpose-built for intelligent outdoor lighting systems, delivering factory-calibrated waterproof performance, stable electrical conductivity and universal modular compatibility.
Different from traditional assembled sockets that rely on on-site sealing, this pre-installed integrated structure completes all waterproof assembly and structural calibration during production. It effectively avoids water leakage and poor sealing caused by manual installation errors, greatly improving the yield rate and long-term operational reliability of lighting equipment. Widely applicable to road lighting, municipal regional lighting, commercial and residential lighting scenarios such as street lamps, industrial and mining lights, corridor lights and wall lamps, it is a standardized and reliable core accessory for new construction and intelligent renovation of smart city lighting infrastructure.
JL-700 Pre Installed Waterproof Version Zhaga Book-18 Receptacle 4P, LEX-R
Product Summary
JL-700 locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R, Z-LEX-C) and has passed relevant certification. This product facilitates the development and installation of road lighting, regional lighting, or commercial and residential lighting applications, including street lights, industrial and mining lights, corridor lights, and wall lights.
Product Dimensions
Drilling Plan
Product Features
- Standardized interface defined in Zhaga Book-18
- Compact size allowing greater flexibility in luminaire design
- Advanced sealing to achieve IP66 with no mounting screws
- Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
- Flexible mounting position, upwards, downwards and sideways facing
- Integrated single gasket that seals to both luminaire and module that minimizes assembling time
Specifications
| Model No. | JL-700 |
|---|---|
| Related Humidity | 96% |
| Ambient Temperature | -40°C ~ +70°C |
| Wires | AWM 1015, 18/20/22 AWG, 105°C AWM 1007, 18/20/22 AWG, 80°C 6" min |
| IP Rating | IP66 |
| Certifications | |
*Conductor specification: #20 conductor has UL certification
Frequently Asked Questions
Q1: What is the pre-installed waterproof 4-pin Zhaga Book 18 receptacle?
A1: It is a factory pre-assembled standardized interface component fully compliant with Zhaga Book 18 global outdoor lighting specifications, equipped with a sealed 4-pin contact layout. Integrated with pre-molded waterproof gaskets and UV-resistant housing, it is pre-wired and pre-mounted for LED street lights and area luminaires, delivering 24V auxiliary power, DALI signal transmission and reserved I/O channel in one compact port for smart city IoT modules.
Q2: What advantages does the pre-installed design bring compared with separately assembled sockets?
A2: All waterproof sealing, wiring and pin assembly work is finished in factory controlled production lines, eliminating manual assembly errors during luminaire production. It cuts lamp factory assembly time and labor cost, avoids water leakage risks caused by uneven on-site gasket installation, and ensures consistent IP66 waterproof performance across all finished luminaires before leaving the factory.
Q3: What functions does the standard 4-pin interface support?
A3: The 4 dedicated pins follow official Zhaga pin definition: 24VDC auxiliary power, DALI negative/GND, DALI positive dimming signal, and universal digital I/O port. It supports plug-and-play connection with photocells, wireless communication nodes, environmental sensors and fault monitoring modules, realizing lighting dimming, data collection and remote intelligent control for urban lighting infrastructure.
Q4: How reliable is the waterproof performance for long-term outdoor use?
A4: The pre-installed integrated silicone sealing ring and one-piece injection shell achieve stable IP66 dustproof and waterproof rating. The housing adopts anti-aging PBT material with UV stabilizer, resisting rain, snow, high temperature and coastal salt spray. The pre-compressed seal structure will not lose tightness after long-term thermal expansion and contraction, effectively preventing water and dust from damaging internal pin contacts.
Q5: What value does this product bring to smart city lighting manufacturing and renovation projects?
A5: For luminaire manufacturers, pre-installed structure simplifies production workflow and reduces defective rate. For municipal smart city projects, unified Zhaga 4-pin standard realizes cross-brand module interoperability without lamp modification. The all-weather waterproof design lowers later maintenance frequency, and the reserved I/O pin reserves expansion space for future upgraded sensing and communication functions of urban lighting networks.
