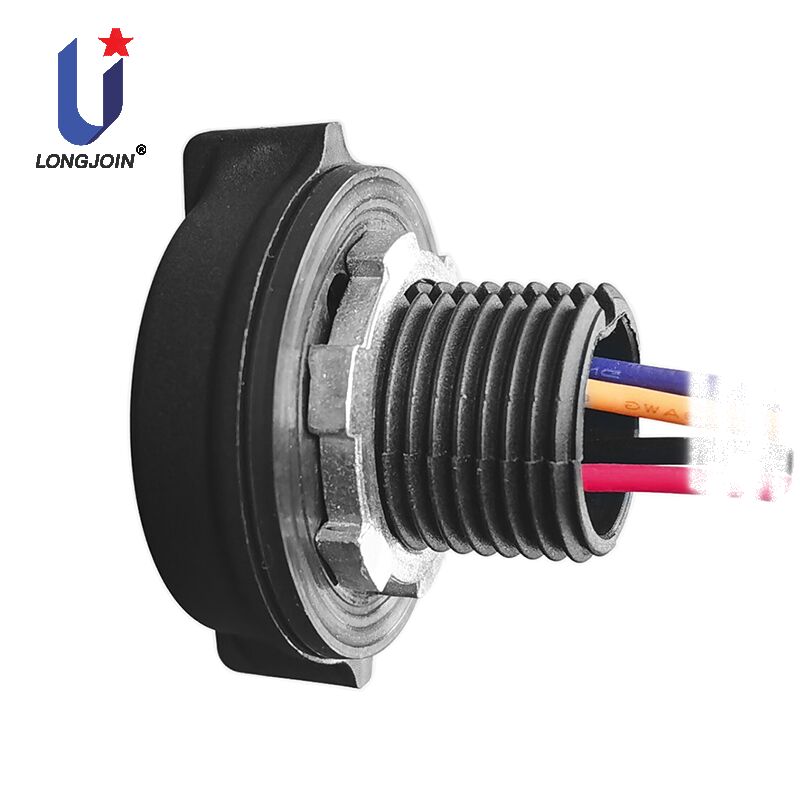

Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme Compact Design
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-700M |
IP66 ZHAGA Socket
,ZHAGA Socket Z10
,10V zhaga receptacle
Z10 standard JL-700M socket is suitable for 0-10V dimming scheme, providing convenient development of standard equipment for road lighting, regional lighting, or residential lighting applications. Based on equipment arrangement, these systems can incorporate monitoring, communication, and control functions using 0-10V dimming technology.
- Z10 standard interface for 0-10V dimming scheme compatibility
- Compact size suitable for various lamp configurations
- Advanced sealing technology achieving IP66 rating without installation screws
- Expandable solution supporting Φ40-80mm expansion controllers with same connection interface
- Flexible installation positioning on top, bottom, or side of lamps
- Integrated single gasket for sealing lamps and modules to minimize assembly time
| Model No. | JL-700M |
| Relative Humidity | 96% |
| Ambient Temperature | -40°C ~ +70°C |
| Wires | AWM 1015, 18/20/22 AWG, 105°C AWM 1007, 18/20/22 AWG, 80°C |
| IP Rating | IP66 |
| Certifications | |
Conductor specification: #20 conductor has UL certification
It is a ZHAGA socket designed with US-standard Z10 lock structure, supporting 0-10V dimming control, used for intelligent connection and dimming control of outdoor lighting fixtures.
The Z10 lock provides secure mechanical locking, stable connection, anti-loosening and waterproof performance, making it suitable for long-term outdoor use in accordance with US lighting standards.
0-10V is a universal, stable and flicker-free dimming method with high compatibility, simple wiring and smooth brightness adjustment for most LED drivers.
Compact size saves installation space, fits narrow lamp compartments, and enables easy integration into road lights, garden lights and wall lamps.
It is mainly used in US-standard road lighting, courtyard lighting, park lighting, residential community lighting and commercial outdoor lighting projects.
