ZHAGA Socket Book 18 Receptacle Leadless Version 24V DC Auxiliary Power
|
ZHAGA Socket Book 18 Receptacle Leadless Version 24V DC Auxiliary Power
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-700W |
Product Details
Rated Voltage:
24VDC
Power Consumption:
1.5A MAX
Wires:
20~22AWG，Strip The Head 9 ~ 11mm And Tin It
IP:
IP66
Certifications:
RoHS,RU,CE,CB,UKCA,Zhaga,REACH
Real-world Scenarios:
Smart City Infrastructure
Highlight:
1.5A MAX ZHAGA Socket
,Book 18 ZHAGA Socket
,Receptacle zhaga book 18 connector
Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description

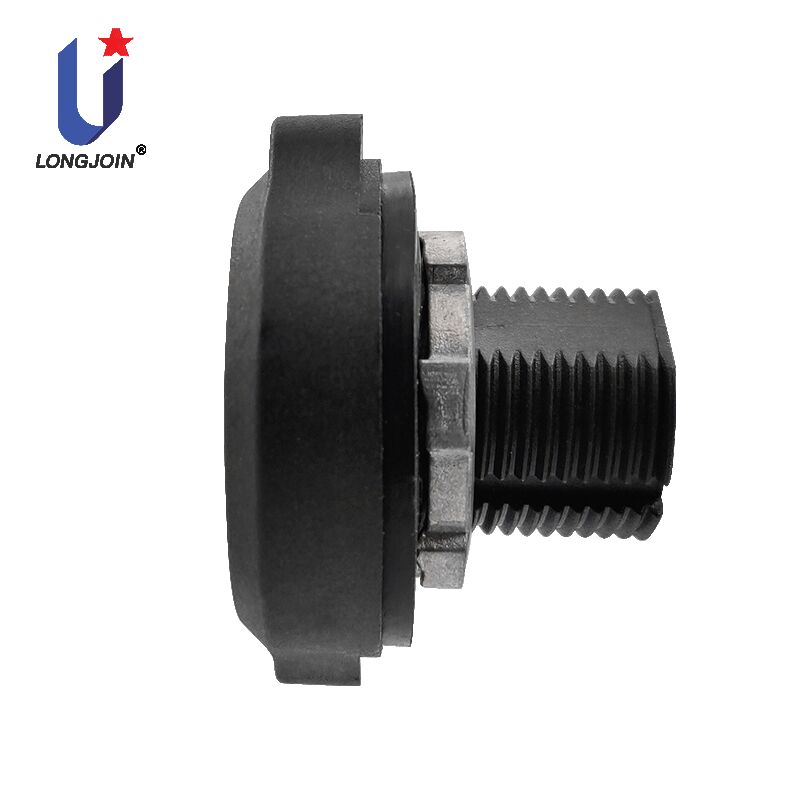

ZHAGA Socket Book 18 Receptacle Leadless Version 24V DC Auxiliary Power
JL-700W Zhaga Book-18 Receptacle Leadless Version
Jl-700W locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R,Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.
Product Dimensions
Drilling Plan
Product Features
- Standardized interface defined in Zhaga Book-18
- Compact size allowing greater flexibility in luminaire design
- Advanced sealing to achieve IP66 with no mounting screws
- Flexible mounting position, upwards, downwards and sideways facing
- Integrated single gasket that seals to both luminaire and module that minimizes assembling time
Specifications
| Model No. | JL-700W |
|---|---|
| Rated Voltage | 24VDC |
| Power Consumption | 1.5A MAX |
| Related Humidity | 96% |
| Ambient Temperature | -40°C ~ +70 °C |
| IP Rating | IP66 |
| Wires | 20~22AWG, Strip the head 9 ~ 11mm and tin it |
| Certifications | |
Frequently Asked Questions
What is a ZHAGA Socket Book 18 Receptacle Leadless Version?
It is a lead-free interface socket that fully complies with Zhaga Book 18 standard, used for connecting intelligent control modules on LED lighting fixtures without extra wiring.
What are the benefits of the leadless design?
Leadless structure simplifies installation, improves waterproof and dustproof performance, reduces failure points, and ensures more stable electrical connection in outdoor environments.
What is the function of 24V DC auxiliary power?
24V DC auxiliary power provides safe, stable low-voltage power supply for lighting sensors, dimming modules and communication units.
Why is Zhaga Book 18 compliance important?
It ensures universal interface compatibility, allowing plug-and-play replacement of different brand modules, which is convenient for later upgrading and maintenance.
In which lighting applications is this receptacle mainly used?
It is widely used in road lighting, smart street lamps, park lighting, commercial lighting and other intelligent outdoor lighting systems.
