Zhaga Book-18 Receptacle Cable Version Road Regional Commercial Residential Lighting
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-700L |
regional lighting zhaga book
,Residential Lighting zhaga book
,Commercial Lighting zhaga receptacle

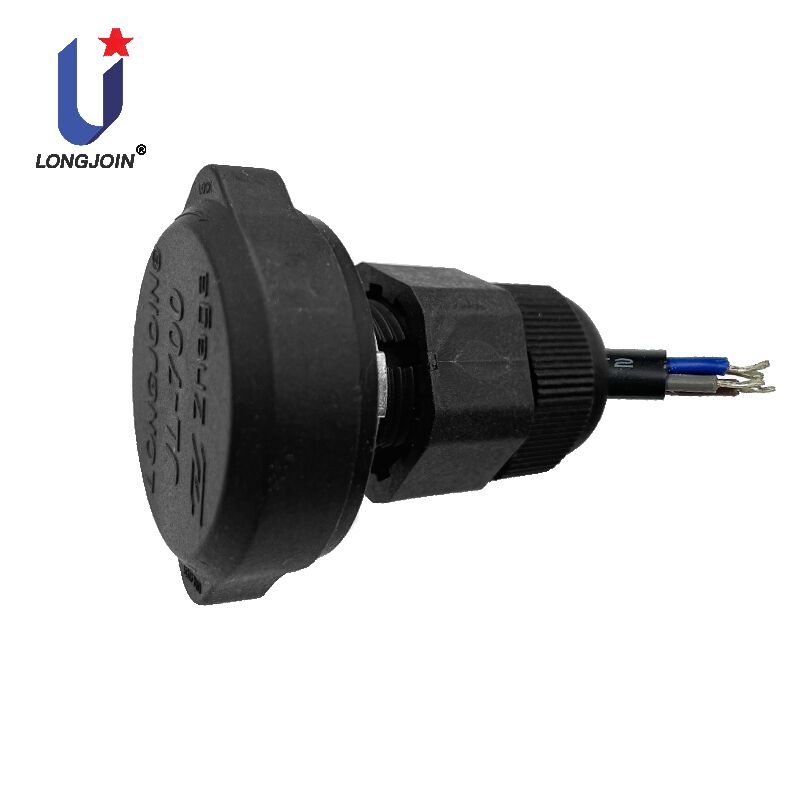

JL-700L Zhaga Book-18 Receptacle Cable version road lighting, regional lighting or commercial and residential lighting.
Product Summary
JL-700L locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R, Z-LEX-C) and has passed relevant certification. This facilitates the development and installation of road lighting, regional lighting, or commercial and residential lighting applications including street lights, industrial and mining lights, corridor lights, wall lights, and more.
- Cable (brown, gray, blue, black)
- Standardized interface defined in Zhaga Book-18
- Compact size allowing greater flexibility in luminaire design
- Advanced sealing to achieve IP66 with no mounting screws
- Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
- Flexible mounting position: upwards, downwards and sideways facing
- Integrated single gasket that seals to both luminaire and module, minimizing assembling time
| Model No. | JL-700L |
|---|---|
| Rated Voltage | 24VDC |
| Related Humidity | 96% |
| Ambient Temperature | -40°C ~ +70°C |
| Wires | AWM 1015, 18/20/22 AWG, 105°C AWM 1007, 18/20/22 AWG, 80°C |
| IP Rating | IP66 |
| Certifications | |
*Conductor specification: #20 conductor has UL certification
It is a standard interface socket that fully complies with Zhaga Book 18 specifications, equipped with an external cable for connecting intelligent sensors and dimming modules to lighting fixtures.
The cable structure allows flexible wiring, longer installation distance, better adaptability to different lamp structures, and easier on-site installation and later maintenance.
Zhaga Book 18 provides a unified mechanical and electrical interface, ensuring interchangeability of modules from different brands and supporting convenient upgrade of intelligent lighting systems.
It is widely used in road lighting, regional public lighting, commercial lighting, residential lighting, courtyard and community lighting projects.
It has stable signal transmission, good waterproof and dustproof performance, high compatibility, and reliable long-term operation in outdoor environments.
