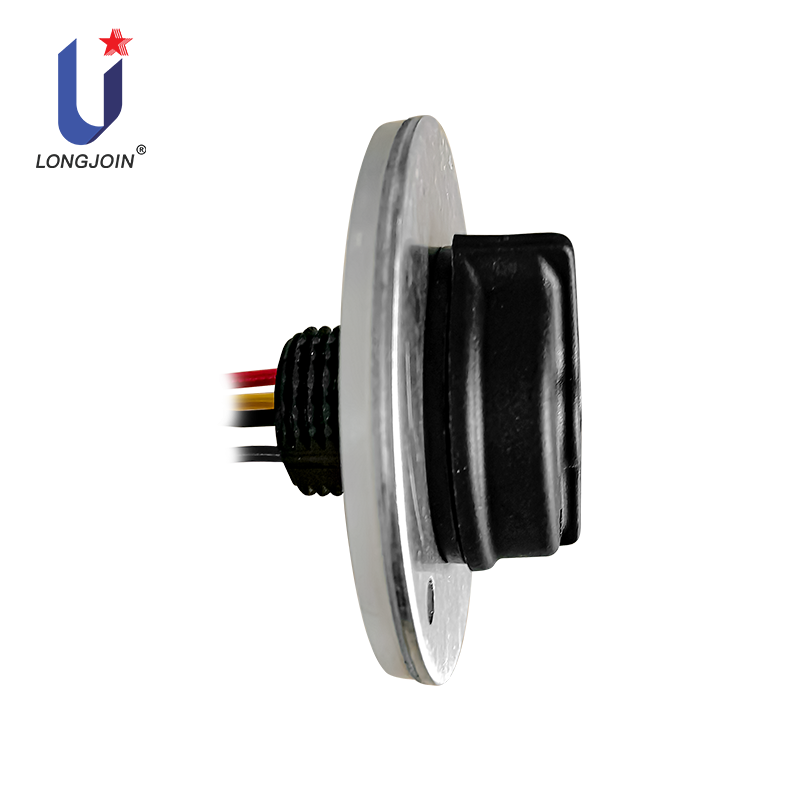

Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme Smart City Infrastructure
The JL-700M-K4 Z10 Lock ZHAGA Socket is a North American market-oriented standardized lighting interface solution, specially optimized for professional 0-10V dimming control systems. Combining authoritative Z10 lock structure and ZHAGA standard interface specifications, this industrial-grade socket perfectly adapts to USA outdoor and indoor lighting engineering standards, serving as a core connecting component for intelligent upgrading of road lighting, regional public lighting, residential and commercial lighting equipment.
Supporting mature and stable 0-10V analog dimming technology, this socket enables seamless brightness adjustment, real-time equipment monitoring, and system communication linkage for LED luminaires. It supports modular function expansion and centralized system management, effectively solving the problems of inconsistent interfaces, unstable dimming performance and difficult equipment iteration in traditional North American lighting projects. It is a reliable standardized accessory for new construction and renovation of smart lighting infrastructure in the United States.
JL-700M-K4 Z10 Lock Socket, USA 0-10V Dimming Scheme
Z10 standard JL-700M socket is designed for 0-10V dimming applications, enabling development of standardized equipment suitable for road lighting, area lighting, and residential lighting applications. Based on equipment configuration, these systems can implement monitoring, communication, and control functions using 0-10V dimming technology.
Product Dimensions
Drilling Plan
Product Features
- Z10 standard interface for 0-10V dimming applications
- Compact size suitable for various luminaire designs
- Advanced sealing technology achieves IP66 rating without installation screws
- Expandable solution: compatible with Φ40-80mm expansion controllers using same connection interface in central management systems
- Flexible installation positions: top, bottom, or side mounting on luminaires
- Integrated single gasket seals both luminaires and modules to minimize assembly time
Specifications
| Model No. | JL-700M-K4 |
|---|---|
| Relative Humidity | 96% |
| Ambient Temperature | -40°C ~ +70°C |
| Wires | AWM 1015, 18/20/22 AWG, 105°C AWM 1007, 18/20/22 AWG, 80°C |
| IP Rating | IP66 |
| Certifications | |
Conductor specification: #20 conductor has UL certification
Frequently Asked Questions
Q1: What is the Z10 Lock ZHAGA Socket tailored for US smart city lighting?
A1: It is a lock-type standardized ZHAGA interface socket designed for North American municipal lighting projects, built with a dedicated 0-10V analog dimming circuit. Following US outdoor electrical safety norms and ZHaga unified interface dimensions, it acts as a core connection component for smart streetlights, roadway LED fixtures and urban IoT lighting infrastructure, realizing power supply and analog dimming signal transmission in one port.
Q2: What benefits does the Z10 lock structure bring to outdoor US urban installations?
A2: The proprietary Z10 locking mechanism creates a tight vibration-resistant connection. It prevents loosening from highway traffic vibration, seasonal thermal expansion and strong wind common across US outdoor environments. Compared with ordinary snap-fit sockets, it delivers consistent contact stability year-round and avoids intermittent dimming failures caused by loose plugs.
Q3: How does the built-in 0-10V dimming scheme work with US smart city lighting systems?
A3: The integrated 0-10V analog dimming channel matches mainstream US lighting control systems. It receives analog dimming commands from street light controllers, photocells and city central management platforms, supporting smooth brightness adjustment from full brightness down to standby dim mode. It works independently alongside standard ZHAGA power circuits without signal interference.
Q4: Is this Z10 Lock ZHAGA Socket compliant with North American municipal project requirements?
A4: Yes. The product meets US outdoor lighting electrical specifications and universal ZHAGA interoperability standards. It supports cross-brand compatibility with all ZHAGA-certified US-market LED luminaires and control modules, and uses weatherproof housing rated for varied US climate zones including hot southern regions, snowy northern areas and coastal humid environments.
Q5: What core value does this socket provide for US smart city infrastructure construction?
A5: It unifies lighting connection and dimming functions to simplify on-site wiring during new city builds and streetlight retrofits. The lock structure cuts long-term maintenance visits for municipal teams, while the 0-10V dimming system helps cities meet energy-saving regulations. Its standardized design also allows easy later upgrades of sensing and communication modules without replacing lamp housings.
