Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme

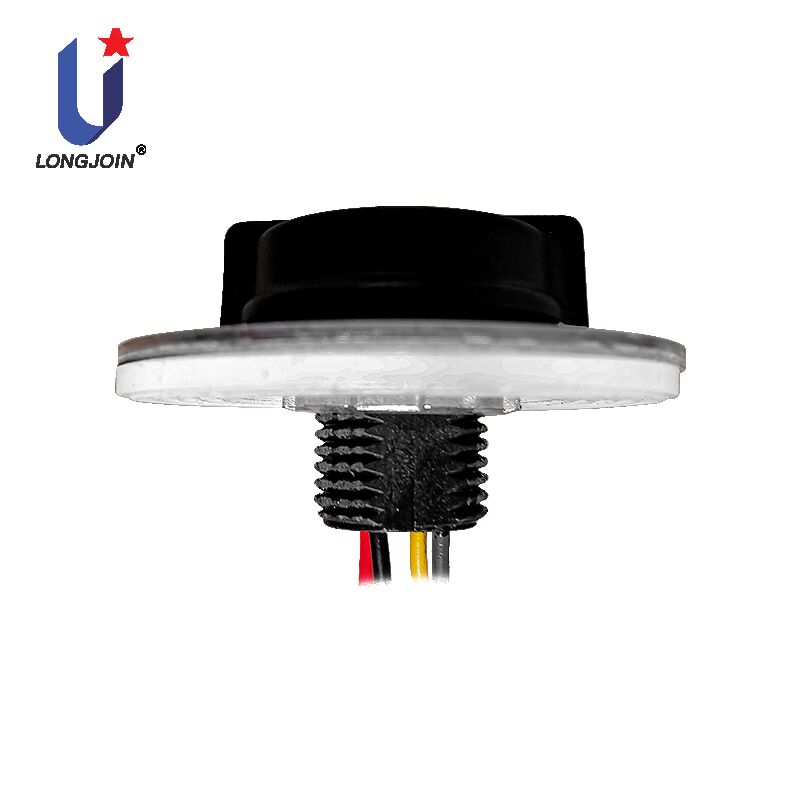

Z10 standard JL-700M socket is designed for 0-10V dimming applications, enabling development of standardized equipment suitable for road lighting, area lighting, and residential lighting applications. Based on equipment configuration, these systems can implement monitoring, communication, and control functions using 0-10V dimming technology.

• Z10 standard interface for 0-10V dimming applications
• Compact size suitable for various luminaire designs
• Advanced sealing technology achieves IP66 rating without installation screws
• Expandable solution: compatible with Φ40-80mm expansion controllers using same connection interface in central management systems
• Flexible installation positions: top, bottom, or side mounting on luminaires
• Integrated single gasket seals both luminaires and modules to minimize assembly time

Model No.	JL-700M-K4
Relative Humidity	96%
Ambient Temperature	-40°C ~ +70°C
Wires	AWM 1015, 18/20/22 AWG, 105°C AWM 1007, 18/20/22 AWG, 80°C
IP Rating	IP66
Certifications

Conductor specification: #20 conductor has UL certification

It is a professional lighting control socket model JL-700M-K4 that integrates US-standard Z10 lock structure and ZHAGA interface, designed for intelligent outdoor lighting control applications.

The Z10 locking structure provides stable mechanical connection with anti-loosening, waterproof, and shockproof performance, fully complying with North American outdoor lighting standards.

It utilizes the 0-10V dimming scheme, which provides stable, universal dimming capability and enables smooth, flicker-free brightness adjustment for LED lighting fixtures.

This combination meets US market interface specifications while supporting modular intelligent control systems, ensuring high compatibility and interchangeability of sensors and dimming modules.

It is primarily used in US-standard road lighting, courtyard lighting, park lighting, residential community lighting, and commercial outdoor lighting projects.
