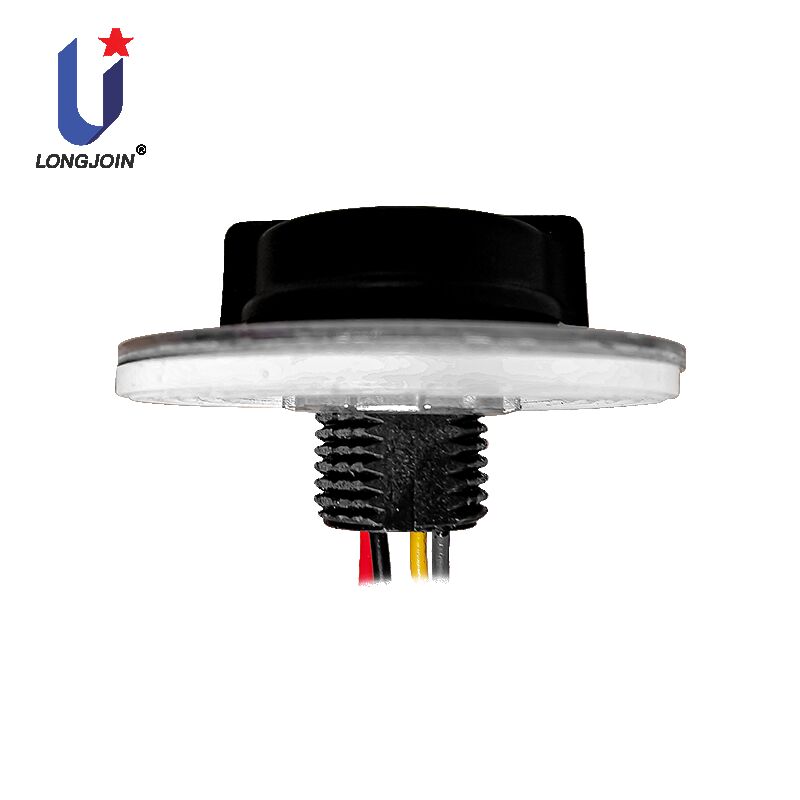

Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme Smart City Infrastructure
|
Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme Smart City Infrastructure
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-700M-K4 |
Product Details
Related Humidity:
96%
Ambient Temperature:
-40°C ~ +70 °C
Wires:
AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C
IP:
IP66
Certifications:
RoHS,RU,CE,CB,UKCA,REACH
Real-world Scenarios):
Smart City Infrastructure
Highlight:
ZHAGA socket 0-10V dimming
,JL-700M-K4 Z10 lock socket
,ZHAGA socket USA dimming scheme
Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description
JL-700M-K4 Z10 Lock ZHAGA Socket USA 0-10V Dimming Scheme
Z10 standard JL-700M socket is designed for 0-10V dimming applications, ideal for developing standardized equipment suitable for road lighting, area lighting, and residential lighting systems. These devices can incorporate monitoring, communication, and control functionalities based on the 0-10V dimming protocol.
Product Dimensions
Drilling Plan
Product Features
- Z10 standard interface for 0-10V dimming applications
- Compact design suitable for various luminaire types
- Advanced sealing technology achieves IP66 rating without installation screws
- Expandable solution compatible with Φ40-80mm expansion controllers using the same interface
- Flexible installation options: top, bottom, or side mounting on luminaires
- Integrated single gasket seals both luminaire and module to minimize assembly time
Technical Specifications
| Model No. | JL-700M-K4 |
| Relative Humidity | 96% |
| Ambient Temperature | -40°C ~ +70°C |
| Wires | AWM 1015, 18/20/22 AWG, 105°C AWM 1007, 18/20/22 AWG, 80°C |
| IP Rating | IP66 |
| Certifications | |
Conductor specification: #20 conductor has UL certification
