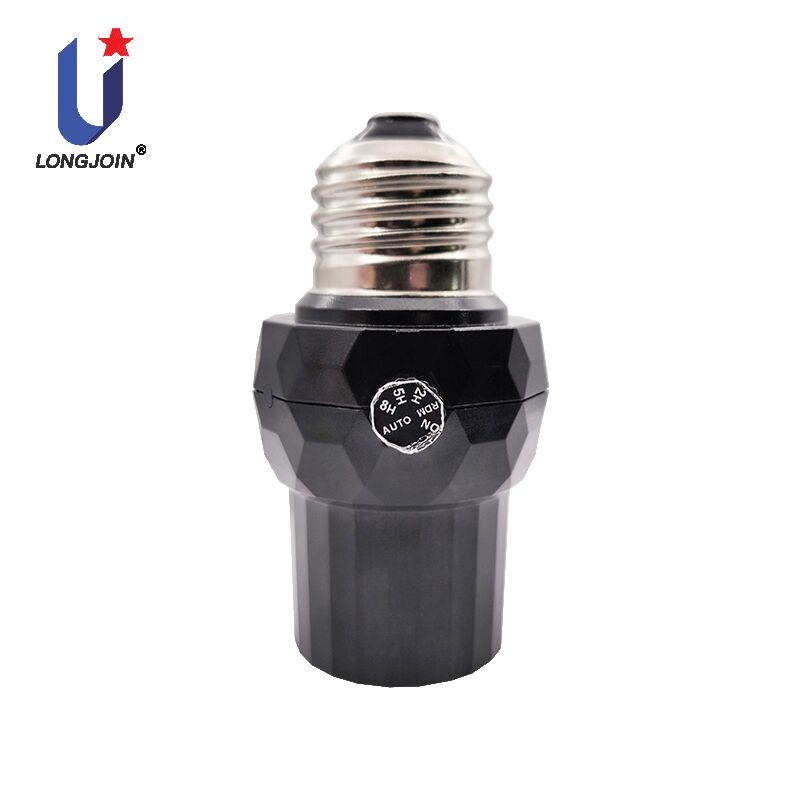

JL-320C Bulb Holder Control Garden Lighting Passage Lighting Doorway Lighting
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-320C |
JL-320C lamp holder with switch
,Garden Lighting lamp holder with switch
,Passage Lighting black bulb holder
JL-320C Bulb Holder control garden lighting,passage lighting,doorway lighting
Product Summary
The JL-320C light controller product is a smart light controller developed based on the E26 adaptor. It uses a light sensor to detect ambient light level, to switch the bulb depends to user's setting with the rotating gear.
Product size
Product Features
-
Wide voltage:90-305VAC
-
IR-filtered light sensor to prevent mis-operation
-
E26 interface
-
Small size
-
Night watch - Dusk to Dawn
-
Self-cycling prevention
-
2h/5h/8h/Random delayed-off setting gear
Specifications
|
Model No. |
JL-320C |
|
Rated Voltage |
120VAC & 240VAC |
|
Applicable Voltage Range |
105~305VAC |
|
Rated Frequency |
50/60Hz |
|
Rated Loading |
150W Tungsten 2A@120VAC e-Ballast 1A@240VAC e-Ballast |
|
6 functions |
ON:Always On Auto:Turn On/Off according to ambient light level 2h:Keep On for 2 hours after turned on by auto 5h:Keep On for 5 hours after turned on by auto 8h:Keep On for 8 hours after turned on by auto RDM:Keep On for 2h/5h/8h randomly after turned on by auto |
|
Sensor type |
IR-filtered phototransistor |
|
Turn on level |
20 Lx(±5 Lx) |
|
Turn off level |
Initial : 50±5 Lx *Once reflected light (Δ) is detected : 50+Δ±5 Lx |
|
Reflected light Compensation upper limit |
1200±100 Lx |
|
Initialization stage |
5s (On) |
|
Adaptor |
E26 |
|
Turn on delay |
5s |
|
Failure mode |
Fail-Off |
|
Operating Temperature |
-40℃~70℃ |
|
Related Humidity |
96% |
|
FCC |
Class B |
|
Zero Crossing Control |
Built-in |
|
Certifications |
|
