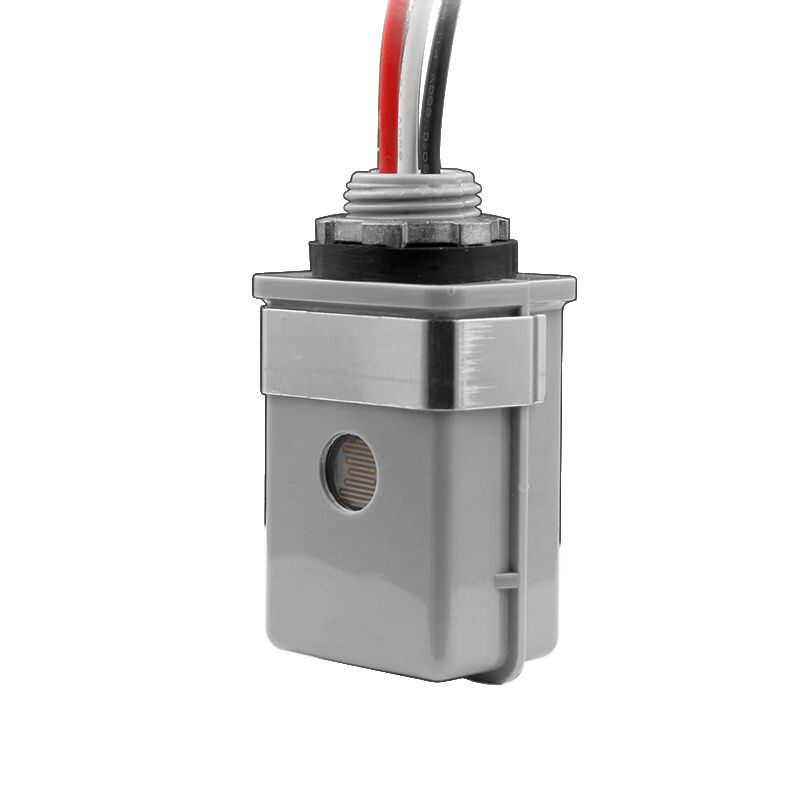

JL-118 Direct Wire In Thermal Photocontrol Passage Doorway Lighting Photoelectric Switch
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-118 |
JL-118 photoelectric switch
,Doorway Lighting photoelectric switch
,Passage Lighting photo electric switch
JL-118 Direct Wire-In Thermal photocontrol passage lighting and doorway lighting photoelectric switch
Product Summary
The photoelectric switch JL-118 series is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
This product is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.
Its swivel version is easy to adjust the direction after installation.
Product size
Product Features
-
Time Delay 30~120s
-
Ambient Temperature: -40℃ ~ +70℃
-
Swivel optional
-
Screw Thread(NPT 1/2") & Zinc Alloy Nut
-
UV stabilized PC enclosure
Specifications
|
Model No. |
JL-118A(V) |
JL-118B(V) |
JL-118C(V) |
JL-118D(V) |
|
Rated Voltage |
120VAC |
220~240VAC |
208~277VAC |
277VAC |
|
Applicable Voltage Range |
— |
200~305VAC |
— |
|
|
Rated Frequency |
50/60Hz |
|||
|
Rated Loading |
1800W Tungsten,1100VA Ballast |
|||
|
Power Consumption |
1.5W Max. |
|||
|
Operate Levels |
10~20Lx Turn-On / 30~60Lx Turn-Off |
|||
|
Ambient Temperature |
-40℃ ~ +70℃ |
|||
|
Related Humidity |
96% |
|||
|
Fail Mode |
Fail-On |
|||
|
Lead Wire |
AWG#16,AWM3321 4"min |
|||
|
Certifications |
|
|||
