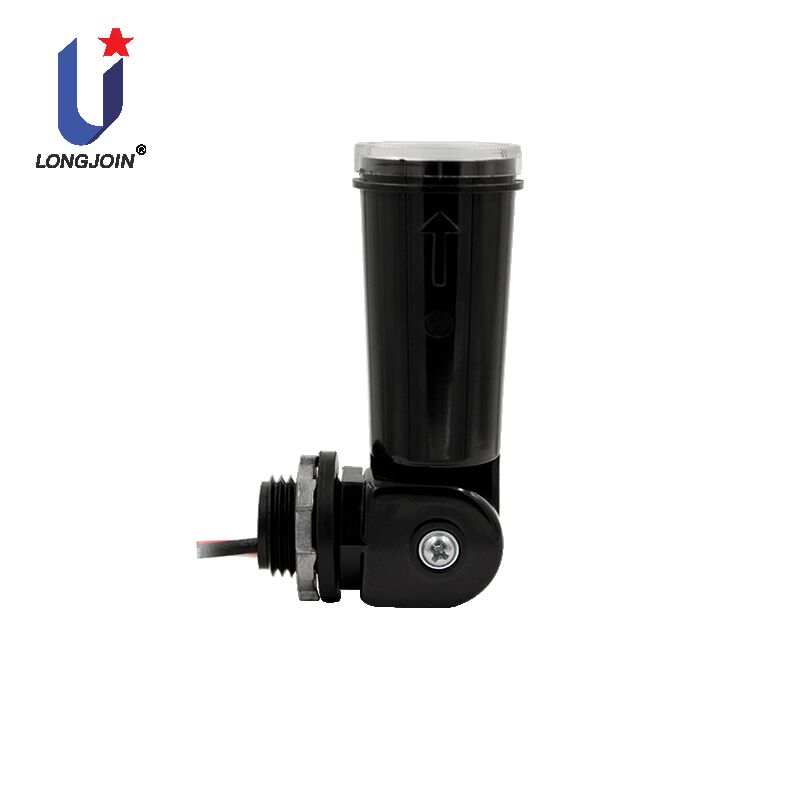

JL-104 Direct Thermal Photocontrol Swivel Integrated Passage And Doorway Lighting
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-104 |
JL-104 thermal photocontrol
,Doorway Lighting thermal photocontrol
,Passage Lighting thermal photo control
JL-104 Direct Thermal Photocontrol Swivel integrated passage lighting and doorway lighting
Product Summary
The Photocontrol JL-104 is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
This product is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.
JL-104 has a gathered swivel with the sensor/switch body for convenient direction adjustment after installation.
This product is certified to the Standard for Non-industrial Photocontrol for Lighting Control UL773A and applicable Canadian Standards.
Product size
Product Features
-
Time Delay 20~120s
-
Ambient Temperature: -40℃ ~ +70℃
-
Swivel integrated
-
Screw Thread (NPT 1/2") & Zinc Alloy Nut
-
UV stabilized PC enclosure
Specifications
|
Model No. |
JL-104A |
JL-104B |
JL-104C |
JL-104D |
JL-104EE |
|
Rated Voltage |
120VAC |
220~240VAC |
208~277VAC |
277VAC |
347VAC |
|
Applicable Voltage Range |
— |
200~305VAC |
— |
||
|
Rated Frequency |
50/60Hz |
||||
|
Rated Loading |
1800W Tungsten,1100VA Ballast |
2000W Tungsten, 2000VA Ballast |
|||
|
Power Consumption |
1.5W Max. |
||||
|
Operate Levels |
10~20Lx Turn-On / 30~60Lx Turn-Off |
||||
|
Ambient Temperature |
-40℃ ~ +70℃ |
||||
|
Related Humidity |
96% |
||||
|
Fail Mode |
Fail-On |
||||
|
Lead Wire |
AWG#16,AWM3321 4"min |
||||
|
Certifications |
|
||||
