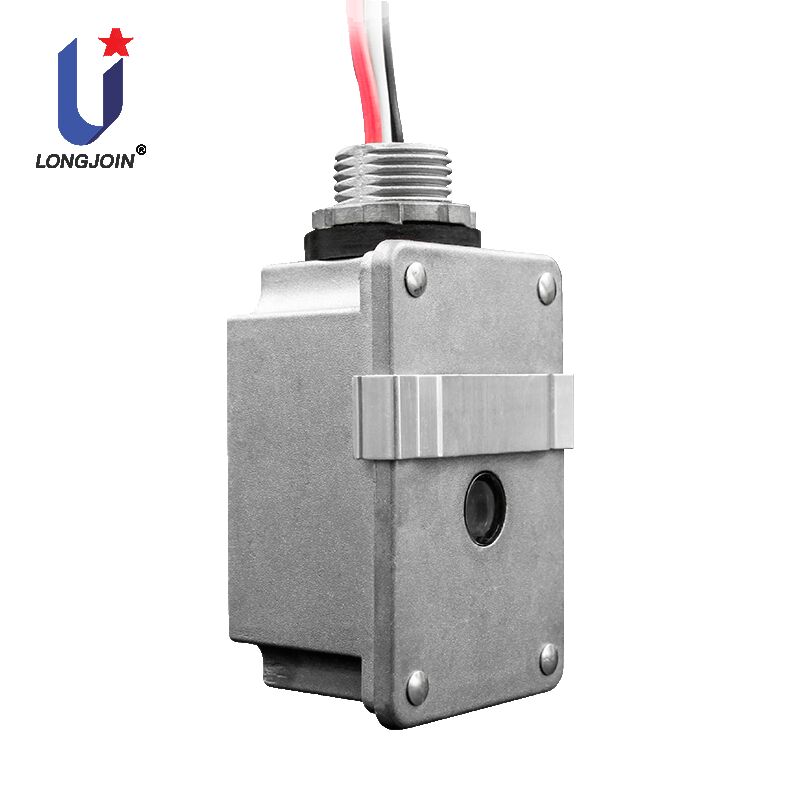

JL-116 Direct Wire In Thermal Photocontrol Aluminum Die Cast Enclosure
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-116 |
JL-116 thermal photocontrol
,thermal photocontrol 120V
,thermal photo control 220v
JL-116 Direct Wire-in Thermal Photocontrol Aluminum Die-cast Enclosure
Product Summary
The photocontrol JL-116 is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
It is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.
It is convenient for direction adjustment after installation once an additional swivel is applied.
Product size
Product Features
-
Time Delay 30~120s
-
Ambient Temperature: -40℃ ~ +70℃
-
Additional Swivel Available
-
Screw Thread (NPT 1/2")& Zinc Alloy Nut
-
Aluminum Die-cast Enclosure
-
Heavy Duty up to 2000VA
Specifications
|
Model No. |
JL-116A(*V) |
JL-116B(*V) |
JL-116C(*V) |
JL-116D(*V) |
|
Rated Voltage |
120VAC |
220~240VAC |
208~277VAC |
277VAC |
|
Applicable Voltage Range |
— |
200~305VAC |
— |
|
|
Rated Frequency |
50/60Hz |
|||
|
Rated Loading |
2000W Tungsten,2000VA Ballast |
|||
|
Power Consumption |
1.5W Max. |
|||
|
Operate Levels |
10~20Lx Turn-On / 30~60Lx Turn-Off |
|||
|
Ambient Temperature |
-40℃ ~ +70℃ |
|||
|
Related Humidity |
96% |
|||
|
Fail Mode |
Fail-On |
|||
|
Lead Wire |
AWG#16,AWM3321 4"min |
|||
|
Certifications |
|
|||
