JL-428 Add A Rotating Handle For Directional Tracking Zero Cross FCC
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-428 |

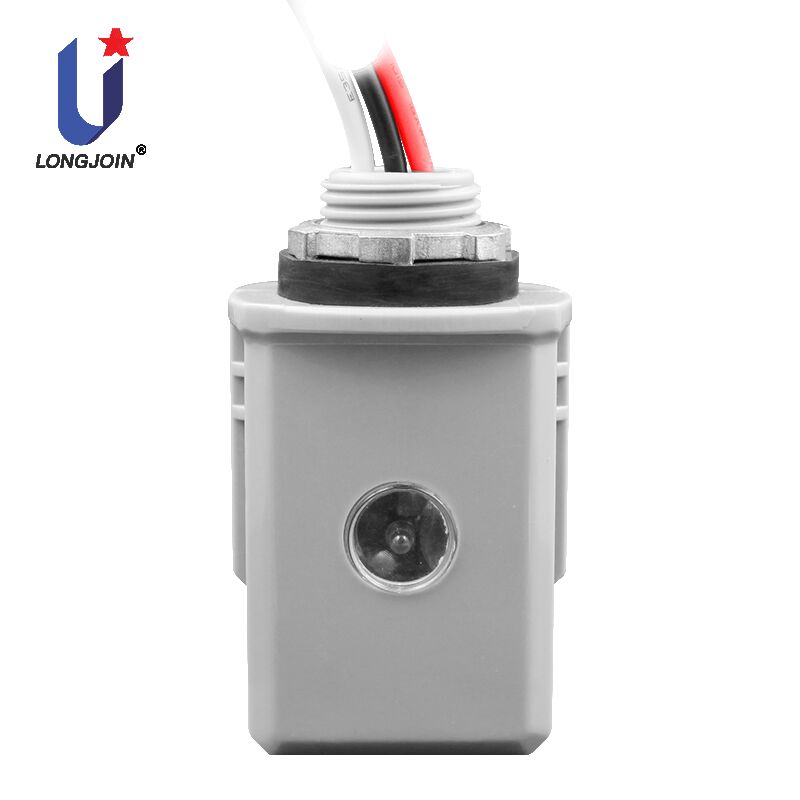

JL-428 Light Controlled Switch
,RoHS Light Controlled Switch
,305V remote light switch
JL-428 Add a rotating handle for directional tracking,Zero-cross,FCC
Product Summary
The photocontrol JL-428 series is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
This product is designed with electronic circuits with MCU incorporated. Its quicker response with time delay of 5 seconds offers easy-to-test feature while avoiding redundancy operation due to spotlight or lightening during night time. Especially, it supports midnight sleeping and reburning before dawn.
Optional Z version has zero-cross technology built-in for longer work life, while conforms FCC regulations.
Further, JL-428 provides surge protection feature up to 235J/5000A.
Product size
Product Features
-
UL773A direct wire-in
-
90~305V Multi-Volts
-
Fail-On / Fail-Off Modes Available
-
Swivel Incorporated
-
IR-Filtered Phototransistor Sensor
-
Midnight Sleeping Available
-
IP54 / IP65 protections Available
-
Instant / Delayed Switching Available
Specifications
|
Model No. |
JL-428C |
JL-428CZ |
|
Rated Voltage |
120~277VAC |
|
|
Available Voltage Range |
105~305VAC |
|
|
Rated Frequency |
50/60Hz |
|
|
Rated Loading |
1000W Tungsten 1200VA Ballast @120VAC 1800VA Ballast @208-277VAC 8A e-Ballast @120VAC 5A e-Ballast @208-277VAC |
|
|
Power Consumption |
0.5W Max. |
|
|
Operate Levels |
16Lx Turn-On / 24Lx Turn-Off (customizable) |
|
|
Time-delay |
5-10s (customizable) |
|
|
Ambient Temperature |
-40℃ ~ +70℃ |
|
|
Related Humidity |
96% |
|
|
Leads Length |
AWG #16,AWM 1015 4" min |
|
|
Failure Mode |
C4:Fail-Off C5:Fail-On |
|
|
Surge Protection (MOV) |
● |
|
|
Zero Crossing |
● |
|
|
FCC |
● |
N/A |
|
Certifications |
|
|
