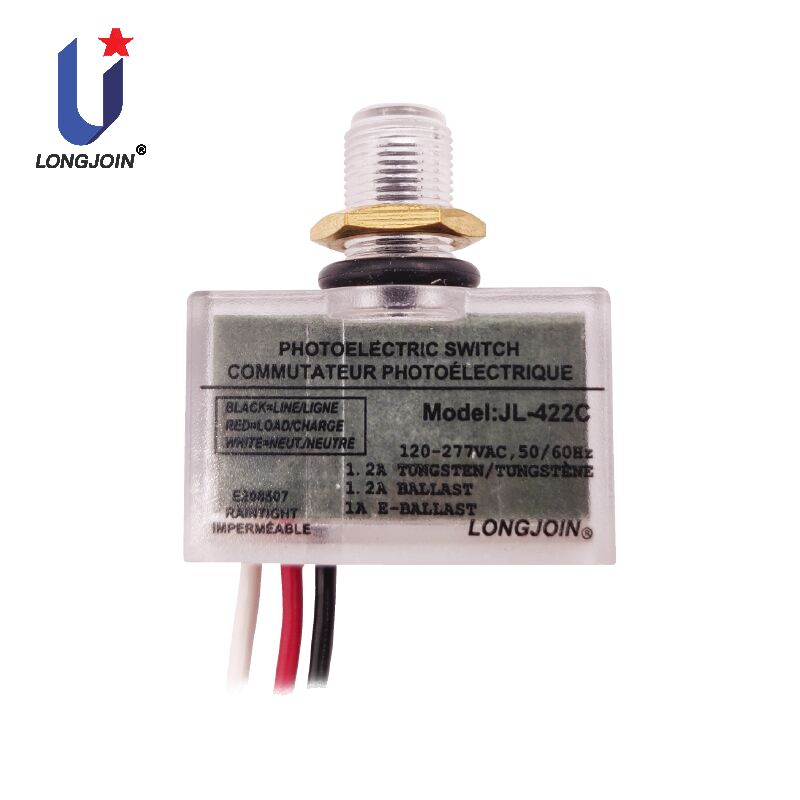

JL-422C Micro Advanced Version Miniature Direct Wire In Digital Photocontrol
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-422C(R) |
JL-422C digital photocontrol
,Miniature digital photocontrol
,305V digital photo control
JL-422C Micro Advanced Version,Miniature Direct Wire-In Digital Photocontrol
Product Summary
The photocontrol JL-422C(R) is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
This product is designed with electronic circuits. Its quicker response with time delay of 3-10 seconds offers easy-to-test feature, while a miniature profile supports most smaller fixtures.
Further, a preset 3-10 seconds time-delay might avoid redundancy operation due to spotlight or lightning during the night time
This product has been listed by UL LLC and is comply with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.
Its R version provides a separated sensor assembly.
Product size
Product Features
-
UL773A direct wire-in
-
120~277V Multi-Volts
-
IR-Filtered Phototransistor Sensor
-
IP65 protection
-
Miniature size
-
Interference lighting filtering
-
Zero crossing function
Specifications
|
Model No. |
JL-422C |
JL-422CR |
|
Rated Voltage |
120~277VAC |
|
|
Available Voltage Range |
105~305VAC |
|
|
Rated Frequency |
50/60Hz |
|
|
Rated Loading |
1.2A Tungsten / Ballast 1A e-Ballast |
|
|
Power Consumption |
1W Max. |
|
|
On Levels |
16 Lx(± 5) |
|
|
Off Levels |
Initial: 24 Lx(±5) *Once reflected light(△)is detected:Δ+24±5 Lx |
|
|
Fail Mode |
Fail-Off |
|
|
Delayed |
5-10S(Customizable) |
|
|
Reflected light compensation upper limit |
1800Lx |
|
|
Ambient Temperature |
-40℃ ~ +70℃ |
|
|
Related Humidity |
96% |
|
|
Leads Length |
AWG #18, AWM1430 |
|
|
Certifications |
|
|
