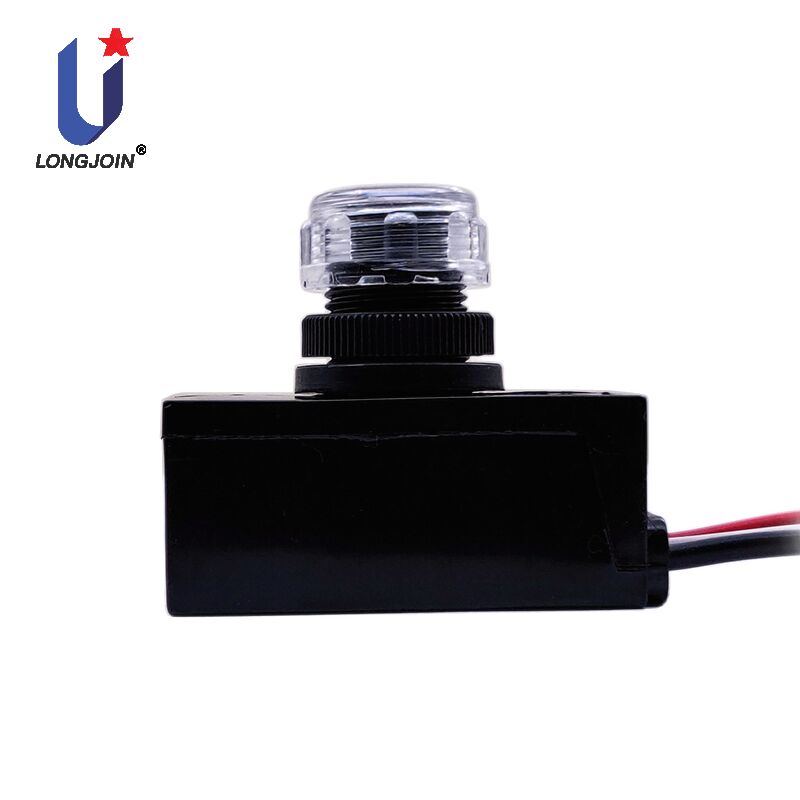

JL-413C Improved Electronic Direct Wire In Photocontrol Passage Lighting
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-413C |
JL-413C Light Controlled Switch
,Passage Lighting Light Controlled Switch
,Passage Lighting photoelectric switch
JL-413C Improved Electronic Direct Wire-In Photocontrol,passage lighting,
Product Summary
The photocontrol JL-413C is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
This product is designed with electronic circuits. Its quicker response with time delay of 3-10 seconds offers easy-to-test feature. Especially, model JL-413C provides a higher power factor performance.
Further, a preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.
Product size
Product Features
-
Improved Power Factor*
-
Wire outlets sealed for IP65+
-
Addional Clear Cap for raintight available
-
3~10s Time-delay preventing redundant turning-off caused by headlights or lightning
Note: *compared to JL-403C
Specifications
|
Model No. |
JL-413C |
|
Rated Voltage |
120~277VAC |
|
Available Voltage Range |
105~305VAC |
|
Rated Frequency |
50/60Hz |
|
Rated Loading |
1000W Tungsten 1200VA Ballast @120VAC 1800VA Ballast @208-277VAC 8A e-Ballast @120VAC 5A e-ballast @208-277VAC |
|
Power Consumption |
0.5W Max. |
|
Operate Levels |
10~20Lx Turn-On / 30~80Lx Turn-Off |
|
Ambient Temperature |
-40℃ ~ +70℃ |
|
Related Humidity |
96% |
|
Leads Length |
AWG #16,AWM 1015 4" min |
|
Failure Mode |
Fail-Off |
|
Rainproof Cap |
Optional |
|
Surge Protection |
460Joule / 10000Amp (MOV) |
|
Certifications |
|
