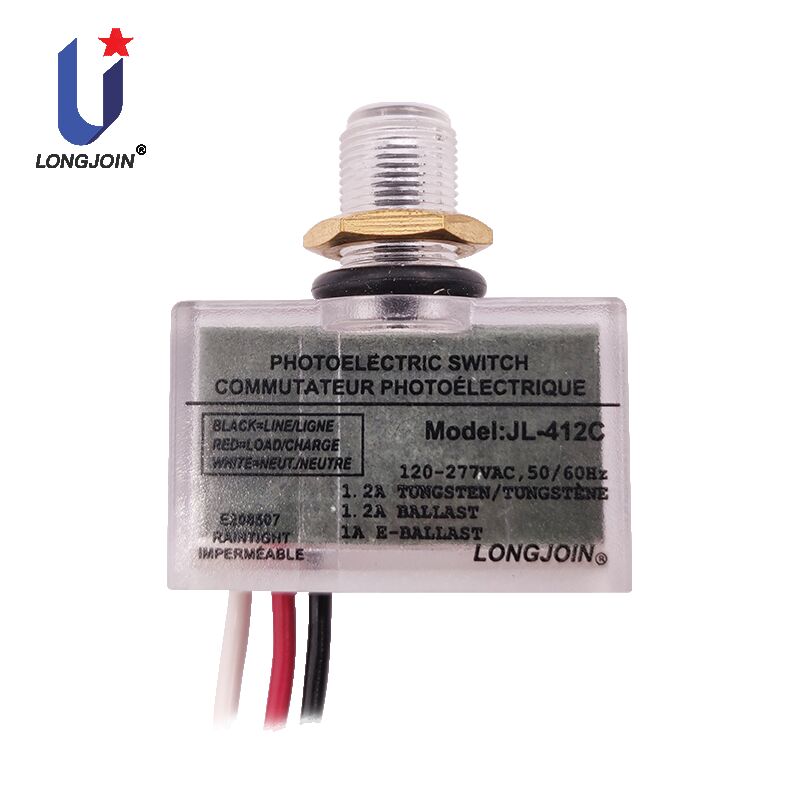

JL-412C Miniature Improved Electronic Direct Wire In Photocontrol Micro Advanced Version
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-412C(R) |
JL-412C Wire In Photocontrol
,105v Wire In Photocontrol
,305V Wire In Photo control
JL-412C Miniature Improved Electronic Direct Wire-In Photocontrol,Micro Advanced Version
Product Summary
The photocontrol JL-412C(R) is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
This product is designed with electronic circuits. Its quicker response with time delay of 3-10 seconds offers easy-to-test feature, while a miniature profile supports most smaller fixtures.
Further, a preset 3-10 seconds time-delay might avoid redundancy operation due to spotlight or lightning during the night time
This product has been listed by UL LLC and is comply with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.
Its R version provides a separated sensor assembly.
Product size
Product Features
-
UL773A direct wire-in
-
120~277V Multi-Volts
-
IR-Filtered Phototransistor Sensor
-
IP65 protection
-
Miniature size
Specifications
|
Model No. |
JL-412C |
JL-412CR |
|
Rated Voltage |
120~277VAC |
|
|
Available Voltage Range |
105~305VAC |
|
|
Rated Frequency |
50/60Hz |
|
|
Rated Loading |
1.2A Tungsten / Ballast 1A e-Ballast |
|
|
Power Consumption |
1W Max. |
|
|
On-off Levels |
10~30Lx Turn-On / 30~80Lx Turn-Off |
|
|
Ambient Temperature |
-40℃ ~ +70℃ |
|
|
Related Humidity |
96% |
|
|
Leads Length |
AWG #18, AWM1430 |
|
|
Certifications |
|
|
