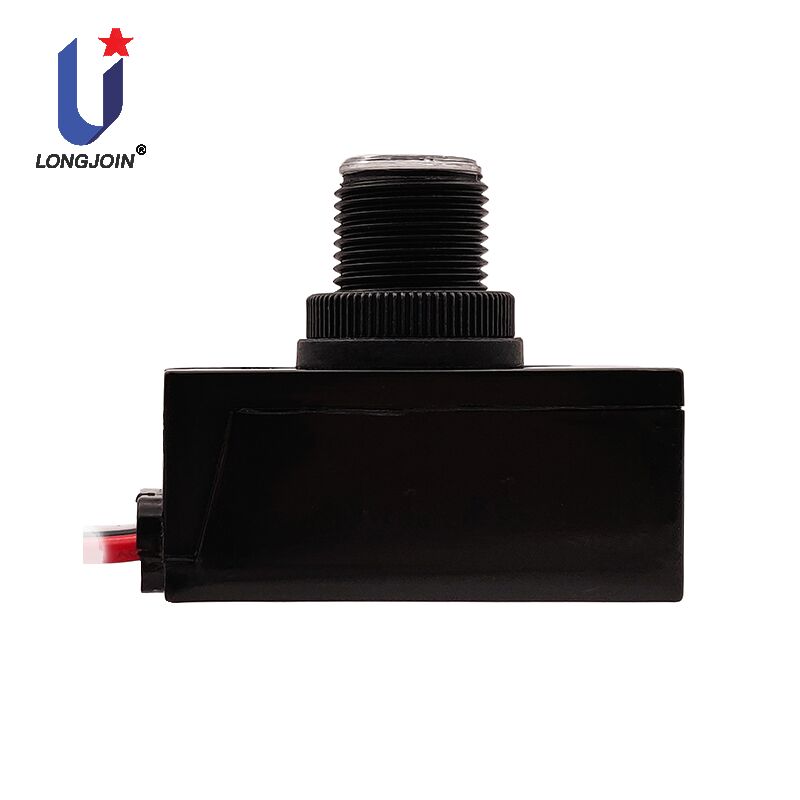

JL-403C Direct Wire-In Electronic Photocontrol doorway lighting UL certification

Product Summary

The photocontrol JL-403C is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

This product is designed with electronic circuits. Its quicker response with time delay of 3-10 seconds offers easy-to-test feature. Especially, model JL-403C provides a wide voltage range for customer applications under almost power supplies.

Further, a preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time

This product has been listed by UL LLC and is comply with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.

Product size

Product Features

• 3~10s Time-delay  preventing redundant turning-off caused by headlights or lightning

Specifications

Model No.	JL-403C	JL-403CM	JL-403CW
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	500W Tungsten, 850VA Ballast   5A e-Ballast
Power Consumption	1.8W@120VAC
Operate Levels	10~20Lx   Turn-On / 30~80Lx   Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads	AWG #18, AWM 1015 4" min
Failure Mode	Fail-Off
Rainproof Cap	Optional
Certifications
