Sensor Integration Zhaga Book 18 Zhaga Controller Light Sensing Pwm Roads Lawns Courtyards
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-731A |
roads light sensing
,roads zhaga book 18
,lawns light sensing

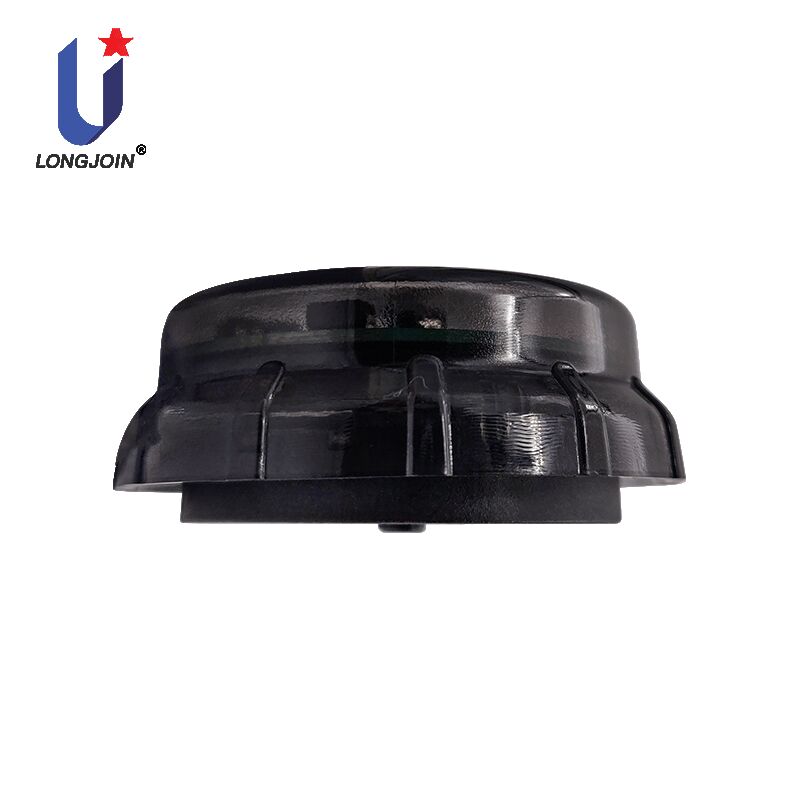

JL-731A Zhaga Book-18 Zhaga Controller light-sensing,PWM roads, lawns, courtyards, and parks
Product Summary
JL-731A series light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard, which can output PWM dimming signals. All models have built-in photosensitive sensors. The light controller is suitable for lighting scenes such as roads, lawns, courtyards, and parks.
Product size
Product Features
-
DC power supply, low power consumption
-
ZHAGA BOOK18 interface standard
-
Small size, suitable for installation in most lamps
-
PWM dimming interface
-
Interference lighting filtering
-
Lamp reflected light compensation
-
IP66
Specifications
|
Model |
JL-731A1 |
JL-731A2 |
|
Power Supply |
Rated voltage:12~24VDC Rated current:10mA |
|
|
Power Consumption |
12V/5mA；24V/6mA |
|
|
Sensor Type |
Photosensitive tube |
|
|
Spectral Acquisition Range |
350~1100nm,Peak wavelength 550nm |
|
|
Dimming interface |
Type:PWM |
|
|
Turn on Illuminance |
50Lux(±10) |
|
|
Turn off Illuminance |
Reflected light + 40Lux(±10)after each turn on Lower limit:50+40Lux(±10) Upper limit:6000Lux(±100) |
|
|
Reflected light compensation upper limit |
6000Lux(±100) |
|
|
Initialization |
After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode *1 |
|
|
Turn on delay |
5S |
|
|
Turn off delay |
20S |
|
|
0%~100%；100%~0% Brightness change time |
8S |
|
|
Midnight Dimming |
NC |
Trigger: the average center point of the first ten days (The first day default call night base is 10 hours) Dimming Ratio:50% Duration Ratio:40% Less than 10 days is calculated based on the actual number of days |
|
Energy saving strategy |
NC |
Factory preset |
|
Mechanical Vibration |
IEC60068-2-6 |
|
|
Flammability Level |
UL94-V0 |
|
|
Operating Temperature |
-40℃~70℃ |
|
|
Storage Temperature |
-40℃~85℃ |
|
|
Operating Humidity |
5%RH~99%RH |
|
|
IP Level |
IP66 |
|
|
Certifications |
|
|
Note:
*1:Some of the old versions of the sample program turn off the light by default and maintain 5S after power-on, and then enter the self-sensing operation mode.
FAQs
A: It is a lighting controller that conforms to Zhaga Book 18 standard, equipped with light sensing function and PWM dimming output, used for automatic control of outdoor lighting.
A: Zhaga Book 18 provides a unified mechanical and electrical interface, realizing plug-and-play installation, high compatibility, good waterproof performance and convenient later maintenance.
A: It automatically senses ambient light brightness, turns on the lights at dusk and turns off at dawn, realizing fully automatic control without manual operation and effective energy saving.
A: PWM dimming has high adjustment accuracy, stable output, fast response and good compatibility with LED drivers, realizing stepless and smooth brightness control.
A: It is widely used in roads, lawns, courtyards, parks, residential areas and other outdoor public lighting occasions.
