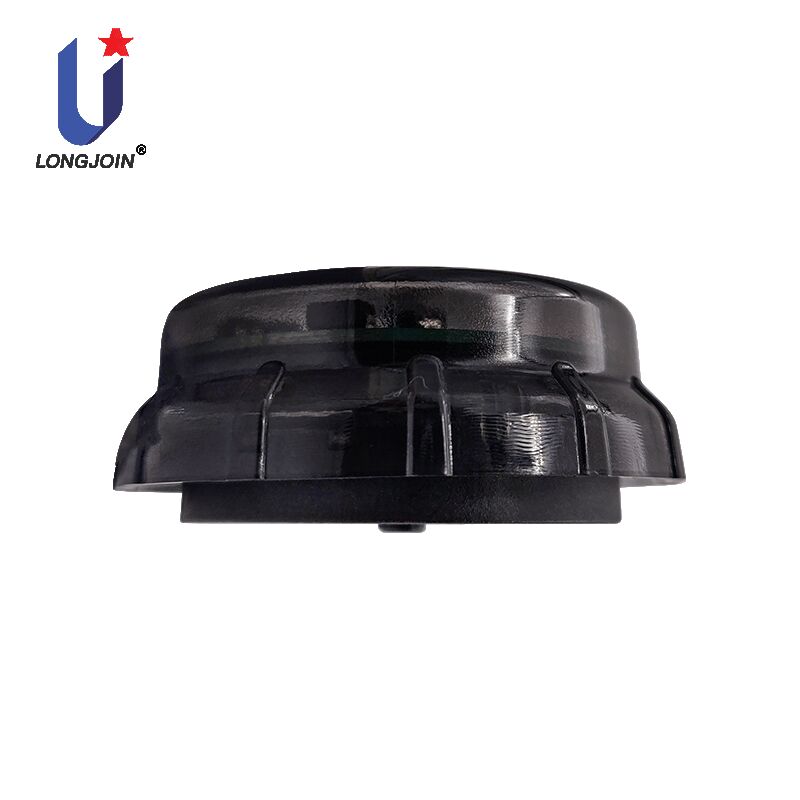

JL-721A Light Sensing DALI2.0 Roads Lawns Courtyards Parks
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-721A |
roads light sensing
,roads zhaga controller
,lawns light sensing
JL-721A light-sensing,DALI2.0,roads,lawns,courtyards,parks
Product Summary
JL-721A series light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard, which can output DALI2.0 dimming signals. All models have built-in photosensitive sensors. The light controller is suitable for lighting scenes such as roads, lawns, courtyards, and parks.
Product size
Product Features
-
DC power supply, low power consumption
-
ZHAGA BOOK18 interface standard
-
Small size, suitable for installation in most lamps
-
DALI2.0 dimming interface
-
Interference lighting filtering
-
Lamp reflected light compensation
-
IP66
Specifications
|
Model |
JL-721A1 |
JL-721A2 |
|
Power Supply |
Rated voltage:12~24VDC Rated current:15mA |
|
|
Power Consumption |
12V/10mA；24V/11mA |
|
|
Sensor Type |
Photosensitive tube |
|
|
Spectral Acquisition Range |
350~1100nm,Peak wavelength 550nm |
|
|
Dimming interface |
DALI2.0 |
|
|
Turn on Illuminance |
50Lux(±10) |
|
|
Turn off Illuminance |
Reflected light + 40Lux(±10)after each turn on Lower limit:50+40Lux(±10) Upper limit:6000Lux(±100) |
|
|
Reflected light compensation upper limit |
6000Lux(±100) |
|
|
Initialization |
After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode *1 |
|
|
Turn on delay |
5S |
|
|
Turn off delay |
20S |
|
|
0%~100%；100%~0% Brightness change time |
8S |
|
|
Midnight Dimming |
NC |
Trigger: the average center point of the first ten days (The first day default call night base is 10 hours) Dimming Ratio:50% Duration Ratio:40% Less than 10 days is calculated based on the actual number of days |
|
Energy saving strategy |
NC |
Factory preset |
|
Mechanical Vibration |
IEC60068-2-6 |
|
|
Flammability Level |
UL94-V0 |
|
|
Operating Temperature |
-40℃~70℃ |
|
|
Storage Temperature |
-40℃~85℃ |
|
|
Operating Humidity |
5%RH~99%RH |
|
|
IP Level |
IP66 |
|
|
Certifications |
|
|
Note:
*1:Some of the old versions of the sample program turn off the light by default and maintain 5S after power-on, and then enter the self-sensing operation mode.
