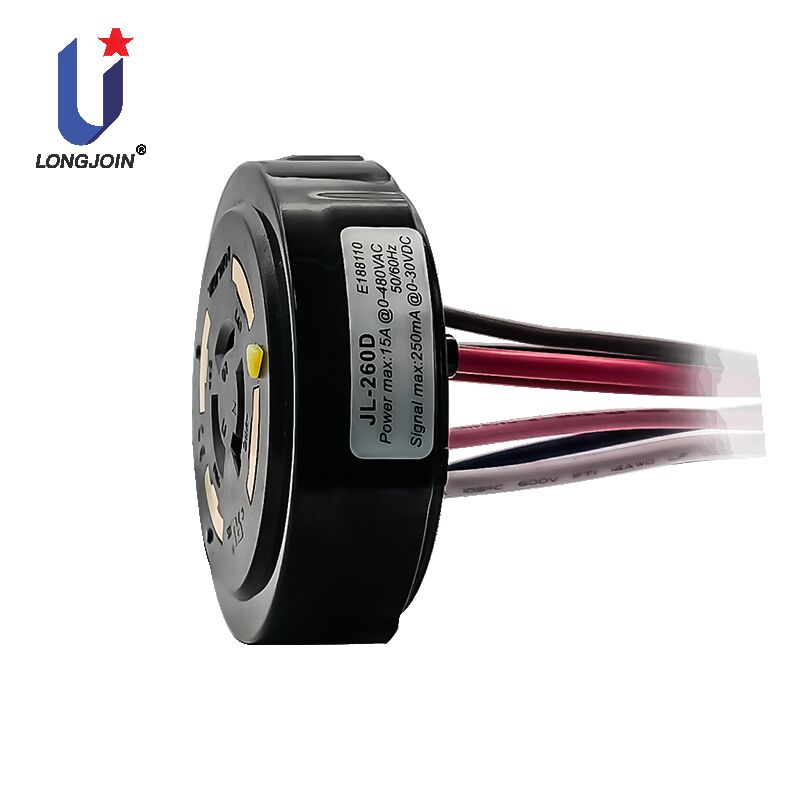

JL-260D Flagship Slim Dimming Receptacle 7P Flagship ultra-thin waterproof rotatable version

Product Summary

This JL-260D series photocontrol receptacle is designed for the lanterns those intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. it conforms newly published ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle.

It offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers 2 or 4 wiring leads at rear side for signal connection.

Especially, it is featured with waterproof self-rotation and 360° limited, while a super compressed height size is offered.

D1 type is an integral structure, with external thread installation.Type D2 is a split structure for internal thread installation.

Product size

Product Features

• Body made from polycarbonate

• Contacts made from phosphor bronze

• Gold pad made from Nickel plated phosphor bronze with gold plating per ASTM B 488

• High light North pointer

Specifications
