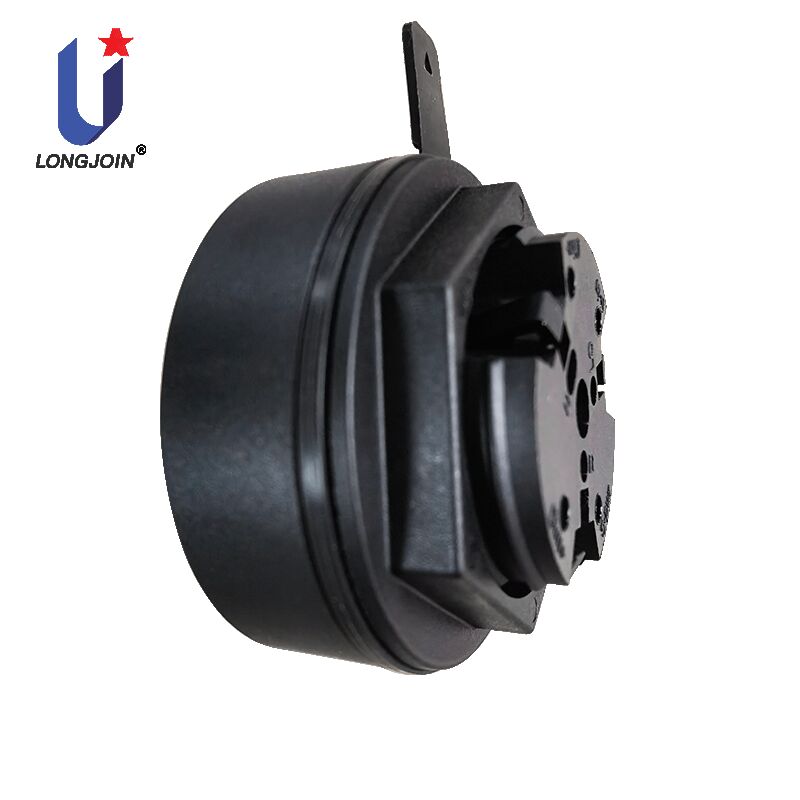

JL-240W Fixed Twist-lock dimming receptacle in line version ANSI c136.41

Product Summary

Jl-240W rotary lock type light controller socket is designed for outdoor lamps, which is used to accept the rotary lock type light controller to control LED lamps.

The product provides 4 gold-plated contact pieces on the top surface, which are suitable for the spring contact pieces of the rotary lock type light controller (ANSI c136.41).

This product meets the requirements of ANSI c136.10, ANSI c136.41 and ANSI / ul773 standards for plug-in and rotary lock type light controllers for area lighting.

Product size

Product Features

• W-type socket products do not provide electrical wires, which is convenient for the lamp assembly plant to directly plug in and connect, Save the connection cost of intermediate wiring bar

• patented detent design, strong wire locking and support removal of wrong wiring

• hexagon nut tool free assembly; No screw hole on socket surface

• combined use can reach IP66 level (with jl-208-ip66)

• no screw hole on the socket surface, providing higher waterproof performance

• the body is made of polybutylene terephthalate (PBT)

• contacts made of phosphor bronze

• the metal contact piece is made of nickel plated phosphor bronze and plated with gold according to ASTM B 522

Specifications
