JL-200X Photocontrol Receptacle NEMA Socket 3P Twist Lock
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-200X |
Product Details
Power Volt Range:
0~480VAC
Load Rating:
15 A
Lead Length:
6" Min
Lead:
AWG#12/14/16 AWG#18(non-UL)
Certifications:
ANSI C136.10-2010,RoHS,RU,CE,CB,UKCA
Highlight:
JL-200X NEMA Socket
,Receptacle NEMA Socket
,15A socket nema
Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union, MoneyGram, T/T
Product Description

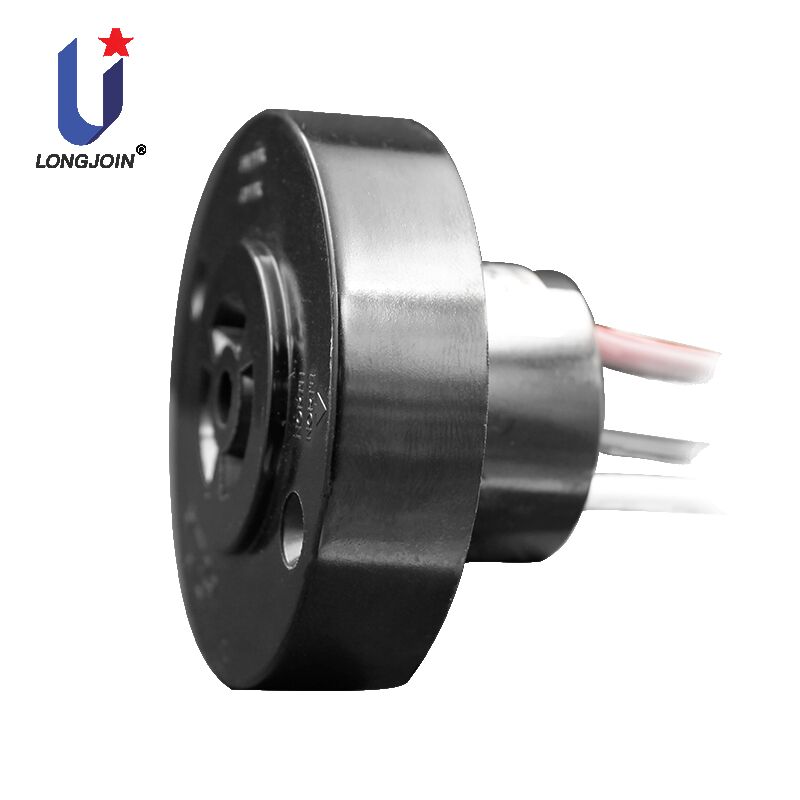

JL-200X Photocontrol Receptacle NEMA 3P twist-lock
Product Summary
All the JL-200X photocontrol receptacles were designed for the lanterns intended to accept a twist-lock photocontrol for power management.
Product size
Product Features
-
PBT material or bakelite material
- Silicone gasket for better waterproof
Specifications
|
Model No. |
JL-200X |
||
|
Power Volt Range |
0~480VAC |
||
|
Rated Frequency |
50/60Hz |
||
|
Load Rating |
15 A |
||
|
Ambient Temperature |
-40°C ~ +70°C |
||
|
Related Humidity |
96% |
||
|
Lead Length |
6" min |
||
|
Lead |
AWG#12/14/16 AWG#18(non-UL) |
||
|
Cable Line (IP65) |
- |
||
|
Certifications |
ANSI C136.10-2010(RS type only)
|
