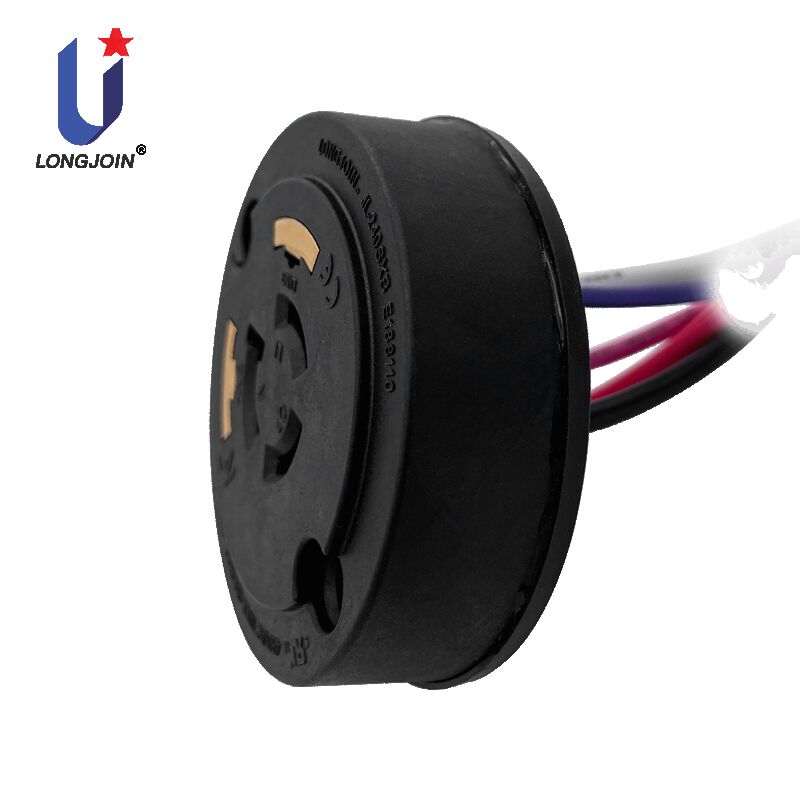

JL-240SXB NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-240SXB |
JL-240SXB NEMA Socket
,15A NEMA Socket
,480V 5 pin nema socket
JL-240SXB Fixed Twist-lock dimming receptacle 5P Ultra thin version
Product Summary
All the JL-240SXB photocontrol receptacle was designed for the lanterns those intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This product conforms newly published ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle.
This series offers 2 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers 2 wiring leads at rear side for signal connection.
Especially, this product does not occupy any space inside the lantern for those cases less internal space available.
Product size
Product Features
-
Glass-Fiber strongen PBT
-
Gilded Pads made from phophor bronze Nickel plated and gilded over 0.7um
-
Gold plating per ASTM B 488
-
Silicone gasket applied toflange
-
Shorter body design for slim fixtures
Specifications
|
Model No. |
JL-240SXB |
|
Applicable Volt Range |
0~480VAC |
|
Rated Frequency |
50/60Hz |
|
Load Rating |
15A
|
|
Signal Control |
0-30 VDC, 250 mA Max |
|
Lead |
16AWG/14AWG 6" min |
|
Ambient Temperature |
-40°C ~ +70°C |
|
Related Humidity |
96% |
|
Outdoor Wiring Cable |
● |
|
Certifications |
|
