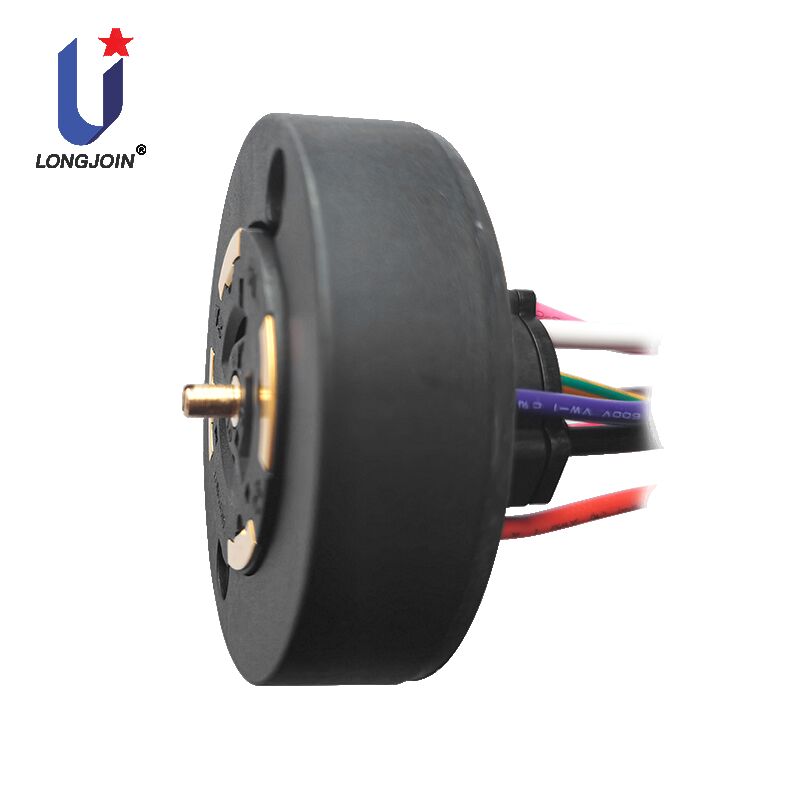

JL-250G Twist-lock Dimming receptacle 8P rotatable ANSI C136.10 receptacle to fit a twist-lock photocontrol

Product Summary

All the JL-250GXA series photocontrol receptacles were designed for the lanterns those intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This series conform newly published ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle.

This series offers 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers 4 wiring leads at rear side for signal connection.

In particular, the grounding terminal in the center of the socket works with the JL-250F**C* series to achieve common mode surge protection.

Product size

Product Features

• Body made from polybutylene terephthalate

• Contacts made from phosphor bronze

• Gold pad made from Nickel plated phosphor bronze with gold plating per ASTM B 488

• Silicone gasket offered

• center ground terminal, with JL-250F**C* series to achieve common mode surge protection.

• Loosen the screws to find the north, easy to install the optical controller (installation of the default pointing to the north), to avoid the decline of the optical controller photosensitive components to extend the service life

Specifications
