ZHAGA Controller Light Sensing + Microwave DALI2.0 Infrared Remote Control Roads Lawns
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-722A2H |

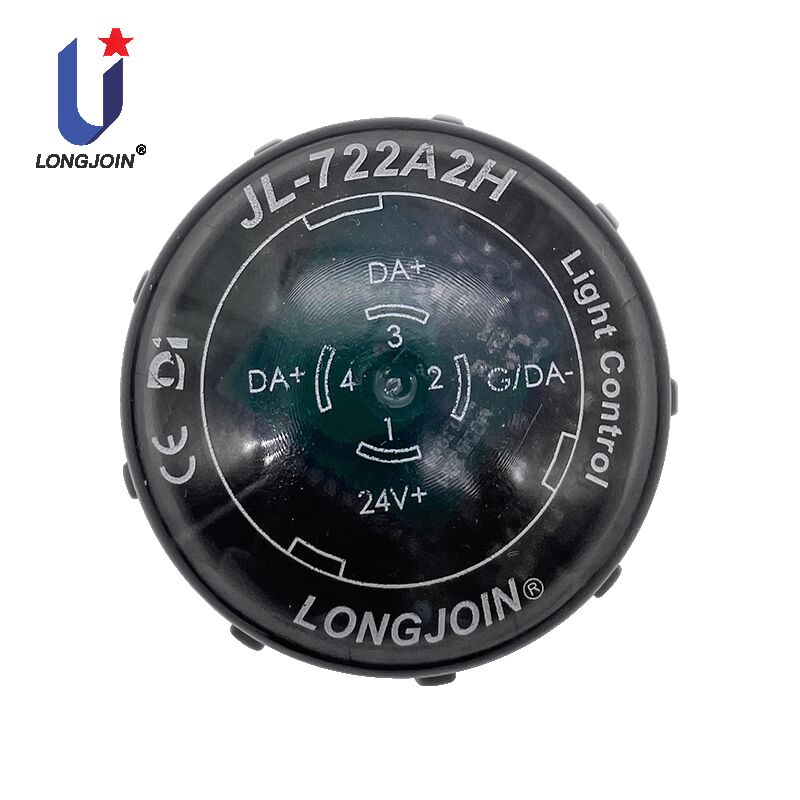

JL-722A2H ZHAGA Controller
,24V ZHAGA Controller
,RoHS zhaga node
JL-722A2H light-sensing + microwave,DALI2.0,infrared remote control roads, lawns, courtyards, parks, parking lots, factories, warehouses
Product Summary
The JL-722A2H light controller product is a smart latch type light controller developed based on the Zhaga Book-18 interface standard. It uses a combination of light sensing and microwave sensing sensors, can output DALI dimming signals, and supports infrared remote control for parameter configuration. This light controller is suitable for lighting scenarios such as roads, lawns, courtyards, parks, parking lots, factories, warehouses, etc.
The working logic of the product is that when the illumination is met, the lamp works at a slightly bright brightness and starts a countdown of the slightly bright duration. At this time, if a moving object is detected, the lamp becomes fully bright. When a moving object is detected and left, a countdown of the fully bright duration begins. After the countdown of the fully bright duration ends, it returns to the slightly bright brightness and starts a countdown of the slightly bright duration. When the countdown of the slightly bright duration ends or the illumination is met, the lamp is turned off.
Product size
Product Features
-
12-24VDC auxiliary source or DALI bus power supply, low power consumption
-
Zhaga Book-18 interface standard
-
DALI2.0
-
Dynamic adjustment of microwave frequency to avoid mutual interference during dense installation
-
Φ 50.4 * 35mm compact size, suitable for installation on various lighting fixtures
-
Light sensitivity+microwave, on-demand lighting, more energy-efficient
-
Visible light filtered photosensitive sensor
-
High performance microwave, with a hanging height of 15 meters and an induction radius of ≥ 10 meters
-
Infrared remote control
-
IP66
Specifications
|
Power supply |
AUX Power: Voltage:12~24VDC Current:12V/35mA；24V/25mA DALI Bus powered: current:30mA |
|
Power dissipation |
＜0.385W(12V)；＜0.55W(24V) The AUX or DALI bus supply power. |
|
Dimming |
DALI |
|
Sensors |
Light sensitivity+microwave |
|
Spectral range |
avelength: 800~1100nm |
|
Microwave frequency |
5.8GHz |
|
Maximum hanging height |
15 meters |
|
Induction radius |
≥10 meters |
|
Start-up time |
＜200mS |
|
Power on initialization |
By default, it remains turn on for 5s (gradient) when powered on, and then runs properly based on parameter Settings and environment conditions |
|
Sensitivity |
Default 80%, adjust through IR |
|
Hold time |
Default 30S, adjust through IR |
|
Stand-by dim level |
Default 0%, adjust through IR |
|
Stand-by period |
Default infinite, adjust through IR |
|
Turn on Illuminance |
Default 50lux, adjust through IR |
|
Turn off illuminance ∆ value |
Default ∆ 50lux, adjust through IR |
|
Turn off illuminance |
Turn on Illuminance + Turn off illuminance ∆ value |
|
Maximum power ratio |
Factory default 100%, adjust through IR |
|
Off → Stand-by dim time |
Depending on the drive's fade time parameter, the default is 0S |
|
Stand-by dim → 100% dim time |
|
|
100% dim → Stand-by dim time |
|
|
Stand-by dim → turn off time |
|
|
mechanical vibration |
IEC60068-2-6 |
|
Flammability Level |
UL94-V0 |
|
Operating Temperature |
-40 ℃~70 ℃ |
|
Storage Temperature |
-40 ℃~85 ℃ |
|
Operating Humidity |
5% RH~99% RH |
|
IP Level |
IP66 |
|
Certifications |
CE,ZHAGA,D4i,DALI2.0,ROHS |
FAQs
A: It is an intelligent lighting controller compliant with ZHAGA standards, integrating light sensing and microwave detection, supporting DALI 2.0 dimming and infrared remote control, suitable for roads and lawns.
A: ZHAGA standard ensures high compatibility, standardized connection, waterproof and reliable performance, enabling easy installation and replacement on LED street lights and outdoor luminaires.
A: Light sensing controls lighting based on ambient brightness, while microwave detects moving objects; the dual system achieves high-precision automatic control and effective energy saving.
A: DALI 2.0 supports digital dimming, bidirectional communication, stable signal transmission, precise brightness adjustment and real-time status feedback for intelligent lighting systems.
A: It is widely used in road lighting, lawn lighting, garden lights, courtyard lighting and other outdoor public lighting scenarios.
