Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
|
Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-422C(R) |
Product Details
Rated Voltage:
120~277VAC
Available Voltage Range:
105~305VAC
Power Consumption:
1W Max.
Fail Mode:
Fail-Off
Certifications:
RoHS,CE,UL
Real-world Scenarios:
Residential Street Lighting
Highlight:
Micro digital photocontrol
,Miniature digital photocontrol
,305V digital photo control
Payment & Shipping Terms
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union,MoneyGram,T/T
Product Description
Micro Advanced Version Miniature Direct Wire In Digital Photocontrol Adjustable Lux Threshold

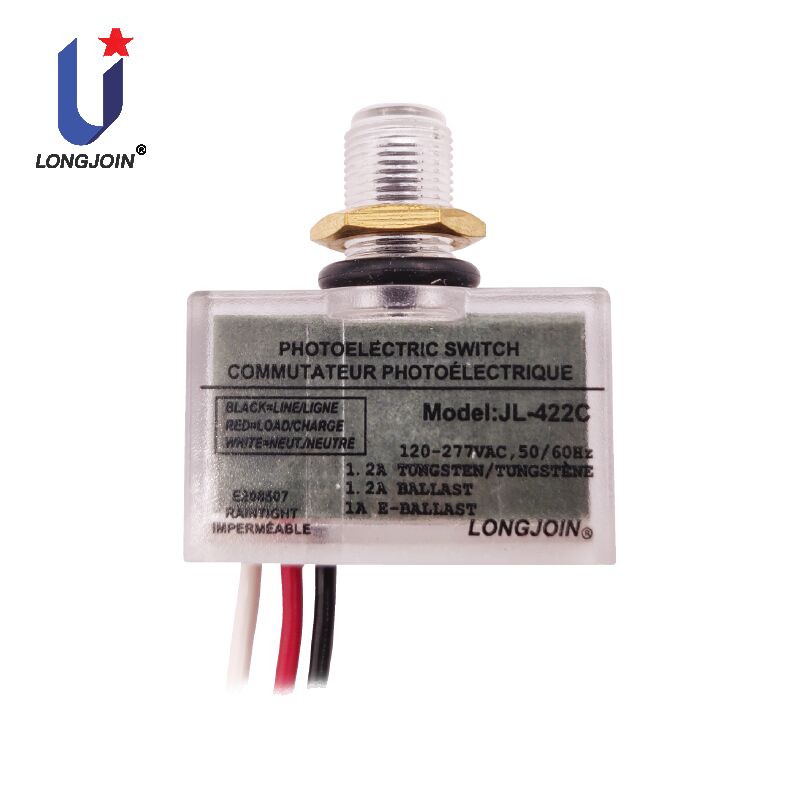

JL-422C Micro Advanced Version, Miniature Direct Wire-In Digital Photocontrol
The photocontrol JL-422C(R) is designed to automatically control passage lighting and doorway lighting based on ambient lighting levels. Featuring electronic circuits with quick response and 3-10 second time delay for easy testing, its miniature profile supports most smaller fixtures. The preset time delay prevents redundant operation due to spotlights or lightning during nighttime.
This product is UL LLC listed and complies with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A. The R version provides a separated sensor assembly.
Product Size
Product Features
- UL773A direct wire-in
- 120~277V Multi-Volts
- IR-Filtered Phototransistor Sensor
- IP65 protection
- Miniature size
- Interference lighting filtering
- Zero crossing function
Specifications
| Model No. | JL-422C | JL-422CR |
|---|---|---|
| Rated Voltage | 120~277VAC | |
| Available Voltage Range | 105~305VAC | |
| Rated Frequency | 50/60Hz | |
| Rated Loading | 1.2A Tungsten / Ballast 1A e-Ballast | |
| Power Consumption | 1W Max. | |
| On Levels | 16 Lx(± 5) | |
| Off Levels | Initial: 24 Lx(±5) *Once reflected light(△)is detected:Δ+24±5 Lx | |
| Fail Mode | Fail-Off | |
| Delayed | 5-10S(Customizable) | |
| Reflected light compensation upper limit | 1800Lx | |
| Ambient Temperature | -40℃ ~ +70℃ | |
| Related Humidity | 96% | |
| Leads Length | AWG #18, AWM1430 | |
| Certifications | |
|
Frequently Asked Questions
What is a micro advanced version miniature direct wire in digital photocontrol with adjustable lux threshold?
It is a high-performance miniature light control sensor featuring a micro advanced digital design, direct wire installation, and adjustable lux threshold, which enables precise and flexible automatic on/off control for various lighting fixtures.
What does adjustable lux threshold mean in this digital photocontrol?
Adjustable lux threshold allows users to set the exact ambient light level at which the photocontrol turns lights on or off, providing greater flexibility and accuracy compared to fixed-sensitivity photocontrols.
What are the advantages of this miniature micro advanced digital photocontrol?
This advanced version offers compact size for easy installation, stable digital control, high sensitivity, long service life, and adjustable light detection, making it ideal for small-space lighting applications.
Is this micro advanced photocontrol suitable for direct wire installation?
Yes, it supports direct wire-in connection, allowing simple and secure hardwiring into streetlights, wall packs, floodlights and other outdoor or indoor lighting systems without extra adapters.
