Direct Wire In Electronic Photocontrol Doorway Lighting UL Certification

Place of Origin	China
Brand Name	LongJoin
Model Number	JL-403C(M）

Product Details

Rated Voltage:

120~277VAC

Available Voltage Range:

105~305VAC

Power Consumption:

1.8W@120VAC

Failure Mode:

Fail-Off

Certifications:

RoHS,UL,CE

Real-world Scenarios:

Residential Street Lighting

Highlight:

JL-403C electronic photocontrol

Doorway Lighting electronic photocontrol

UL electronic photo control

Payment & Shipping Terms

Price

negotiable

Packaging Details

Different packaging methods are adopted according to different modes of transport.

Payment Terms

Western Union,MoneyGram,T/T

Product Description

JL-403C Direct Wire-In Electronic Photocontrol doorway lighting UL certification

Product Summary

The photocontrol JL-403C is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

This product is designed with electronic circuits. Its quicker response with time delay of 3-10 seconds offers easy-to-test feature. Especially, model JL-403C provides a wide voltage range for customer applications under almost power supplies.

Further, a preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time

This product has been listed by UL LLC and is comply with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.

Product size

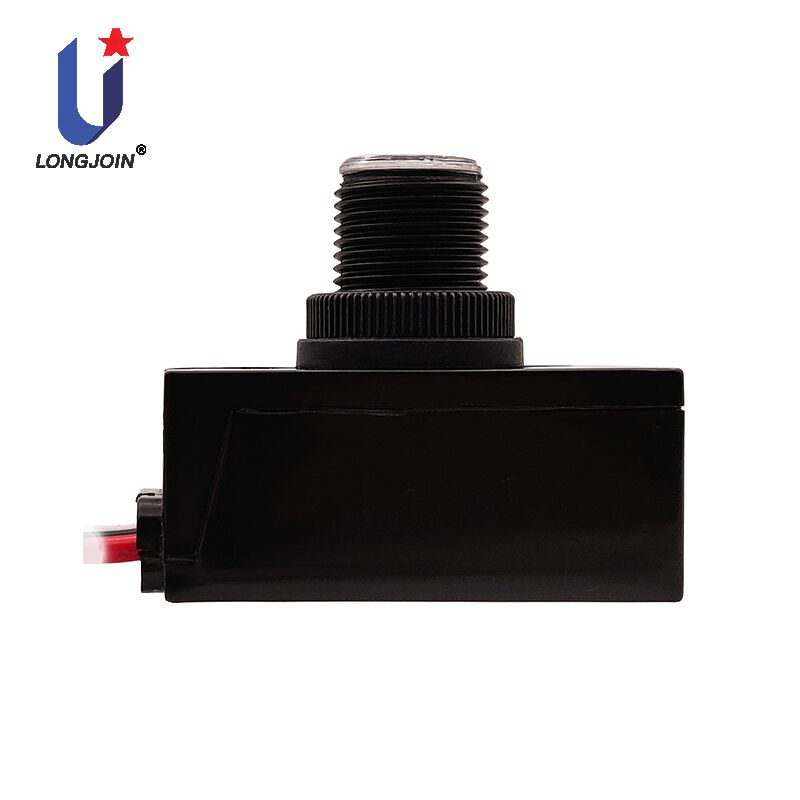

Direct Wire In Electronic Photocontrol Doorway Lighting UL Certification 0

Product Features

3~10s Time-delay preventing redundant turning-off caused by headlights or lightning

Specifications

Model No.	JL-403C	JL-403CM	JL-403CW
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	500W Tungsten, 850VA Ballast 5A e-Ballast
Power Consumption	1.8W@120VAC
Operate Levels	10~20Lx Turn-On / 30~80Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads	AWG #18, AWM 1015 4" min
Failure Mode	Fail-Off
Rainproof Cap	Optional
Certifications

FAQs

Q1:What is a direct wire in electronic photocontrol for doorway lighting with UL certification?

A:It is an electronic light control device designed for direct wire installation, specially used for doorway lighting, and has obtained UL safety certification for reliable and compliant operation.

Q2:Why is UL certification important for this direct wire in photocontrol?

A:UL certification ensures the product meets strict North American safety standards, including electrical safety, temperature resistance and reliability, making it safe for residential and commercial use.

Q3:How is this electronic photocontrol installed for doorway lighting?

A:It uses a direct wire-in design for simple hardwiring into doorway lighting fixtures, without additional adapters, enabling fast and stable installation.

Q4:What are the main functions of this UL certified photocontrol for doorway lighting?

A:It automatically controls lights on at dusk and off at dawn, improving safety for doorways, saving energy, and requiring no manual operation.

Q5:In which places is this direct wire photocontrol mainly applied?

A:It is mainly used in residential and commercial doorway lighting, porch lights, corridor lights and entrance lighting that requires safe and automatic control.
