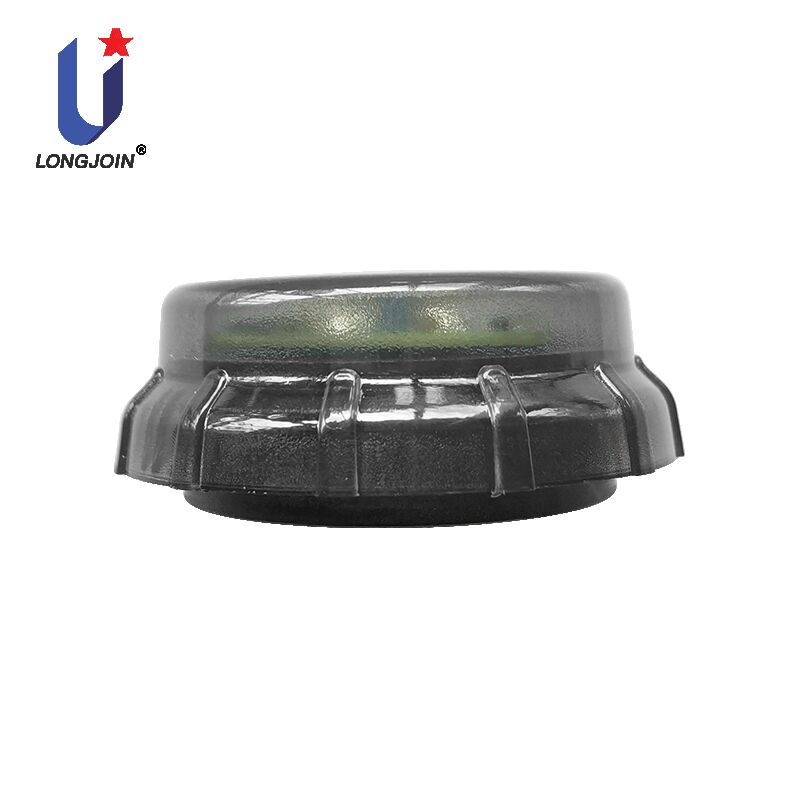

JL-771A light-sensing,American Z10 interface turn on, OD gate output roads, lawns, courtyards, and parks
Product Summary
JL-771A is an ultra-low-cost electronic rotary lock light controller developed based on the Z10 interface standard. It can output 0V (Turn off) or suspended dimming signal (turn on, OD gate output).
The light controller is suitable for lighting scenes such as roads, lawns, courtyards, and parks.
Product size
Product Features
-
Z10 interface standard
-
ultra low cost
-
compact size, suitable for installation to various lamps
-
Support the installation of luminous surfaces for lighting fixtures
-
1.5mA ultra low working current
-
anti false triggering design of interference light source
-
no load power consumption ≤ 0.12W
-
environmental illumination ratio of switch action: 1:4
-
power on: full on by default, 5S self-test
-
protection grade: up to IP66
Specifications
|
Model |
JL-771A |
|
Power Supply |
Rated voltage:12~24VDC Rated current:3mA |
|
Power Consumption |
Day:12~24V/1.5mA Night:12~24V/1.2mA |
|
Dimming |
0/10V |
|
Dimming interface |
0V or suspended (OD gate output) |
|
Spectral Acquisition Range |
800~1100nm |
|
Turn on Illuminance |
16Lux(±10) |
|
Turn off Illuminance |
64Lux(±10) |
|
Turn on delay |
5S |
|
Turn off delay |
15S |
|
Electrostatic Immunity |
Standard: IEC61000-4-2 Contact Discharge: ±8kV,CLASS A Air Discharge: ±15kV,CLASS A |
|
Mechanical Vibration |
IEC60068-2-6 |
|
Flammability Level |
UL94-V0 |
|
Operating Temperature |
-40℃~70℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
5%RH~99%RH |
|
IP Level |
IP66 |
|
Life |
≥ 8000 h |
|
Certifications |
|
FAQs
A: It is a light-sensitive lighting controller designed with the standard American Z10 mechanical and electrical interface, using open-drain (OD) gate output, mainly used for automatic control of outdoor lighting.
A: It automatically detects ambient light intensity, realizes dusk-on and dawn-off control, and provides maintenance-free automatic lighting management.
A: The Z10 interface is a standard American outdoor lighting interface, featuring high compatibility, stable waterproof connection, plug-and-play, and easy installation and replacement.
A: OD (Open-Drain) gate output provides stable switching control, strong adaptability, good compatibility with various LED drivers and control systems, and reliable long-term operation.
A: It is mainly used in roads, lawns, courtyards, parks, residential areas and other outdoor public lighting places.
