JL-722A3 light-sensing + microwave,DALI2.0 roads,lawns, courtyards, parks, car park and construction site
Product Summary

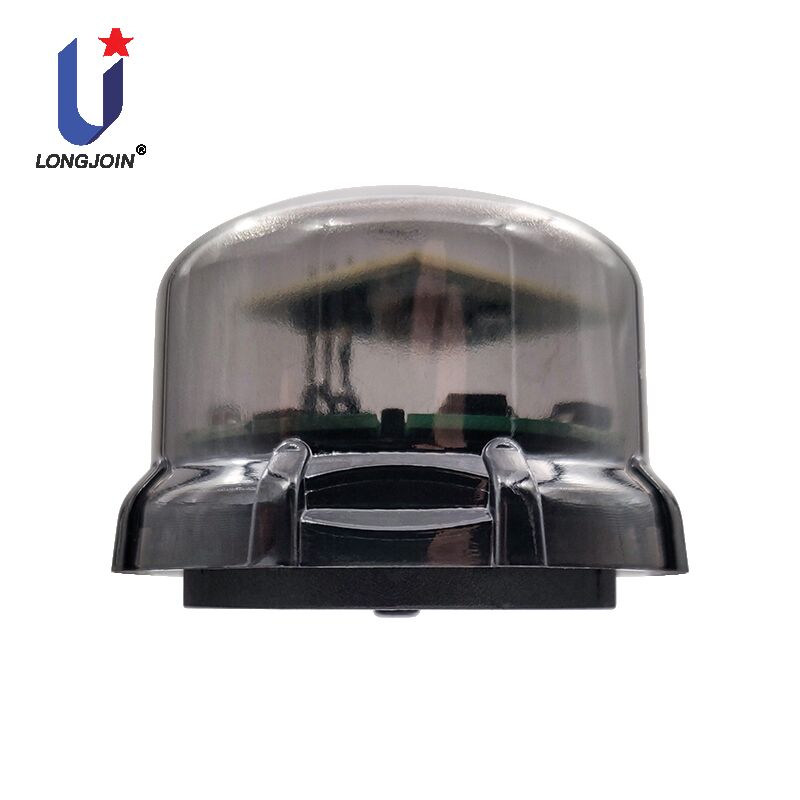

JL-722A3 light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard.It adopts light sensing and microwave mobile combined sensor, which can output DALI2.0 dimming signal.
The light controller is suitable for lighting scenes such as roads,lawns, courtyards, parks, car park and construction site.
Product size
Product Features
-
12 to 24 VDC power supply, low power consumption
-
ZHAGA BOOK18 interface standard
-
Φ50.4*35mm size, suitable for installation in most lamps
-
0~10V dimming interface
-
Support WIFI&BLE dual-mode configuration and control
-
Support third-party voice control, such as Alexa, Google Assistant, SmartThings, IFTTT, Xiaodu, Tencent Xiaowei, Dingdong, etc.
-
IP66
Specifications
|
Model |
JL-722A3 |
|
Power Supply |
Rated voltage:12~24VDC Rated current:12V/45mA；24V/30mA |
|
Power Consumption |
12V/3.5mA；24V/3.5mA |
|
Dimming |
DALI2.0 |
|
Spectral Acquisition Range |
350~1100nm,Peak wavelength 550nm |
|
Turn on Illuminance |
50Lux(±10) |
|
Turn off Illuminance |
Reflected light + 40Lux(±10)after each turn on Lower limit:50+40Lux(±10) ； Upper limit:6000Lux(±100) |
|
Reflected light compensation upper limit |
6000Lux(±100) |
|
Initialization |
After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode *1 |
|
Turn on delay |
5S |
|
Turn off delay |
60S |
|
0%~20%；20%~100% Brightness change time |
1S |
|
100%~20%；X%~0% Brightness change time |
8S |
|
100% brightness hold time after microwave trigger |
30s |
|
Stand-by Dimming |
20% |
|
Maximum hanging height of microwave |
15M |
|
Sensing radius |
4-8M (by 15m hanging height) |
|
Microwave induction angle |
92° |
|
Microwave anti-false trigger |
Can prevent wind, rain, leaves, and small animals |
|
Mechanical Vibration |
IEC60068-2-6 |
|
Flammability Level |
UL94-V0 |
|
Operating Temperature |
-40℃~70℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
5%RH~99%RH |
|
IP Level |
IP66 |
|
Certifications |
|
FAQs
A: It is an integrated intelligent lighting controller that combines light sensing and microwave detection, supports DALI2.0 digital dimming, and is used for automatic and energy-saving control of outdoor lighting.
A: Light sensing controls lighting according to ambient brightness, while microwave detects moving people or vehicles. The dual-sensor linkage realizes high-precision automatic control and significant energy saving.
A: DALI2.0 provides stable digital dimming, two-way communication, addressable control, high anti-interference, and precise brightness adjustment for professional lighting systems.
A: It automatically turns off or dims lights when no one is present and brightness is sufficient, avoiding long-term full-bright operation and greatly reducing power consumption.
A: It is widely used in roads, lawns, courtyards, parks, residential areas and other outdoor public lighting places.
