Light Sensing 0-10V Roads Lawns Courtyards Parks Car Park Construction Site
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-712A3 |

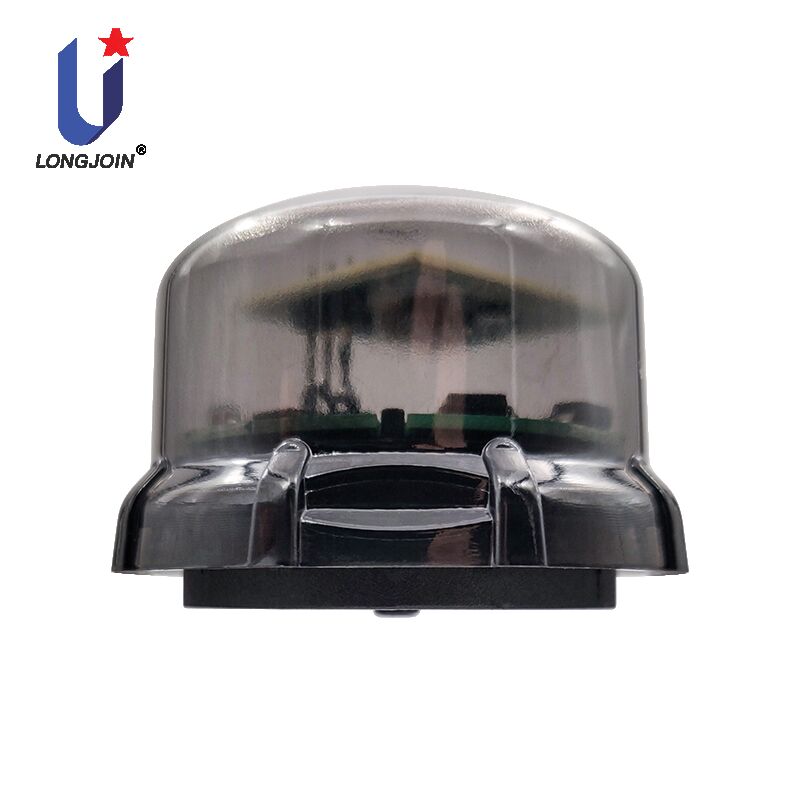

JL-712A3 ZHAGA Controller
,Construction Site ZHAGA Controller
,Park zhaga book 18 socket
JL-712A3 light-sensing,0~10V roads,lawns, courtyards, parks, car park and construction site.
Product Summary
JL-712A3 light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard.It adopts light sensing and microwave mobile combined
sensor, which can output 0~10V dimming signal.
The light controller is suitable for lighting scenes such as roads,lawns, courtyards, parks, car park and construction site.
Product size
Product Features
-
light sense + microwave, lighting on demand, more humanized and power saving
-
microwave anti false triggering, indoor and outdoor
-
automatic dynamic microwave frequency adjustment to avoid mutual interference in dense installation
-
comply with zhaga book18 interface standard
-
DC power supply, ultra low power consumption
-
support 0 ~ 10V dimming mode
-
compact size, suitable for installation to various lamps
-
anti false triggering design of interference light source
-
reflected light compensation design of lamps
-
waterproof protection grade up to IP66
Specifications
|
Model |
JL-712A3 |
|
Power Supply |
Rated voltage:12~24VDC Rated current:12V/45mA；24V/30mA |
|
Power Consumption |
12V/3.5mA；24V/3.5mA |
|
Dimming |
0/10V |
|
Spectral Acquisition Range |
350~1100nm,Peak wavelength 550nm |
|
Dimming interface |
Type:0~10V ； Accuracy:±2% ； Drive current:40mA(Typical) |
|
Turn on Illuminance |
50Lux(±10) |
|
Turn off Illuminance |
Reflected light + 40Lux(±10)after each turn on Lower limit:50+40Lux(±10) ； Upper limit:6000Lux(±100) |
|
Reflected light compensation upper limit |
6000Lux(±100) |
|
Initialization |
After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode *1 |
|
Turn on delay |
5S |
|
Turn off delay |
60S |
|
0%~20%；20%~100% Brightness change time |
1S |
|
100%~20%；X%~0% Brightness change time |
8S |
|
100% brightness hold time after microwave trigger |
30s |
|
Stand-by Dimming |
20% |
|
Maximum hanging height of microwave |
15M |
|
Sensing radius |
4-8M (by 15m hanging height) |
|
Microwave induction angle |
92° |
|
Microwave anti-false trigger |
Can prevent wind, rain, leaves, and small animals |
|
Mechanical Vibration |
IEC60068-2-6 |
|
Flammability Level |
UL94-V0 |
|
Operating Temperature |
-40℃~70℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
5%RH~99%RH |
|
IP Level |
IP66 |
|
Certifications |
|
FAQs
A: It is an intelligent light-sensitive controller that supports 0-10V dimming, used to automatically control lighting based on ambient brightness in various outdoor and public areas.
A: It automatically detects ambient light intensity, turns lights on at dusk and off at dawn, achieving fully automatic control without manual operation.
A: It provides smooth stepless brightness adjustment, matches mainstream LED drivers, improves energy efficiency, and extends lamp service life.
A: It is widely used in roads, lawns, courtyards, parks, car parks, construction sites and other outdoor or temporary engineering lighting places.
A: It simplifies wiring, improves energy saving effect, ensures stable operation, and reduces manual maintenance and management costs.
