Product Summary

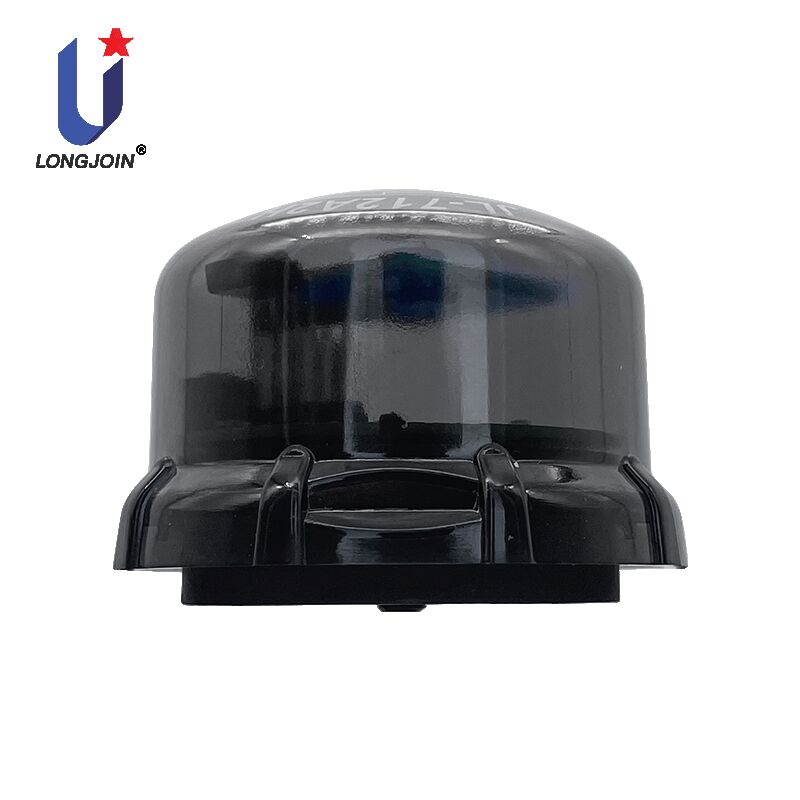

The JL-712A2H light controller product is a smart latch type light controller developed based on the Zhaga Book-18 interface standard. It uses a combination of light sensing and microwave sensing sensors, can output 0-10V dimming signals, and supports infrared remote control for parameter configuration. This light controller is suitable for lighting scenarios such as roads, lawns, courtyards, parks, parking lots, factories, warehouses, etc.
The working logic of the product is that when the illumination is met, the lamp works at a slightly bright brightness and starts a countdown of the slightly bright duration. At this time, if a moving object is detected, the lamp becomes fully bright. When a moving object is detected and left, a countdown of the fully bright duration begins. After the countdown of the fully bright duration ends, it returns to the slightly bright brightness and starts a countdown of the slightly bright duration. When the countdown of the slightly bright duration ends or the illumination is met, the lamp is turned off.
Product size
Product Features
-
12-24VDC power supply, low power consumption
-
Zhaga Book-18 interface standard
-
0-10V dimming mode
-
Dynamic adjustment of microwave frequency to avoid mutual interference during dense installation
-
Φ 50.4 * 35mm compact size, suitable for installation on various lighting fixtures
-
Light sensitivity+microwave, on-demand lighting, more energy-efficient
-
Visible light filtered photosensitive sensor
-
High performance microwave, with a hanging height of 15 meters and an induction radius of ≥ 10 meters
-
Infrared remote control
-
IP66
Specifications
|
Power supply |
Voltage: 12-24VDC |
|
Power dissipation |
＜0.385W(12V)；＜0.55W(24V) |
|
Dimming |
0-10V |
|
Sensors |
Light sensitivity+microwave |
|
Spectral range |
avelength: 800~1100nm |
|
Microwave frequency |
5.8GHz |
|
Maximum hanging height |
15 meters |
|
Induction radius |
≥10 meters |
|
Power on initialization |
By default, it remains turn on for 5s (gradient) when powered on, and then runs properly based on parameter Settings and environment conditions |
|
Sensitivity |
Default 80%, adjust through IR |
|
Hold time |
Default 30S, adjust through IR |
|
Stand-by dim level |
Default 0%, adjust through IR |
|
Stand-by period |
Default infinite, adjust through IR |
|
Turn on Illuminance |
Default 50lux, adjust through IR |
|
Turn off illuminance ∆ value |
Default ∆ 50lux, adjust through IR |
|
Turn off illuminance |
Turn on Illuminance + Turn off illuminance ∆ value |
|
Maximum power ratio |
Factory default 100%, adjust through IR |
|
Off → Stand-by dim time |
0.1S |
|
Stand-by dim → 100% dim time |
0.1S When the stand-by dim level is 0%, it lasts for 0.2s, which is equivalent Off → 100% dim time |
|
100% dim → Stand-by dim time |
8S When the stand-by dim level is 0%, it lasts for 9s, which is equivalent 100% dim → turn off time |
|
Stand-by dim → turn off time |
1S |
|
mechanical vibration |
IEC60068-2-6 |
|
Flammability Level |
UL94-V0 |
|
Operating Temperature |
-40 ℃~70 ℃ |
|
Storage Temperature |
-40 ℃~85 ℃ |
|
Operating Humidity |
5% RH~99% RH |
|
IP Level |
IP66 |
|
Certifications |
CE, ZHAGA, ROHS |
FAQs
A: It is an outdoor lighting controller with light sensing, 0-10V dimming and infrared remote adjustment, suitable for automatic and convenient lighting control.
A: It automatically detects ambient brightness, turns lights on at dusk and off at dawn, realizing maintenance-free automatic control and energy saving.
A: 0-10V provides stable, flicker-free stepless dimming, matching most LED drivers to achieve flexible brightness control.
A: Infrared remote supports on-site adjustment of light sensitivity, dimming level and working mode without disassembly, making operation simple and fast.
A: It is widely used in roads, lawns, courtyards, parks, residential quarters and other outdoor public lighting places.
