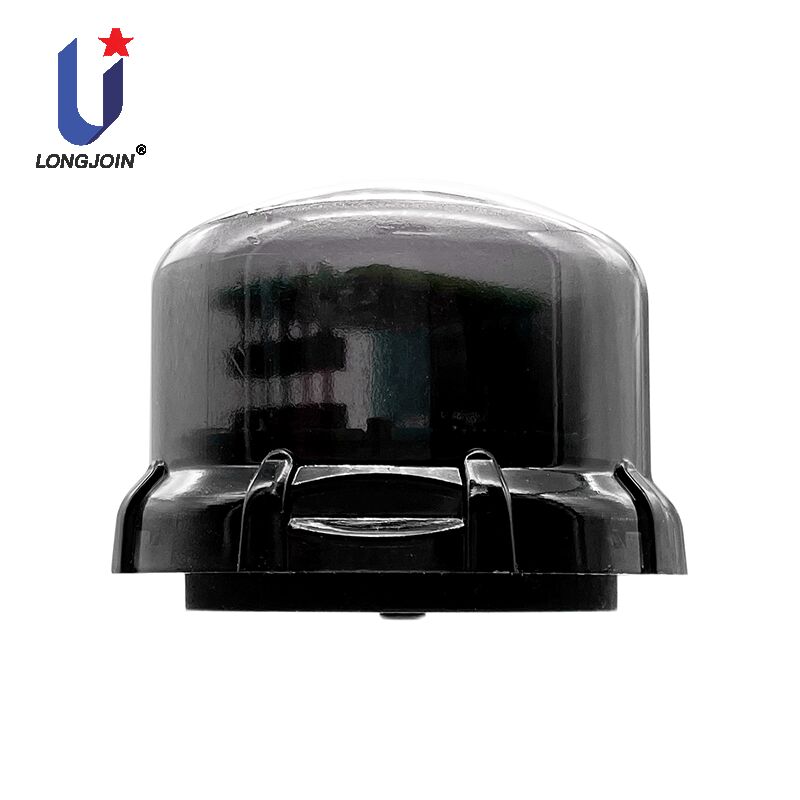

Ultra-low Power Consumption Light Sensing American Z10 Interface Light Sensing + Microwave Mobile
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-772B2 |
jl-772b2 light sensing
,jl-772b2 zhaga controller
JL-772B2 light-sensing,American Z10 interface ight sensing + microwave mobile
Product Summary
JL-772B2 is an intelligent interlocking controller developed based on standards similar to Z10 interface, using light sensing + microwave mobile combination sensor, can output 0~10V dimming signal, at the same time equipped with Bluetooth mesh communication network, can be controlled and configured through APP. The lamp controller is suitable for roads, lawns, courtyards, parks, parking lots, industrial mines and other lighting scenes. The special envoy is the UFO lamp with Z10 socket.
Product size
Product Features
-
12 to 24 VDC power supply, low power consumption
-
Z10 interface
-
Automatic dynamic microwave frequency adjustment to avoid mutual interference in dense installation
-
Φ50*36mm size, suitable for installation in most lamps
-
0~10V dimming interface
-
Light sensor + microwave sensor, on-demand lighting, more power saving
-
15m hanging height
-
BLE MESH
-
Support third-party voice control, such as Alexa, Google Assistant, SmartThings, IFTTT, Xiaodu, Tencent Xiaowei, Dingdong, etc.
-
IP66
Specifications
|
Model |
JL-772B2 |
|
Power Supply |
Rated voltage:12~24VDC Rated current:40mA |
|
Power Consumption |
＜0.6W |
|
Sensor Type |
Light-sensitive + Microwave |
|
Spectral Acquisition Range |
860~1100nm,Peak wavelength 960nm |
|
Maximum hanging height of microwave |
15M |
|
Sensing radius |
>10m (by 15m hanging height) |
|
Anti-jump delay |
3S (minimum interval time for turning on the light after the light is off) |
|
Hold time |
Default 30S,APP adjustable |
|
Stand-By brightness |
Default 0%,APP adjustable |
|
Stand-By time |
Default 5S,APP adjustable |
|
Dimming interface |
Type:0~10V Accuracy:±2% |
|
Turn on Illuminance |
APP adjustable, divided into 5 levels: Daytime: any illuminance Dusk Evening Night Late at night |
|
Energy saving strategy |
custom |
|
Mechanical Vibration |
IEC60068-2-6 |
|
Flammability Level |
UL94-V0 |
|
Operating Temperature |
-40℃~70℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
5%RH~99%RH |
|
IP Level |
IP66 |
|
Certifications |
|
FAQs
A: It is an intelligent motion sensor controller equipped with both light sensing and microwave detection, adopting the standard American Z10 interface, used for automatic motion-activated lighting control.
A: The Z10 interface follows the North American standard for outdoor lighting, featuring high compatibility, plug-and-play installation, waterproof structure, and easy replacement on street lights and fixtures.
A: Light sensing ensures the controller only works at night or in low light, while microwave detects moving people or vehicles to trigger lighting automatically, achieving high energy efficiency.
A: Microwave radar can sensitively detect moving objects, automatically turn on the light when someone passes by, and delay turning off after people leave, realizing intelligent motion control.
A: It is widely used in roads, lawns, courtyards, parking lots, residential areas and other outdoor lighting places requiring automatic motion control.
