Light Sensing + Microwave PWM Output PWM Dimming Signal Roads Lawns Courtyards
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-732A3 |
roads light sensing
,roads zhaga controller
,lawns light sensing

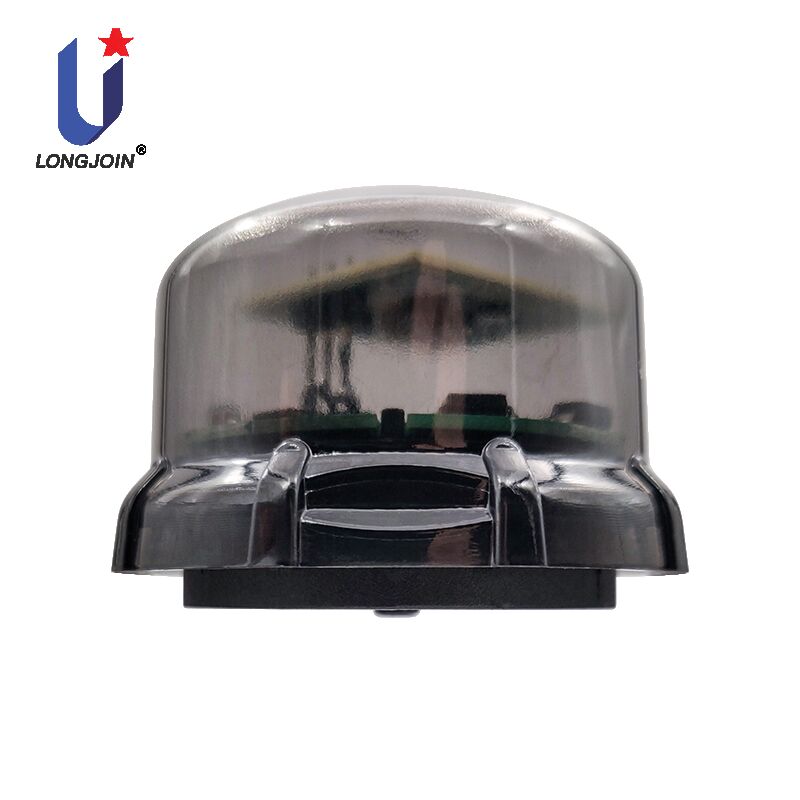

JL-732A3 light-sensing + microwave PWM output PWM dimming signal roads,lawns, courtyards, parks, car park
Product Summary
JL-732A3 light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard.It adopts light sensing and microwave mobile combined
sensor, which can output PWM dimming signal.
The light controller is suitable for lighting scenes such as roads,lawns, courtyards, parks, car park and construction site.
Product size
Product Features
-
12 to 24 VDC power supply, low power consumption
-
ZHAGA BOOK18 interface standard
-
Φ50.4*35mm size, suitable for installation in most lamps
-
0~10V dimming interface
-
Support WIFI&BLE dual-mode configuration and control
-
Support third-party voice control, such as Alexa, Google Assistant, SmartThings, IFTTT, Xiaodu, Tencent Xiaowei, Dingdong, etc.
-
IP66
Specifications
|
Model |
JL-732A3 |
|
Power Supply |
Rated voltage:12~24VDC Rated current:12V/45mA；24V/30mA |
|
Power Consumption |
12V/3.5mA；24V/3.5mA |
|
Spectral Acquisition Range |
350~1100nm,Peak wavelength 550nm |
|
Dimming interface |
Type:PWM ； |
|
Turn on Illuminance |
50Lux(±10) |
|
Turn off Illuminance |
Reflected light + 40Lux(±10)after each turn on Lower limit:50+40Lux(±10) ； Upper limit:6000Lux(±100) |
|
Reflected light compensation upper limit |
6000Lux(±100) |
|
Initialization |
After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode *1 |
|
Turn on delay |
5S |
|
Turn off delay |
60S |
|
0%~20%；20%~100% Brightness change time |
1S |
|
100%~20%；X%~0% Brightness change time |
8S |
|
100% brightness hold time after microwave trigger |
30s |
|
Stand-by Dimming |
20% |
|
Maximum hanging height of microwave |
15M |
|
Sensing radius |
4-8M (by 15m hanging height) |
|
Microwave induction angle |
92° |
|
Microwave anti-false trigger |
Can prevent wind, rain, leaves, and small animals |
|
Mechanical Vibration |
IEC60068-2-6 |
|
Flammability Level |
UL94-V0 |
|
Operating Temperature |
-40℃~70℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
5%RH~99%RH |
|
IP Level |
IP66 |
|
Certifications |
|
FAQs
A: It is an intelligent sensor controller that integrates light sensing and microwave detection, uses PWM as the dimming signal, and realizes automatic energy-saving control for outdoor lighting.
A: Light sensing controls operation according to ambient brightness, while microwave detects moving people or vehicles. The dual-sensor linkage achieves high-precision automatic dimming and efficient energy saving.
A: PWM (Pulse Width Modulation) dimming offers high precision, stable brightness adjustment, fast response, and excellent compatibility with most LED drivers, ensuring flicker-free dimming.
A: It automatically dims or switches off lights when no one is present or under sufficient ambient light, avoiding unnecessary lighting and greatly reducing power consumption.
A: It is widely used in roads, lawns, courtyards, parks, residential areas and other outdoor public lighting places.
