Light Sensing + Microwave DALI2.0 Casambi Roads Lawns Courtyards Parking Lots
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-722B2A2 |
jl-722b2a2 light sensing
,jl-722b2a2 zhaga controller
,roads light sensing
JL-722B2A2 light-sensing + microwave,DALI2.0,Casambi roads, lawns, courtyards, parks, parking lots, factories, warehouses,
Product Summary

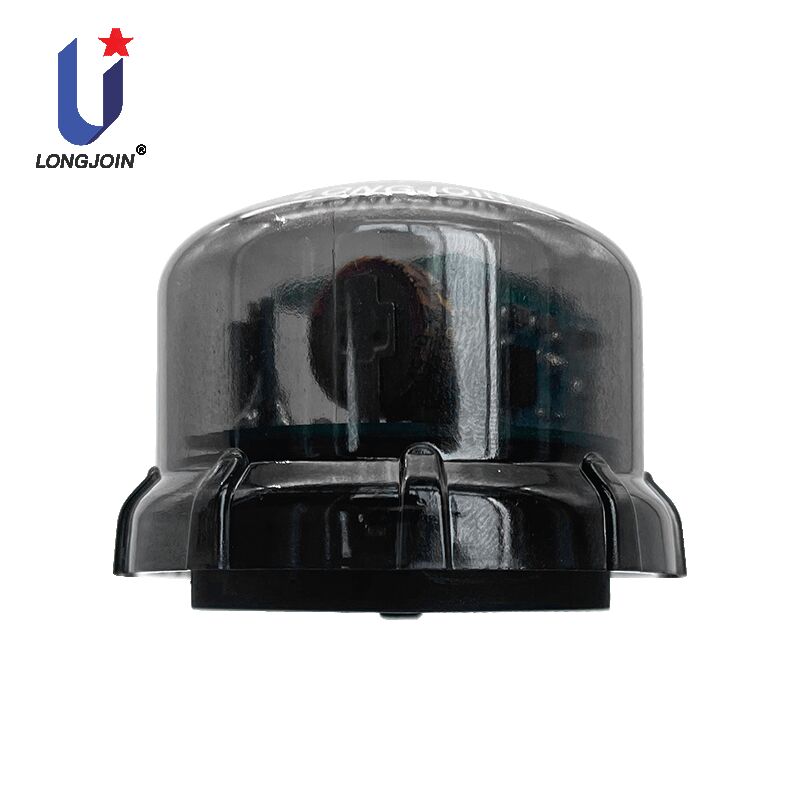

The JL-722B2A2 light controller product is a smart latch type light controller developed based on the Zhaga Book-18 interface standard. It uses a combination of light sensing and microwave sensing sensors, can output DALI dimming signals, and support Casambi Bluetooth mesh communication network. It can be controlled by Bluetooth near field, or be controlled remotely by Bluetooth gateway.You can configure parameters and scenarios using the Casambi APP
. This light controller is suitable for lighting scenarios such as roads, lawns, courtyards, parks, parking lots, factories, warehouses, etc.
Product size
Product Features
-
12-24VDC auxiliary source or DALI bus power supply, low power consumption
-
Zhaga Book-18 interface standard
-
DALI dimming mode
-
Dynamic adjustment of microwave frequency to avoid mutual interference during dense installation
-
Φ 50.4 * 35mm compact size, suitable for installation on various lighting fixtures
-
Light sensitivity+microwave, on-demand lighting, more energy-efficient
-
Visible light filtered photosensitive sensor
-
High performance microwave, with a hanging height of 15 meters and an induction radius of ≥ 10 meters
-
CASAMBI BLE MESH
-
IP66
Specifications
|
Power supply |
AUX Power: Voltage:12~24VDC Current:12V/35mA；24V/25mA DALI Bus powered: current:30mA |
|
Power dissipation |
＜0.385W(12V)；＜0.55W(24V) |
|
Dimming |
DALI |
|
Sensors |
Light sensitivity+microwave |
|
Spectral range |
800~1100nm |
|
Microwave frequency |
5.8GHz |
|
Maximum hanging height |
15 meters |
|
Induction radius |
≥10 meters |
|
Start-up time |
＜200mS |
|
Sensitivity |
Default 80%, adjust through APP |
|
Scene |
Custom scenes can be created and edited through the APP |
|
mechanical vibration |
IEC60068-2-6 |
|
Flammability Level |
UL94-V0 |
|
Operating Temperature |
-40 ℃~70 ℃ |
|
Storage Temperature |
-40 ℃~85 ℃ |
|
Operating Humidity |
5% RH~99% RH |
|
IP Level |
IP66 |
|
Certifications |
CE,ZHAGA,D4i,DALI2.0,ROHS |
FAQs
A: It is an intelligent lighting controller that integrates light sensing and microwave detection, supports DALI2.0 dimming and Casambi wireless control, used for intelligent outdoor lighting management.
A: Light sensing judges ambient brightness, microwave detects moving objects; dual-sensor linkage realizes automatic dimming and high-efficiency energy saving for outdoor lighting.
A: DALI2.0 supports high-precision digital dimming, two-way communication, stable signal transmission and reliable single-lamp control for professional lighting systems.
A: Casambi enables Bluetooth mesh networking, supporting APP remote control, scene setting, group dimming and convenient on-site commissioning without extra wiring.
A: It is widely used in roads, lawns, courtyards, parks, parking lots and other outdoor public lighting places.
